Introducing the TD1, 2, 3 Series
Melt Pressure Transducers.

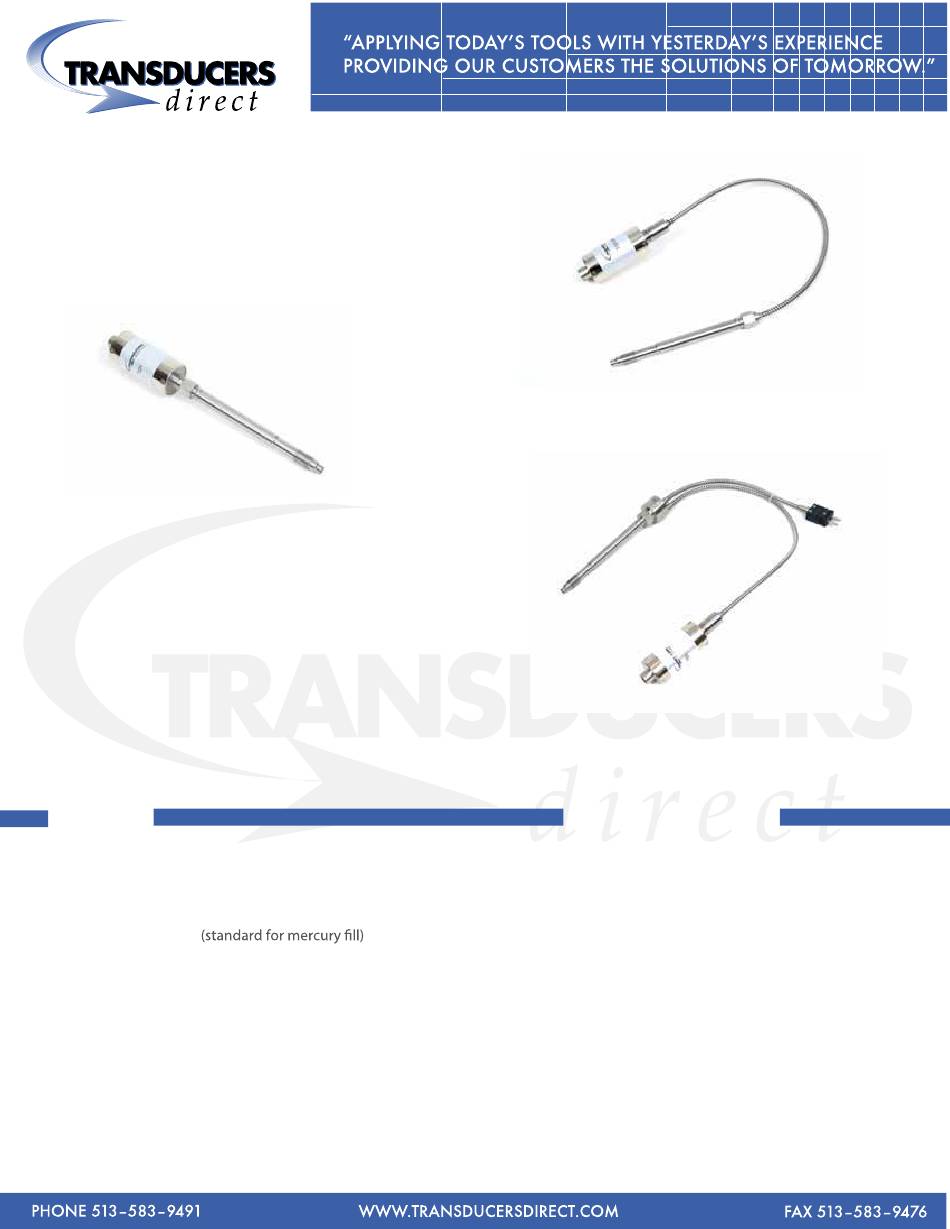

SERIES: TD1-Rigid Stem
me
FEATURES
• Industry Standard Housing
• Standard 3.33mV/V , 6pin Bendix Connector
• 6" Stem (standard) , 18" Flex (standard) (TD2M)
• 0.5% combined error
• Ranges from 3000-20,000psi
• 750ºF (400ºC) Rating, Standard 15-5 SS Tip
• 660°F (350°C) Rating, Standard I5-5 SS Tip (Oil Fill)
• Thermocouple Type J (TD3M)
• 80% Output Cal
®
SERIES: TD2-Stem/Flex
SERIES: TD3-Stem/Flex with Thermocouple
TD1, TD2 , TD3 OPTIONS
• Connectors : 8pin, 6pin-SCREW
• 12" Stem, 30" Flex (TD2M)
• Outputs : 4-20mA, 0-10VDC
®
Advertisement
Summary of Contents for TRANSDUCERS direct TD1 Series
- Page 1 ® Introducing the TD1, 2, 3 Series Melt Pressure Transducers. SERIES: TD2-Stem/Flex SERIES: TD1-Rigid Stem SERIES: TD3-Stem/Flex with Thermocouple ® FEATURES TD1, TD2 , TD3 OPTIONS • Industry Standard Housing • Connectors : 8pin, 6pin-SCREW • Standard 3.33mV/V , 6pin Bendix Connector •...
- Page 2 The information we supply is believed to be accurate and reliable as of this printing. However, we assume no responsibility for its use. While we provide application assistance personally, through our literature and the Transducers Direct web site, it is up to the customer to determine the suitability of the p roduct in the application.
- Page 3 ® MECHANICAL INSTALLATION 1. MOUNTING HOLE 1/2-20 UNF -2B M 18 x 1.5 (S TAN D AR D ) All holes must be concentric within 0.002” AVAILABLE DRILL KITS : Page 4 0 . 2 4 2 2. PROTECTIVE CAP 0 .2 15 (6 .1 5 ) (5.
- Page 4 ® GENERAL OPERATIONAL GUIDES 1. START UP Before starting the extruder drive, ensure that the extruder is at operational temperature and plastic at tip is molten. A cold start can literally rip o the fragile diaphragm. 2. REMOVAL Only remove transducer when barrel is at operational temperature and zero pressure. Always clean hole of all solids before re-installing.
