Summary of Contents for Civintec Cidron Slimline

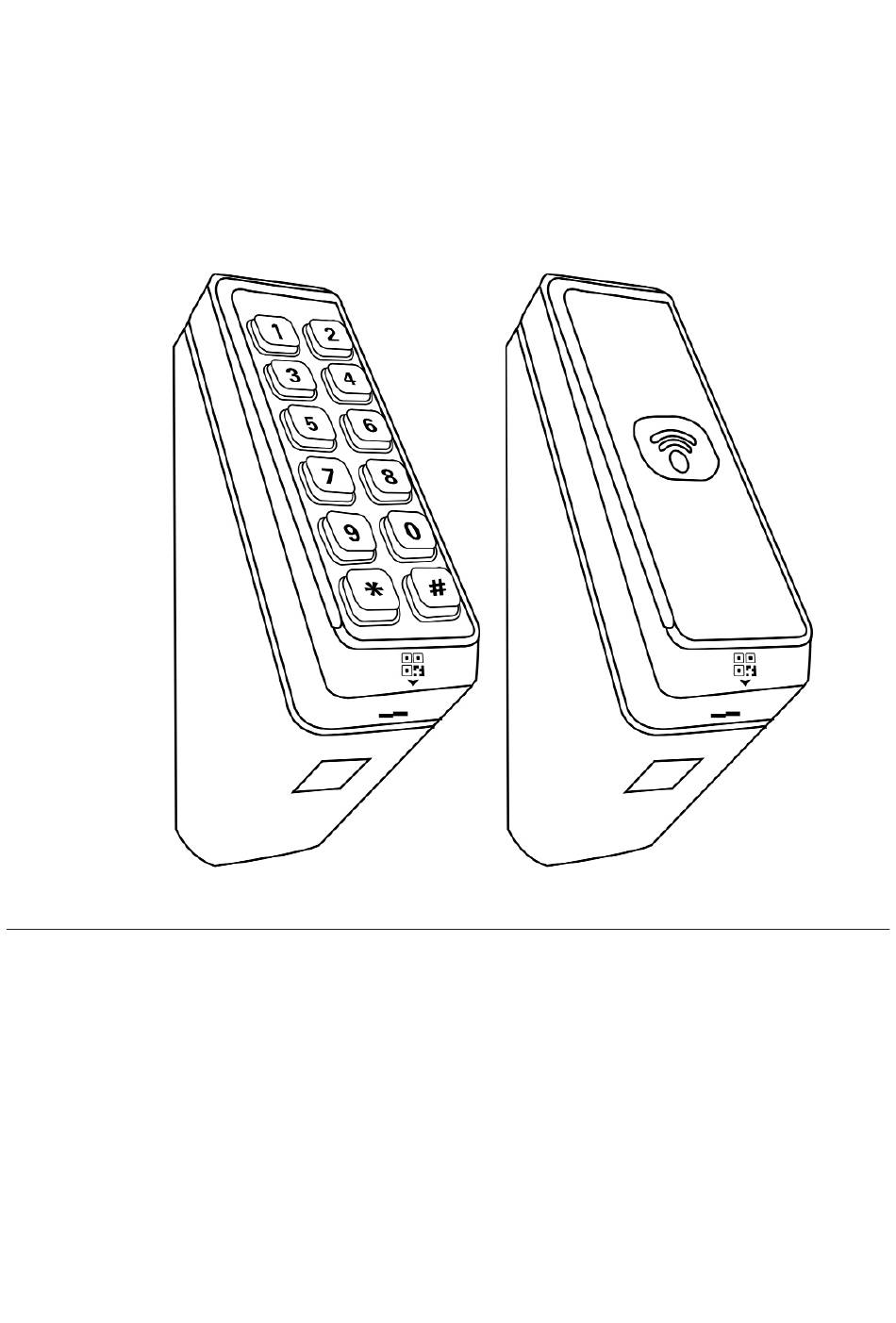

- Page 1 CIDRON QR Installation guide Cidron Slimline QR Reader...
- Page 2 MIFARE DESFire® EV1. Also supports other ISO 14443 A/B* compatible cards. Reading technologies *Not all ISO14443 B cards have been implemented in the reader, please contact Civintec Global for more details on current status. Mobile ID ISO18092NFC, BLE (Bluetooth low energy) Area image 640 x 480 pixels, Filed of View 68°(H) x 51(V)
-
Page 3: Power Consumption
Power Consumption Model Feature Brightness Current draw (idle) Model: Civintec Global Cidron LED-Bar Backlight 12VDC 24VDC 90 mA 47 mA SC93100-MDEB STD 13.56MHz/125KHz/2.4GHz with keypad Medium 90 mA 47 mA SC93110-MDEB 90 mA 47 mA STD 13.56MHz/125KHz/2.4GHz without Medium 90 mA... - Page 4 Package content: • 2pcs Installation screws • 1pc Installation plate • 2pcs Screw plugs • 1pc Reader module with front plate • 1pc Cable strip • 1pc Front cover • 1pc Fixing screw • 2pcs Terminal connector (8-pin) • 1pc Quick installation guide * Please note that all pictures in this manual are illustrations and do not represent the actual sizes and form of the components.
- Page 5 Package content: • 3pcs Installation screws • 2pcs Fixing screw • 3pcs Screw plugs • 1pc Tamper switch bolt * Please note that all pictures in this manual are illustrations and do not represent the actual sizes and form of the components.
- Page 6 ~20 cm In order to facilitate installation a cable length of 20cm is recommended.
- Page 7 Ensure that the installation plate is fixed in the correct direction, i.e. the arrows pointing upwards.
- Page 8 Ensure that the area behind the tamper switch bulb of the installation plate is flat, to be able to push the bulb for correct tamper alarm functionality. If it is not flat enough, you will find accessories in this manual that will assist with improving this functionality.
- Page 9 P5 - Black socket P4 - Blue socket Make sure to place the terminal connectors with the fastening screws facing towards you.
- Page 10 K-LED R-LED G-LED Black D-/TX D+/RX T/GPIO3 GPIO1 GPIO2 Blue B/RX A/TX RS485/ Description Wiegand OSDP Tamper output T/GPIO3 GPIO1 General purpose I/O General purpose I/O GPIO2 Ground RS485 - B/RX A/TX RS485 + Power supply Power supply 9-30 VDC D+/RX QR-RX Wiegand D1/CLK...
- Page 11 QRcode mode There are four wires,power and communication * Screws and screw plugs included with accessory. Matte black, part no: SC9292-SQ 1.Red wires(DC+),The first PIN that connects to the terminal block 2.Black wires(GND),The second PIN connects to the terminal block 3.Green wires(RX),The 9 PIN connects to the terminal block 4.White wires(TX),wires(GND),The 12 PIN connects to the terminal block...
- Page 12 Make sure no excess connection cable is left in between the reader module and the installation plate. Use the enclosed cable strip to fix the cable in the cord grip. It is recommended to connect the the wires to the terminal connectors before tightening the cable strip.
- Page 13 Install Mounting Plate with QR CODE MODE * Screws and screw plugs included with accessory. Matte black, part no: SC9292-SQ 1.Red wires(DC+),The first PIN that connects to the terminal block 2.Black wires(GND),The second PIN connects to the terminal block 3.Green wires(RX),The 9 PIN connects to the terminal block 4.White wires(TX),wires(GND),The 12 PIN connects to the terminal block...
- Page 14 When installing the reader to the mounting plate ensure that the reader pin header contact perfectly aligns with the terminal connector block.
- Page 15 Mount the front cover as per the image above and make sure it is fitted correctly. In order to do so, allign and fit the top snap fastening, apply and main- tain pressure on the top of the front cover while sliding the front cover over the bottom snap fastening.
- Page 16 To secure the front cover to the reader use the supplied fixing screw and fix it into the installation plate through the front cover.
- Page 17 Cidron installation tool, part no: SC9914 To open the reader, first remove the fixing screw and then detach the front cover from the installation plate by inserting the tip of the tool into the slot at the bottom of the front cover and move the tool upwards. This will release the front cover without damaging the front cover and/ or the installation plate.
- Page 18 Overview, programming of reader Setting the reader in programming mode see page: Configuring the Changing Resetting the reader authentication card OSDP secure channel. see page: see page: see page:...
- Page 19 Setting the reader in programming mode BEEP ! Reading distance approximately 2 cm. In order to set the reader in programming mode, present the valid “Authentication Card” to the reader as shown. The reader will beep and start blinking yellow to indicate that it is now in programming mode. The Reader is in programming mode for 10 seconds.
-
Page 20: Configuring The Reader
Configuring the reader BEEP ! Reading distance approximately 2 cm. 1: Set the reader in programming mode, see page: 17 2: Present the “Configuration Card” to the reader as shown. Keep the card within reading distance until the reader beeps and blinks in green. The reader is now programmed and ready for use according to the configuration settings on the configuration card. - Page 21 Changing authentication card BEEP ! Reading distance approximately 2 cm. 1: Set the reader in programming mode, see page: 17 2: Present the “CHANGE Authentication Card” to the reader as shown. Keep the card within reading distance until the reader beeps and blinks in green.
- Page 22 Resetting the OSDP secure channel BEEP ! Reading distance approximately 2 cm. 1: Set the reader in programming mode, see page: 17 2: Present the “OSDP Installation mode Card” to the reader as shown. Keep the card within reading distance until the reader beeps and blinks in green.
- Page 23 Installing Secure Access Module MIFARE® SAM AV2 (SIM Card), Software ISLOG SAM Manager. In order to install the SAM into the reader open the SAM socket by unlocking and opening the lid. Then place the SAM into the socket lock it into place by closing the lid and sliding it into locked position.
-
Page 24: Cleaning Instructions
Cleaning instructions Use compressed air in between the buttons to remove dust and dirt and after that Isopropyl alcohol can be used with a piece of fabric to rub in between the buttons and the reader exterior. -
Page 25: Fcc Statement
FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - Page 26 Global or obtaining the product is properly experienced or trained to correctly install security related products including card readers. CiVinTec Global Co., Limited. info@civintec.com www.civintec.com Version 2.0 April 26, 2022...
