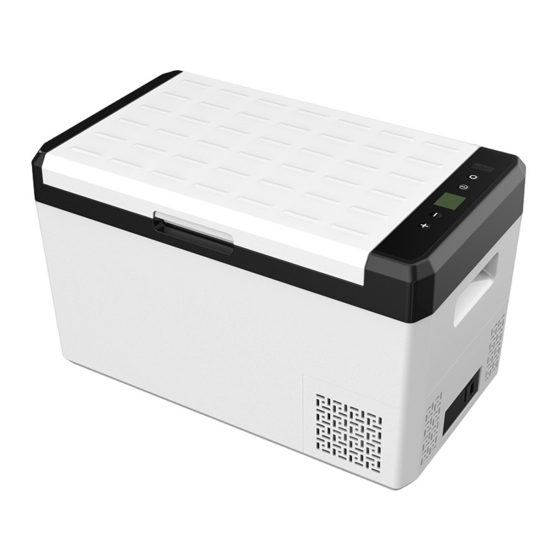

  • Page 1 COOLBOX FC25 COOLBOX MANUAL Ver:1.0...

  • Page 3: Table Of Contents

    Please read this manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this manual must be handed over to the user along with it. The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

  • Page 4: Explanation Of Symbols

    1 Explanation of symbols DANGER! Safety instruction: Failure to observe this instruction will cause fatal or serious injury. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product. NOTE! Supplementary information for operating the product.
  • Page 5 persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Page 6 WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. To avoid contamination of food, please respect the following instructions: – Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  • Page 7 FCC Caution: • Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment. FCC Statement: • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 8 • Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
  • Page 9 • Always keep and use the cooling device out of the reach of children under the age of 8 years. • Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device. CAUTION! •...
  • Page 10 • If the cooling device is connected to a DC outlet: Disconnect the cooling device or switch it off when you turn off the engine. Otherwise you may discharge the battery • The cooling device is not suitable for transporting caustic materials or materials containing solvents.

  • Page 11: Scope Of Delivery

    3 Scope of Delivery Quantity Description Cooler Connection cable for DC connection Connection cable for AC adapter Operating manual 4 Function Description This is a portable cooler . A fast-acting and efficient cooling system provides maintenance-free cooling performance with a thick insulation, powerful compressor and control module, and the cooler can withstand a heel (inclination) of 30°...

  • Page 12: Operating And Display Elements

    4.2 Operating and display elements Description Description Switches the cooler on or off when the button is pressed for one or three seconds Press button to switch the cooler on H/M/L: Battery voltage protection gear ℃/℉: Temperature unit symbol Display : Compressor is on : Bluetooth is on MAX : Maximum cooling mode...
  • Page 13 1. On/Off button 2. Setting button 3. LCD screen display 4. Down "-" button 5. Up "+" button 6. USB output port DC5V2A 7. voltage detection 8. ABS battery voltage protection gear setting 9. Temperature gauge display 10. ºC/ºF Celsius or Fahrenheit display 11.
  • Page 14 2) When the refrigerator strats,the Bluetooth is away on, and you can use the mobileapp to connect to the Bluetooth. 3) Power input voltage range H/M/L setting: long press the Setting button for 3s, then release the button, the H/M/L letters begin to flash, and then short press the Setting button for 1s to switch between H/M/L Voltage gear.

  • Page 15: Operation

    5 Operation 5.1 Before initial use NOTE Before starting your new cooler for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance”). 5.2 Energy saving tips •...

  • Page 16: Using The Cooler

    DANGER! Danger of electrocution! • Never handle plugs and switches with wet hands or if you are standing on a wet surface. • If you are operating your cooler on board a boat with an AC mains connection, you must install a residual current circuit breaker between the AC mains and the cooler.

  • Page 17: Battery Protection

    5.6 Using the battery monitor The device is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the device is connected to the on-board DC supply. If the cooler is operated when the vehicle ignition is switched off, the cooler switches off automatically as soon as the supply voltage falls below a set level.

  • Page 18: Usb Port For Power Supply

    5.9 USB port for power supply The USB port allows you to charge small devices like mobile phones and mp3-players. NOTE Ensure that any small device connected to the USB port is compatible with 5 V/2000mA operation. 5.10 Defrosting the cooler Humidity can form frost in the interior of the cooling device or on the evaporators.

  • Page 19: Replacing The Fuse Of The Dc Plug

    5.12 Replacing the fuse of the DC plug Replace the faulty fuse with a new fuse of the same model and rating. 5.13 Defrosting the cooler NOTICE! Danger of damage! The light PCB can only be replaced by the manufacturer, authorized repair center or similar qualified technician to avoid danger.

  • Page 20: Troubleshooting

    7 Troubleshooting 7 Troubleshooting Fault Possible cause Suggested remedy In most vehicles the No voltage was ignition must be turned on before power will detected in the DC be supplied to the DC power outlet power outlet. If the plug of this product The DC socket is becomes very hot on the dirty, resulting in...
  • Page 21 Remind Message Suggested Fault Description Possible cause remedy The door is not Open the door closed tightly, or for more than Close the cover you forget to The inner 3 minutes close the door. light flashes- !ALERT-Lid Inspection by open>3 min Others authorized repair center...
  • Page 22 Remind Message Warning malfuncti Possible cause Suggested remedy code Turn off the device for at least 5 minutes, then Fan over restart it. If the problem Internal fault current persists, you need to authorize a repair center to inspect it. Compress system is high than 5 or start...

  • Page 23: Guarantee

    8 Guarantee The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer. For repair and warranty processing, please include the following documents when you send in the device: •...
  • Page 24 Test/certificates: CB,CE,RoHS,REACH,UKCA,SAA(COS),FCC,ICES etc. Item Specifications Model FC25 Capacity 25L (24.7L) Weight 10.9kg Rated working voltage (DC input) DC12/24 V MAX 4.5A/2.5A Rated operating current (DC12/24V) 3.0A/1.8A Working Ambient Temperature +10ºC-﹢43ºC Temperature difference 54ºC. Setting -22ºC at ambient 32ºC Temperature setting range +10ºC ~ -22ºC (+50ºF ~ -8ºF)
  • Page 25 Item Specifications L-on/off( 23.0±0.3/21.5±0.3) DC24V Cut on/Cut off Voltage M-on/off( 25.3±0.3/24.1±0.3) H-on/off( 26.2±0.3/24.6±0.3) Bluetooth Response Time Less than 5 seconds Bluetooth Response Distance Within 15 meters The refrigerant of this product is R134a Restriction of Hazardous Substances Directive (RoHS) In order to meet the laws, regulations and other requirements related to the restriction of hazardous substances in electrical and electronic products of the People's Republic of China.
  • Page 26 This table is compiled in accordance with the regulations of SJ/T11364. O: Indicates that the content of the hazardous substance in all homogeneous materials of the part is below the limit requirement specified in GB/T26572. X: Indicates that the content of the hazardous substance in at least one of the homogeneous materials of the part exceeds the limit requirement of GB/T26572.
