Summary of Contents for FIAMA F8P

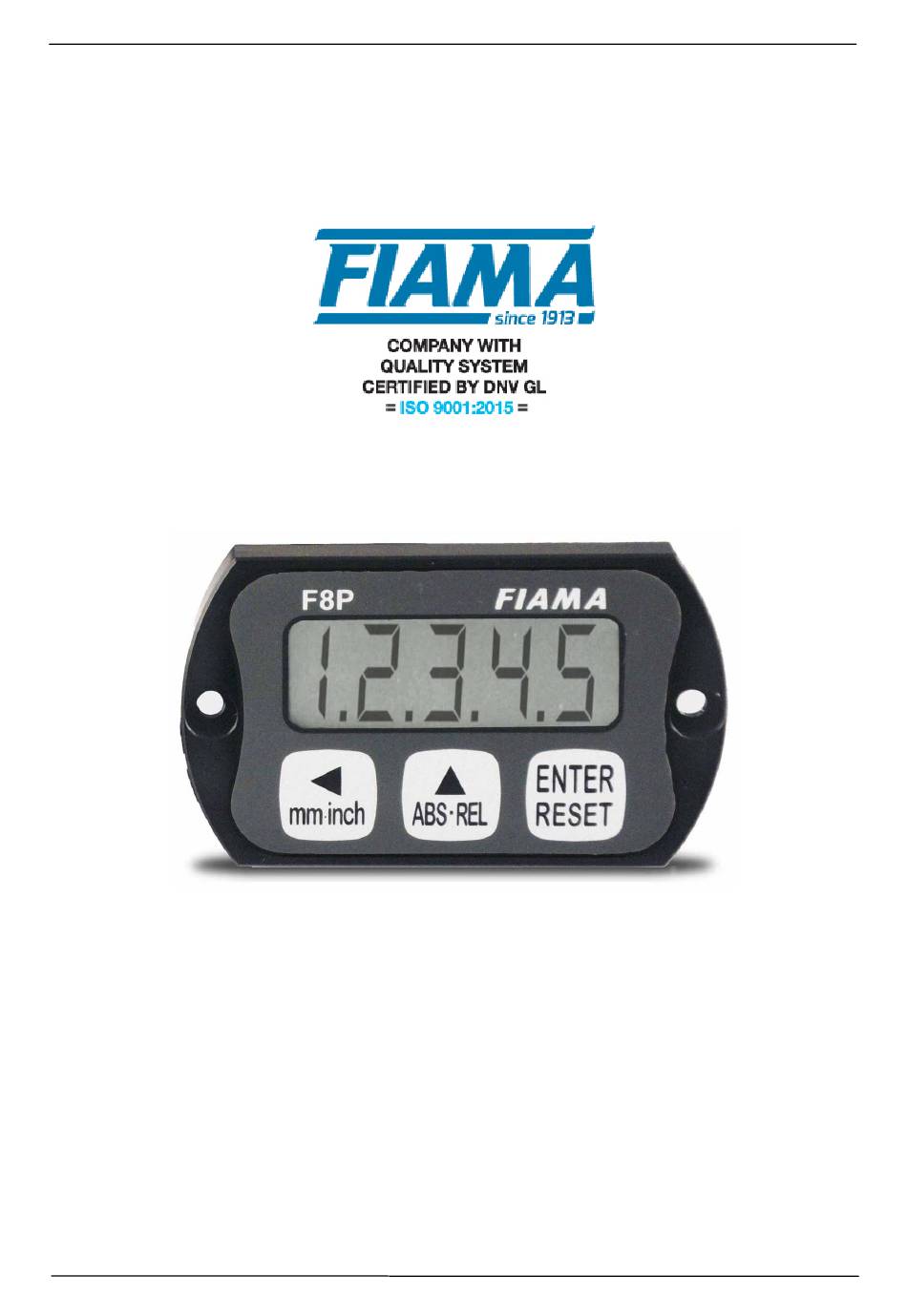

- Page 1 Display panel mount for magnetic band USER’S MANUAL AND MAINTENANCE DISPLAY PANEL MOUNT FOR MAGNETIC BAND WITH BATTERY POWER SUPPLY TYPE “F8P-“ Data: 13/01/16 F8P_ing.doc pag 1/9...
- Page 2 Do not use hydrocarbon solvents (petrol, diluents, etc.): the using of these products could affect the proper functioning of the instrument. Reparations should be done only and exclusively at the FIAMA technical assistance centre. Calibrations and tests It is advisable to calibrate the instrument periodically, once every working year.
-
Page 3: Installation
Description The F8P is a display unit with integrated position sensor, in combination with the P50 magnetic band, is a complete system to measure linear movements. The display has five digits plus sign (range from -999999 up to +999999). The digits are 10mm high to allow excellent readability also at a distance. - Page 4 Display panel mount for magnetic band The range allowed is from 0,00001 to 999999 with setting of decimal point position that is, after programming of the last digit on the left, pressing key will blink the decimal pinpoint and with it can be moved to the wanted position.
-
Page 5: Battery Replacement
Display panel mount for magnetic band In practice , and are the nominal values associated to the three different tools which are used. As a special case, if is set to zero, are the values to display in origin 1 and in origin 2 respectively. -
Page 6: Display Icons
Display panel mount for magnetic band Display icons Indicator of flat battery: begins to blink when the level of loading goes under a certain value and when it keeps switched on its necessary to change the batteries within 1 month. Indicator of absolute quota Indicator of relative quota Indicator of mm... -
Page 7: Sensor Mounting
For the optimal system functioning its is necessary that the distance between the sensor and the magnetic band is not over 1mm of the useful stroke. ±3° ±3° ±3° Mounting of magnetic ring (only for version F8P-E-AM) Data: 13/01/16 F8P_ing.doc pag 7/9... - Page 8 Display panel mount for magnetic band Mounting of sensor SM12 (only for version F7P-E-SM12) Overall dimension Data: 13/01/16 F8P_ing.doc pag 8/9...
- Page 9 Tel. (+39) 0521.672.341 - Fax. (+39) 0521.672.537 – e-mail: info@fiama.it - www.fiama.it FIAMA srl is not responsible for any damage to persons or things caused by tampering and wrong use and in any case that are not consistent with the features of the instrument.
