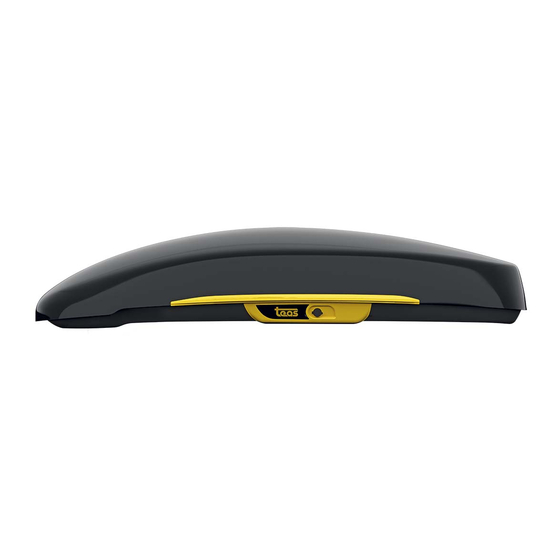

- Page 1 INSTALLATION, USER AND SAFETY INSTRUCTIONS CARRIER car roof box - small A 71100 71100-MA...
-
Page 2: Daily Inspection
GENERAL MIMsafe’s Carrier roof box is designed to securely carry of car models. In some cases, the TEAS parts may have to be different types of luggage on the car’s roof. The box comprises a set individually depending on the roof design and car model. -
Page 3: Parts Included
PARTS INCLUDED QUICK GRIP Art.no. 70114 RATCHET STRAPS LOCK KEYS ALLEN KEY 5 ALLEN KEY 4 RECOMMENDED TOOLS FOR THE ASSEMBLY (not included) MEASURING TAPE... -
Page 4: Factory Settings
CHECK ALL THESE MEASUREMENTS 1600 mm 63 in FACTORY SETTINGS 330 mm 13 in 350 mm 760 mm 490 mm 13.8 in 30 in 19.2 in 232 mm 550 mm 930 mm 980 mm 9.13 in 21.65 in 36.61 in 38.58 in 25 mm 95 mm... - Page 5 IMPORTANT Choose the right option regarding whether your crossbars are adjustable or point fixed ADJUSTABLE FIXED POINT CROSSBARS CROSSBARS Go to Go to...
- Page 6 FOR ADJUSTABLE CROSSBARS ONLY INSTALL AND/OR ADJUST THE CROSSBARS 760±5 mm MARGIN 30±0.2 in ALLOW AT LEAST 350 mm (13.8 in) OF MARGIN Go to...
- Page 7 FOR FIXED POINT CROSSBARS ONLY MEASURE THE DISTANCES BELOW AND WRITE THEM DOWN IN THE BLANKS MARGIN OPEN THE CARRIER IMPORTANT NEVER OPEN BOTH SIDES OF THE CARRIER AT THE SAME TIME.
- Page 8 DISASSEMBLE THE TEAS SYSTEM UNITS ALLEN KEY 5 ALLEN KEY 4 LOOSEN THE MARKED SCREW AND TURN THE ANCHOR DISASSEMBLE THE TEAS SYSTEMS BY UNTIL THE SCREWS ON ITS SIDES ARE REACHABLE LOOSENING THE MARKED SCREWS ADJUST THE TEAS SYSTEM UNITS TO YOUR EARLIER MEASUREMENTS SLIDE THE TEAS UNIT SYSTEMS TO THE MEASURED POSITIONS ATTENITON THIS DISTANCE...
- Page 9 REASSEMBLE THE TEAS SYSTEM UNITS ALLEN KEY 4 ALLEN KEY 5 ASSEMBLE THE TEAS SYSTEM UNITS AGAIN TURN THE ANCHOR TO ITS ORIGINAL ANGLE (facing inwards to MATCHING THE CLOSEST SET OF HOLES the roof box) AND TIGHTEN THE MARKED SCREW AGAIN CLOSE THE CARRIER Go to...
- Page 10 PLACE AND CENTER THE CARRIER ONTO THE CROSSBARS CROSSBAR WINDSHIELD OPEN THE CARRIER...
- Page 11 SPREAD THE QUICK GRIP’S CLAWS TO THEIR MAXIMUM DISTANCE *TURN THE KNOB ANTICLOCKWISE UNTIL THE ORANGE INDICATOR IS VISIBLE VISIBLE MAKE SURE THE ORANGE INDICATOR IS VISIBLE* LOWER THE QUICK GRIPS...
- Page 12 CHECK THE QUICK GRIP’S POSITIONS...
- Page 13 AFFIX THE QUICK GRIP’S CLAWS TO THE CROSSBARS MAKE SURE THE CLAWS ARE CORRECTLY CLAMPED TO THE CROSSBARS...
- Page 14 LOCK BY ROTATING THE KNOB UNTIL YOU HEAR A “CLICK” NO CLICK? REVIEW STEPS 6 AND 9 CLOSE THE ROOF BOX AND COVER THE LOCK...
- Page 15 DISTRIBUTE THE LOAD AS ILLUSTRATED FASTEN ALL THE LOAD USING THE HOOKS (YELLOW) AND STRAPS INCLUDED IMPORTANT AVOID STRAPPING AROUND SHARP EDGES THE MAXIMUM PAY LOAD FOR THE ROOF BOX IS 75 kg. However, the added weight of the crossbars, Carrier and the pay load may not exceed the maximum allowed roof load for your car.
- Page 16 • All the loads have to be secured and correctly fastened with • Please note that wind noise may occur when driving with a the straps. roof box mounted on the car. Carrier Edition 2021-12 www.mimsafe.com...
