- Page 1 2.1MP HD-SDI Box Camera HDC222 User Manual Please read these instructions carefully before operating the unit and keep for further reference.
- Page 2 Intro Section Please read this instruction carefully before operating the product and keep it for further reference. All examples and pictures used here are for reference only. The contents of this manual are subject to change without notice. CAUTION: • A regulated DC12V 500mA power supply is recommended for use with this camera to ensure the best picture quality and stable operation.
-
Page 3: Table Of Contents
Contents 1.0 Introduction ......................4 1.1 Product Features ...................4 1.2 Product Dimensions ..................4 1.3 Components ....................4 1.4 Mounting Position ..................4 1.5 Specification ....................5 2.0 Installation ......................6 2.1 Monitor Connection ..................6 2.2 RS-485 Type ....................6 3.0 OSD Manual ......................7 3.1 Function Description ..................8 4.0 RS-485 ........................11 NOTE: This equipment has been tested and found to comply with the limits for a Class A... -
Page 4: Introduction

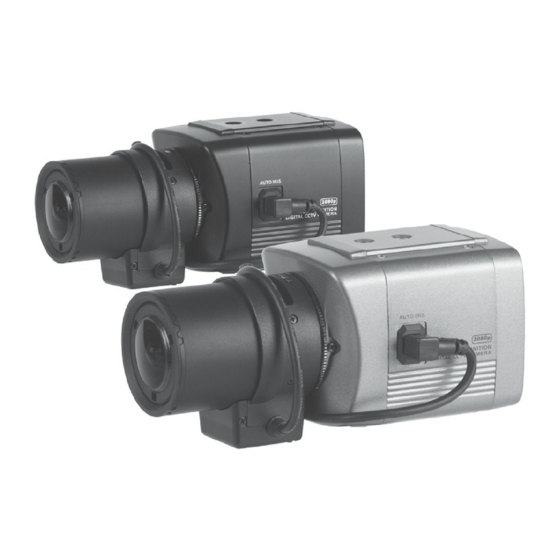

1.0 Introduction The Genie HDC222 is a 2.1MP HD-SDI box camera with a 6-in1 output (AVI, TVI, CVI, EX-SDI, HD-SDI and CVBS). 1.1 Product Features • Sony 1/2.8” 2.13MP Progressive Scan SONY Starvis CMOS • 1080p (1920 x 1080) @ 30(25)fps •... -
Page 5: Specification
User Manual 2.1MP HD-SDI Box Camera 1.4 Specification Image Sensor 1/2.8” Progressive Scan SONY Starvis CMOS HD-SDI / EX-SDI1.0 / EX-SDI2.0 / AVI /TVI / CVI : 1080p @ Resolution 30fps (25fps)/ 720p @ 60fps(50fps) / 720p @ 30fps (25fps) TV out : CVBS NTSC / PAL Electronic Shutter AUTO / FLICKER / MANUAL /(1/30(25)~1/30,000) - Page 6 2.0 Overview & Function TRIPOD MOUNTING HOLE(1/4"-20 UNC) C-MOUNT ADAPTOR RING LENS MOUNT COVER CS-MOUNT ADAPTOR RING AUTO IRIS JACK CS-MOUNT ADAPTOR RING TRIPOD MOUNTING HOLE(1/4"-20 UNC) LOCKING SCREW(2EA) DC12V AC24V / DC12V 1. MENU BUTTON 2. UP BUTTON 3. DOWN BUTTON 4.
-
Page 7: Installation
3.0 Installation Replace the auto iris lens connection plug cover and take off the Sensor protection cap. Then, attach the auto iris lens to the camera by screwing it in clockwise. Insert the connection plug that is connected to the auto iris lens cable into the auto iris lens connector, located on the side of the camera. -
Page 8: Monitor Connection
4.0 Connections Monitor Connection DC12V 24VAC/12VDC CAUTION : After installation, turn off the power and turn it back on. - Page 9 5.0 OSD Menu Structure...
- Page 10 User Manual 2.1MP HD-SDI Box Camera...
- Page 11 User Manual 2.1MP HD-SDI Box Camera (*1) WDR 15P : 3DNR on, 2DNR on, 15 Frame Rate WDR 30P : 3DNR off, 2DNR on, 30 Frame Rate The WDR function is not available in the CVBS output. (*2) The 720/60(50)p mode is not real 60(50) Frame rate because 720/30(25)p scenes are output twice.
- Page 12 User Manual 2.1MP HD-SDI Box Camera Hidden Menu • CONVERT ANALOG OUTPUT MODE STEP 1. ENTER Press UP/DOWN/LEFT/RIGHT key more than 2 sec. SETP 2. SELECT Press UP key more than 5 sec : AVI Press DOWN key more than 5 sec : CVI Press LEFT key more than 5 sec : CVBS Press RIGHT key more than 5 sec : TVI STEP 3.
- Page 13 Sales +44(0)1707 330541 Enquiries sales@genieproducts.co.uk Website www.genieproducts.co.uk...
