Frequency Synthesizer
F-SCAN MOBILE NT
and
F-SCAN MOBILE NT DUO
Firmware Version FSC V2.x
INSTRUCTION MANUAL
This symbol identifies the equipment as type B
Attention: CONSULT ACCOMPANYING DOCUMENTS
Ordering information:
F-SCAN MOBILE NT
Product id: FTB129
F-SCAN MOBILE NT DUO
Product id: FTB133
- 1 -
Advertisement
Table of Contents
Summary of Contents for TB-Electronics F-SCAN MOBILE NT
- Page 1 Frequency Synthesizer F-SCAN MOBILE NT F-SCAN MOBILE NT DUO Firmware Version FSC V2.x INSTRUCTION MANUAL This symbol identifies the equipment as type B Attention: CONSULT ACCOMPANYING DOCUMENTS Ordering information: F-SCAN MOBILE NT Product id: FTB129 F-SCAN MOBILE NT DUO Product id: FTB133...
-
Page 2: Table Of Contents
The shipment from the factory includes:......................... - 6 - Elements for operation for F-SCAN MOBILE NT (FTB129) ..................- 7 - Elements for operation for F-SCAN MOBILE NT DUO (FTB133) ................- 7 - Signal forms delivered to Multi-signal-output port ......................- 8 - Factory settings ..................................- 9 -... -
Page 3: Warning And Notes
WARNING AND NOTES WARNING: The F-SCAN MOBILE generates frequencies. The use of other accessories than those supplied with the unit – or described here – could cause malfunctions or become a hazard to the user. The warranty would be forfeit. ATTENTION: The unit, all accessories, connectors and cables must be visually inspected for damage frequently. -
Page 4: Preface
DIRP runs. In addition, up to 460 user defined frequency sets (up to 30 values each) can be saved in the F-SCAN MOBILE NT memory. When used in DUO mode, 25 sets of two frequencies can be filled by the user with individually selected applications independent from single channel memory. -
Page 5: Two Generators - Duo Mode
DUO MODE. First steps The charge level of the Lithium-Ion battery of the F-SCAN MOBILE NT DUO must be checked first after the device and its accessories have been unpacked. CHARGE YOUR F-SCAN MOBILE NT DUO BEFORE FIRST USE FOR AT LEAST 4 HOURS. -
Page 6: The Shipment From The Factory Includes
Stainless steel electrodes FTB202A Application cable for electrodes FTB308 2 sets of self-adhesive pad-electrodes FTB041 DIRP sensor FTB303 USB cable FTB223 Application cable for DUO FTB033 (only included to F-SCAN MOBILE NT DUO) - 6 -... -
Page 7: Elements For Operation For F-Scan Mobile Nt (Ftb129)
FOR POWER charger and data APPLICATION transfer PARTS SUCH LIKE MAGNETIC COIL ONLY ! Elements for operation for F-SCAN MOBILE NT DUO (FTB133) ON--button A brief contact switches the unit ON. Mini-USB Multi-signal output DUO OUTPUT connector for port... -
Page 8: Signal Forms Delivered To Multi-Signal-Output Port
Signal forms delivered to Multi-signal-output port 0Vpp to 10 Vpp SINE (DC-OFFSET), for FTB133 (DUO) adjustable SQUARE, 0-symmetrical, Full Wave 0Vpp to 24Vpp SQUARE, permanent positive, Half Wave 0Vpp to 12Vpp (DC-OFFSET) SMART, permanent positive, Half Wave 0Vpp to 12Vpp (DC-OFFSET), a high frequency covering the application frequency. -
Page 9: Factory Settings
Factory settings Language on screen: English or German Application time per frequency: 3:00 Minutes (adjustable between 0:30 and 59:59) Signal strength: 80% of maximum of 12Vpp (adjustable +/- in steps of 1%) Signal form: AUTO (Sine, Square Full Wave, Half Wave, SMART and OFF selectable). -
Page 10: Main Menu

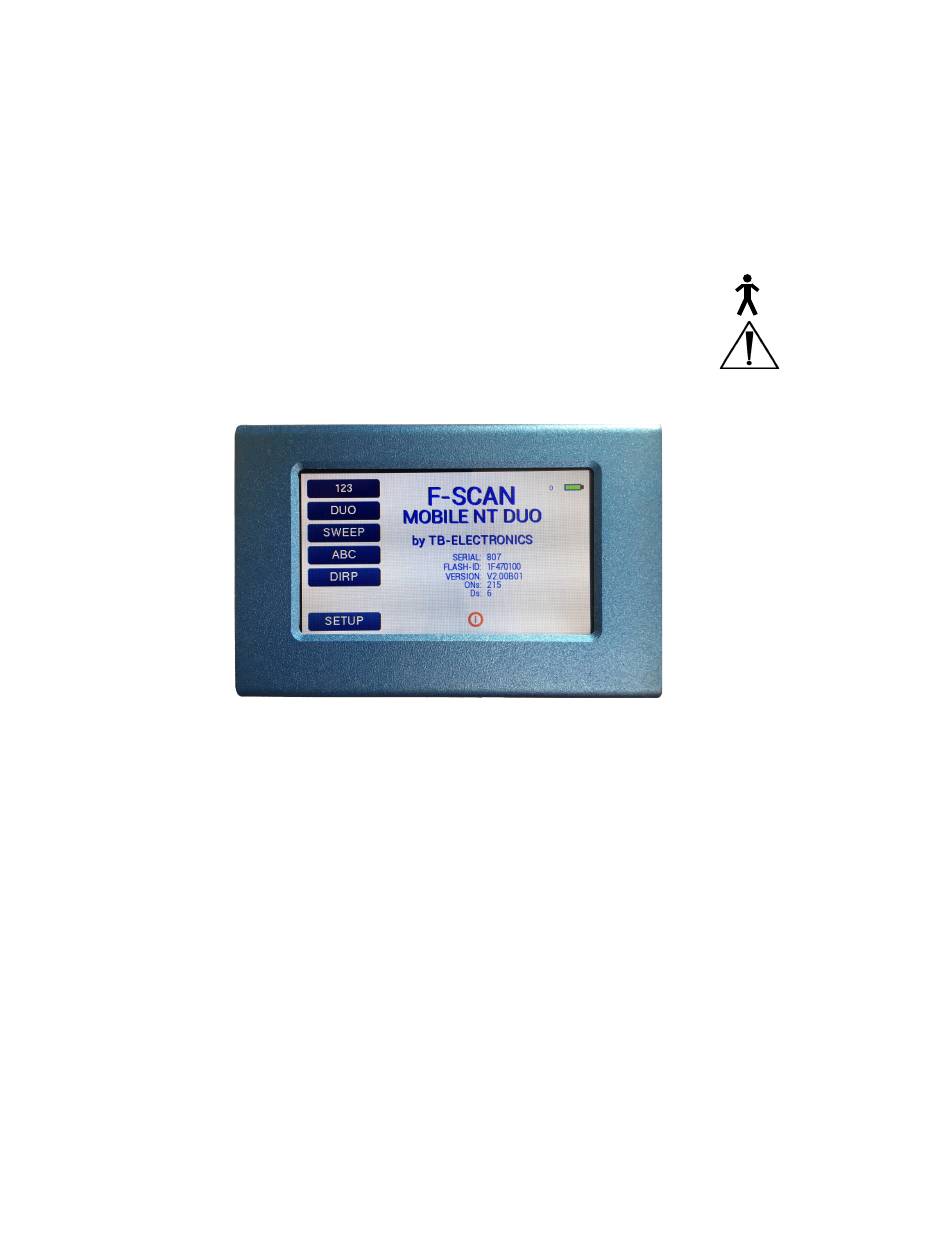

- FLASH ID: identifies the type of internal memory. FFFFFFFF would indicate a memory defect. The device must then be checked by a professional. - VERSION V1.00B00 Version of software active in the device. Startup screen of the F-SCAN MOBILE NT DUO FTB133 - 10 -... -
Page 11: The Menu "123
If the button ”ABC“ is not shown on this menu, the function is either not activated or does not hold any entries. The menu “123“ The F-SCAN MOBILE NT offers 100 storage positions for programs of between 1 and 50 frequencies. The end of each program is a value of 0 Hertz (Hz). Each program can be named individually. -
Page 12: The Continue Feature
The CONTINUE feature The F-SCAN MOBILE NT is equipped with a mighty software feature which makes it possible to have as many programs running automatically one after the other. If a user decides to have a program (or protocol) being continued by another program (or protocol), the CONT button must be used. This CONT button sets a code to the selected entry which contains the name and number of the program to follow. -
Page 13: Duo Mode
DUO MODE When a user decides that an application is started with START, the program follows the DUO MODE principle. This means, that the first frequency “A” of a program outputs the signal on the red wire of the cable FTB033. The second frequency indicated as “B” is output at the black wire of the application cable. -
Page 14: How To Copy, Paste And Cut A Program
How to copy, paste and cut a program After selecting a program, it is possible to copy it and paste it to another memory position. Touch the program position to be copied for 2 seconds until the COPY PASTE CUT bar is indicated. -
Page 15: How To Start, Pause, Or Stop A Program
Wave form The signal form delivered to the “OUTPUT PORT“ can be switched from AUTO to SINE, SQUARE HALF WAVE (DC-OFFSET), SQUARE FULL WAVE, SMART or OFF with successive touches on this icon. The setting AUTO delivers SQUARE HALF WAVE (DC-OFFSET) signals with frequency values below 65000 Hz and SINE signals with values above 65000 Hz. -
Page 16: The Menu Dirp
The menu DIRP A touch on the button DIRP from the main menu opens the screen for the automatic resonance analysis “DIRP“. “DIRP” stands for: Dual Integration Resonance Procedure “DIRP” registers resonances to frequencies applied in steps of “DELTA F” within the limits between a lower value “Fmin”... -
Page 17: How To Prepare For A Dirp And Run It
DELETE Clear screen. FAST Change between fast and slow (standard) mode. Fast gives a short overview while standard is more precise in for some situations. How to prepare for a DIRP and run it To perform a DIRP analysis in the frequency range between 80000 Hz and 560000 Hz, enter Fmin=80000, Fmax=560000 and Delta F=1000. -
Page 18: The Menu Setup
The menu SETUP A touch on the button “SETUP” opens a menu for global settings: BRIGHTNESS Use the slider to set the brightness of the backlight of the LCD. Please note that the backlight uses a high amount of the battery energy. To save battery charge, use the POWER SAVE option. -
Page 19: Chipcard Option
POWER SAVE option is activated. The F-SCAN MOBILE NT does not function without the battery. If the battery fails, it must be replaced at the factory. Its end of life is reached, when the unit runs about 2 hours only after a 7 hour charge. -
Page 20: Use Of The Chipcard Plus
If the entire memory is used, the memory number 1 will be used. Removal of the ChipCard from the slot resets the F-SCAN MOBILE NT to the menu before the ChipCard was inserted. -
Page 21: Integration Of Programs From Other Sources
A touch on the button “ABC“ opens the menu to reach and operate frequency programs generated outside the F-SCAN MOBILE NT. Up to 460 sets, of up to 30 frequencies each, can be transferred to the “ABC” memory block using either the software F-SCANT3, or a common terminal program. -
Page 22: Technical Data
Technical data Case Plastic Dimensions 138 mm x 90 mm x 27 mm Color touch screen 95 mm x 453 mm; 480 x 272 pixel Min. frequency selectable 0.01Hz Frequenzy stability 30 ppm Memory 100 open positions for up to 50 frequency values including individual properties assigned to each value. -
Page 23: Declaration Of Conformity / Konformitätserklärung
CH-9443 Widnau dass das folgende Produkt mit der Bezeichnung/that the following product with the marking F-SCAN MOBILE NT Frequency Synthesizer in alleiniger Verantwortung auf dass sich diese Erklärung bezieht mit der folgenden Norm übereinstimmt: declare under our sole responsibility to which this declaration relates is in conformity with the following standard:...
