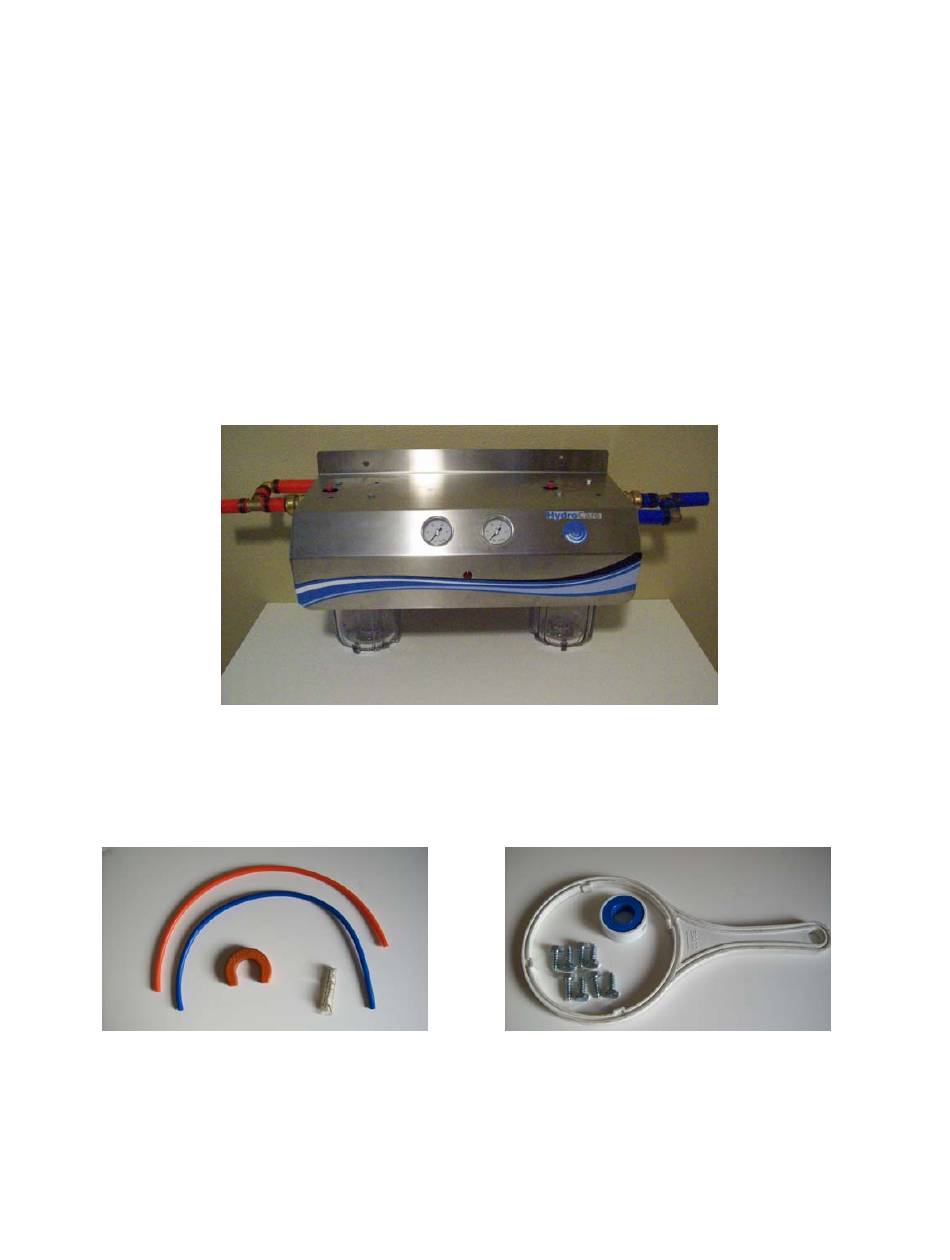

- Page 1 HYDROCARE DUAL ACTION WATER SYSTEM INSTALLATION MANUAL COMPLETE UNIT PARTS LIST Figure 1 Figure 2 Shark Bite Removal Tool, Silicon, Wrench, 8 Lag Bolts, Teflon Tape ¼ Inch Red & Blue Tubes...
- Page 2 Figure 3 Figure 4 2 Canister Heads 2 Media Inserts 2 Canister Housings Figure 5 Figure 6 Red is Inlet Supply / Blue is Outlet Supply 1 Inch Shark Bite Fitting Wrap the threads of the Shark Bite with Teflon Tape (provided) 3-4 wraps. Keep it flat and tight.
- Page 3 Figure 7 Figure 8 A Figure 8 B Position the Heads with the Red Pressure Release Button on the left. (See figure 3) Line up the red pipe assembly to insert the pipe. (See figure 7) Press the pipe in, up to the mark on the pipe (See figure 8A and 8B) Repeat for the blue assembly.
- Page 4 Figure 10 A Figure 10 B Turn the assembly over, and then locate the tape mark at the elbow. (See figure 10A) This is the location for the HydroCare strap connection. (See figure 10B) At this time, install the HydroCare module as follows: Figure 11 Attach the HydroCare Unit to the strap, with the light facing out.
- Page 5 3. Clip on the lower section 4. Withdraw the split pin. 5. Plug the low voltage cable into the unit and connect the transformer to the main's supply. The red light should glow brightly. Figure 12 A Figure 12 B Figure 12 C Turn assembly over to attach the Mounting Cover.
- Page 6 Figure 13 A Figure 13 B Figure 14 A Figure 14 B After the cover is attached, turn the unit over. The Pressure Gauge Fittings will be visible at this time. There are two ¼ inch tubes included, 1 Red, 1 Blue. They are push-in fittings.
- Page 7 CONNECTION NOTES 1. Turn off your water supply 2. Turning off your water heater is recommended 3. Release water pressure by opening a faucet 4. Attach water source to the Red pipe (Inlet) 5. Blue is for the Purified water to your home (Outlet) 6.
- Page 8 Make appropriate entries on the Maintenance Card provided (date installed and dates filters are changed). The HydroCare Dual Action Water System is the result of the finest craftsmanship and the highest quality materials available. Its design and manufacture is based on a unique modular concept, which provides higher quality water and higher flow rates, while using less space and less cost per gallon of water produced, than conventional systems.
