Summary of Contents for Advida M-NVR-4CH-4POE
- Page 1 M-NVR-4CH-4POE M-NVR-8CH-8POE M-NVR-16CH-8POE Network Video Recorders Quick Guide V1.00...

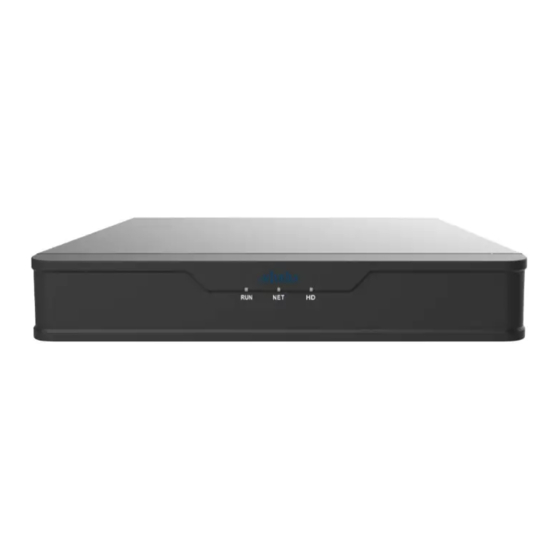

- Page 2 *M-NVR-16CH-8POE only Steady on No disk; or disk is abnormal. HD(Hard disk) Blinking Reading or writing data. Interfaces The following part shows the interfaces of two typical models. Figure 2-1 M-NVR-4CH-4POE ② ③ ④ ⑥ ① ⑤ ⑦ ⑧ Interface...
-
Page 3: Disk Installation
Disconnect power before installation. HDD Installation 1. For M-NVR-4CH-4POE and M-NVR-8CH-8POE, loosen the screws on the rear panel and side panel and remove the upper cover. For M-NVR-16CH-8POE, Loosen the screws on the bottom and remove the upper cover. -
Page 4: Startup And Shutdown
3. Slide the disk into place from A to B, and fix the 4 screws to secure the hard disk. 4. Connect the power cables and data cables. 5. Put the cover back in place and tighten the screws. Startup and Shutdown Make sure the cables are connected correctly and the device is grounded properly. -
Page 5: Web Login
5.2.1 Quick Add Follow the wizard to the fourth step. Select the devices to add in the discovered device list, and then click Add. NOTE! After the device is added, if wrong username or password message shows in the preview window, click in the window toolbar and enter the correct username and password. - Page 6 Disclaimer and Safety Warnings Copyright Statement No part of this manual may be copied, reproduced, translated or distributed in any form by any means without prior content in writing from our company (referred to as us hereafter). The product described in this manual may contain proprietary software owned by our company and its possible licensors.
- Page 7 whether in contract, strict liability or tort (including negligence or otherwise) in any way out of the use of the product, even if our company has been advised of the possibility of such damages (other than as may be required by applicable law in cases involving personal injury, incidental or subsidiary damage).
- Page 8 Store or use the device in a proper environment that meets environmental requirements, including and not limited to, temperature, humidity, dust, corrosive gases, electromagnetic radiation, etc. Make sure the device is securely installed or placed on a flat surface to prevent falling. ...
- Page 9 Regulatory Compliance LVD/EMC Directive This product complies with the European Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU. WEEE Directive–2012/19/EU The product this manual refers to is covered by the Waste Electrical & Electronic Equipment (WEEE) Directive and must be disposed of in a responsible manner.
