- Page 1 USB3.0 CAPTURE 3G-SDI -SDI TO HDMI 1080P60 & MIC+AUDIO- User manual...

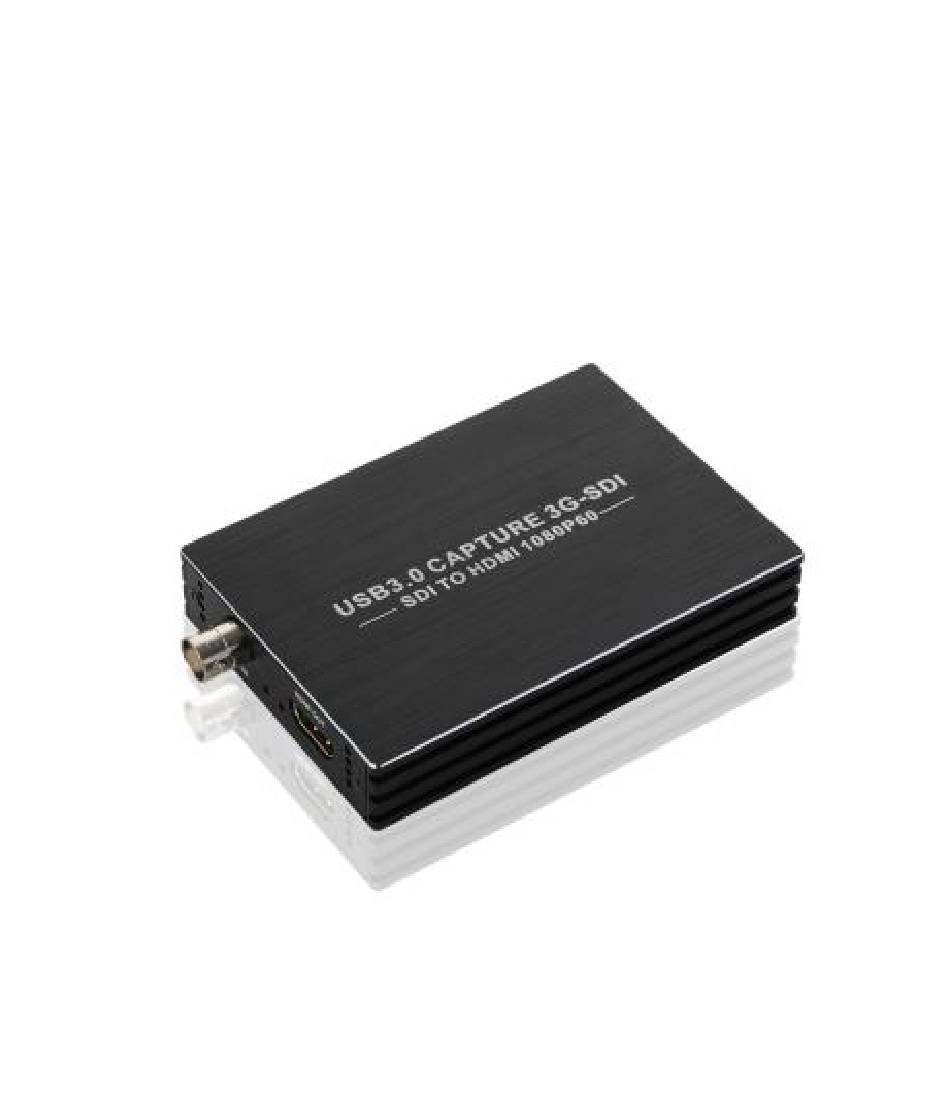

- Page 2 1. Introduction 3G-SDI capture card, it is easy to carry, have a superior performance,superior compatibility, simple installation and many other features. It can capture one 3G-SDI input ,output HDMI 1080p and USB 1080p60 signals. The SDI video capture meets UVC and UAC standard, without having to install drivers and settings, the real PnP, easy to use.
- Page 3 3. Feature It doesn't need to install a driver, and it is truly PnP. It is compatible with Windows, Linux, OS X operating systems USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0 The process of video and audio is done by the dongle and will not occupy the CPU.
- Page 4 4. Specification Host Interface USB3.0, *300-350MB/s, USB2.0, *40MB/s Input Interface SDI interface SDI Input Formats: SD-SDI,HD-SDI,3G-SDI HDMI Output Formats: 480i,480p,576i,576p,720p , 1080i,1080P USB3.0 Output Formats 640x360/800x450/1280x720/ Resolutions: 960x54 0/1920x1080 Frame Rate: 30/40/48/50/59.94/60 fps Size:112x72x19 (L/W/H, mm) Weight:130g Power consumption <= 2.5W Working Temperature 0-50 deg C Storage Temperature...
- Page 5 5. Connect and Operate 1. Connect the signal sources such as Blu-Ray Player, Play Station , audio/video receiver, satellite receivers with SDI output interfaces with a bnc cable to the device sdi input 2. Insert the USB3.0 cable head to USB3.0 interface, the other side of the cable into your computer's USB3.0 interface.
- Page 6 USB3.0→Connect the computer or notebook. →Connect the microphone. →Connect the headphone. SDI IN→Connect the SDI Signal. HDMI OUT→Connect the hdmi monitor or TV.
- Page 8 6. How to use OBS to record video? Step1: Clik:+ Choose:Video Capture Device...
- Page 9 Step2: Create a new name Step3: Device:Choose “USB3.0 HD Video Capture”...
- Page 10 Step4: Resolution/FPS Type:Choose “Custom”...
- Page 11 Step5: Resolution:Choose “1920x1080”...
- Page 13 Step6: Audio Output Mode:Choose “Output desktop audio(DirectSound)”...
- Page 14 Step7: √ Usb custom audio device Step8: Audio Device :Choose “USB3.0 HD Audio Capture”...
- Page 15 Step9: Clik “Start Recording”...
