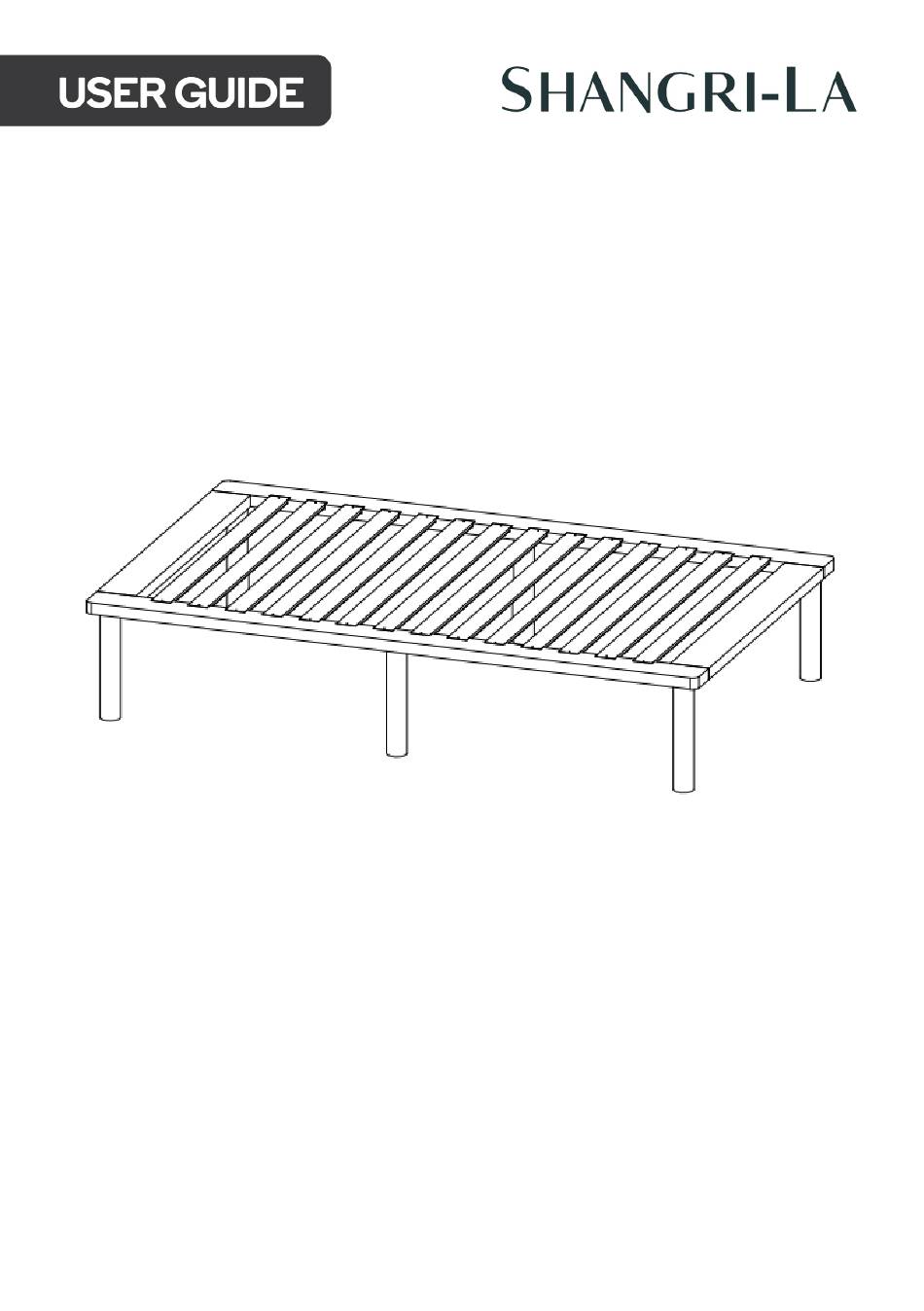

- Page 1 ORLANDO WOOD BED SINGLE SLORLAWBSNA, SLORLAWBSWA...
- Page 3 COMPONENTS...
- Page 4 Hardware A Ú x4Û B (x8) C (x8) D (x8) E (x8) F (x8) G (x1) J (x52) N (x6)
- Page 5 ASSEMBLY Step 1: Secure A into the middle hole either side of part 1. Repeat this process with the remaining part labelled 1. This will create two end assemblies. Note: Do not use power tools to assemble this bed as it may damage the components. A (x4)
- Page 6 Step 2: Ensuring the hole on B is facing outward, secure B into one part labelled 2. Insert C into B as shown below. Repeat this process with the remaining part labelled 2. This will create two side assemblies. B (x8) C (x8)
- Page 7 Step 3: Align the holes on end assemblies and connect them to the side assemblies. This will result in C to protrude through the holes on the top of the side assemblies. Inside one top hole, insert D, E and F over C. Using the G wrench, tighten F to secure into place.
- Page 8 Step 4: Ensuring N is facing down, align and insert N into the holes shown in the example below. Using a Phillips screwdriver (not supplied), secure N with J screws. J (x24) N (x6) ✗ ✓...
- Page 9 Step 5: Twist and secure parts labelled 4 onto the side and end assemblies as shown below. Step 6: Using a Phillips screwdriver (not supplied), secure parts labelled 6 onto the bed with J screws. J (x28)
- Page 10 Assembly complete.
- Page 11 NOTES...
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
