GRUNDFOS ASSITANT PUMP

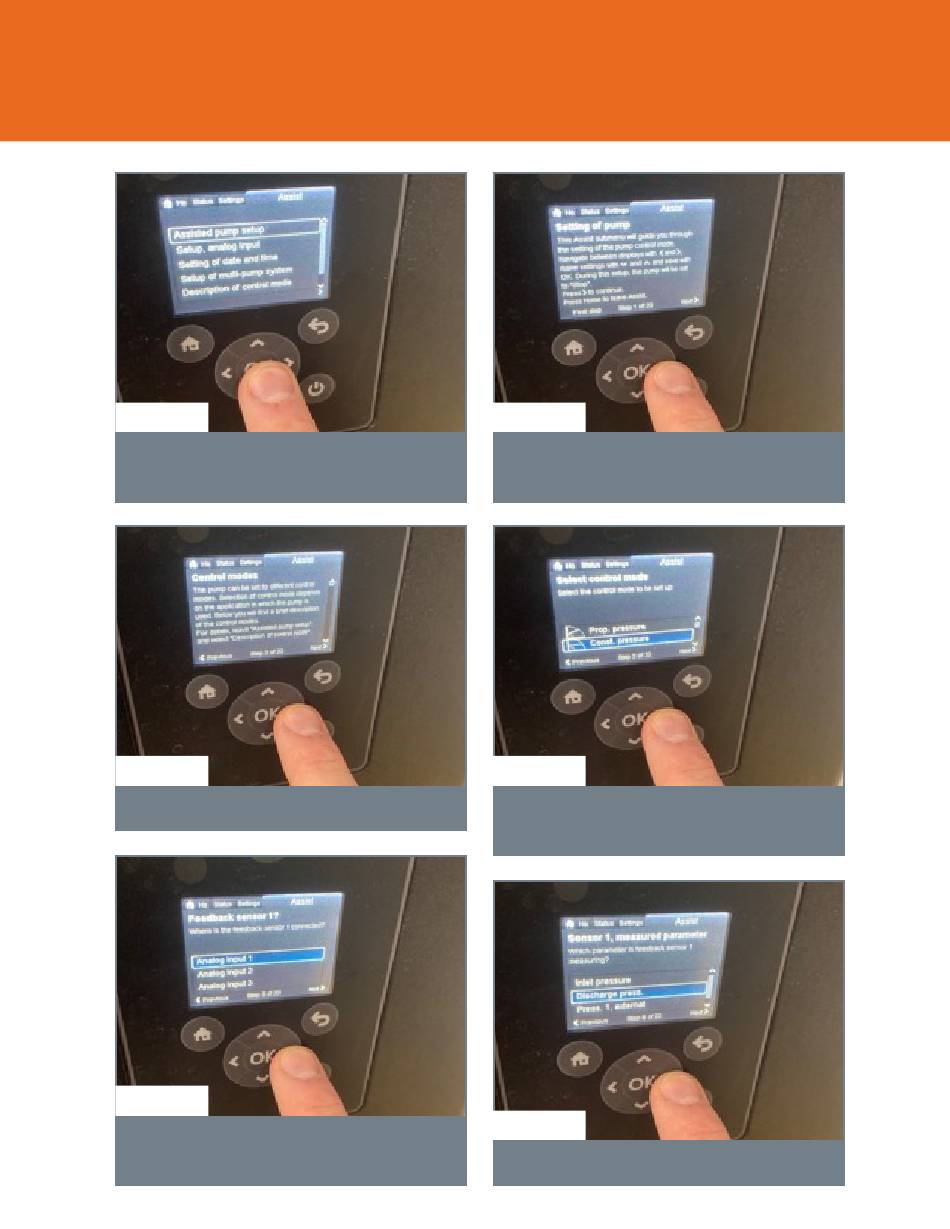

STEP 1

From your home screen, use the right arrow key
to scroll over to the tab labeled Assist. Highlight
"assisted pump setup" and select by pressing "OK."

STEP 3

Control mode page, read the page and use right
arrow key to move to the next page.

STEP 5

Confirm "Analog input 1" is highlighted blue and
press right arrow.

SETUP PROCESS

STEP 2

Inside "assisted pump setup" you will be brought to
page 1 of 22. Read the page and use the right arrow
key to scroll to the next page.

STEP 4

Confirm "Const. pressure" is highlighted blue and
press right arrow.

STEP 6

Confirm "Discharge press." is highlighted blue and
press right arrow.
