iDo Porsgrund 91372 Manual

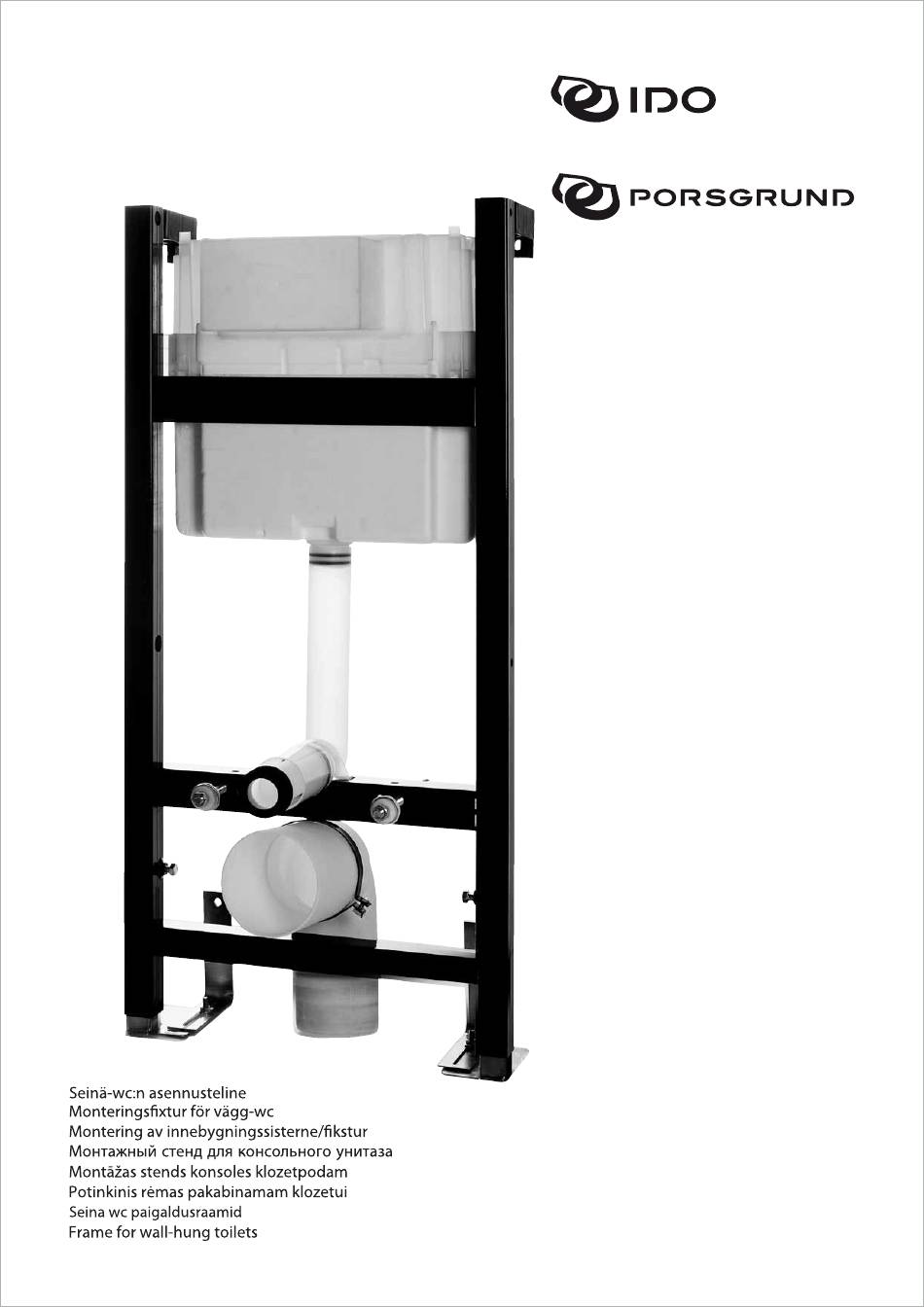

Frame for wall-hung toilets

Advertisement

Quick Links

126-12
91372

Advertisement

loading
Need help?

Need help?

Do you have a question about the Porsgrund 91372 and is the answer not in the manual?

Questions and answers

Summary of Contents for iDo Porsgrund 91372

  • Page 1 126-12 91372...
  • Page 2 1140 1080 Spare parts Pos. Name Sparepart No. Assembly kit IDO/PB (pos. 2-15) 69256 Cover, complete 69239 Pipe-in-Pipe Connection 69255 Stop valve 69228 Spacer, clip and cover 69206 Retaining clip for PEX-hose 69254 Flush pipe sealing 69231 WC-adapter 69205 Lip sealing WC adapter...
  • Page 3 OBS! Om dessa anvisningar ej följs och skada därefter uppstår på Montering produkten eller annan egendom så gäller ej IDOs garanti och IDO Vid montering är det viktigt att det finns åtkomst för service friskriver sig från allt ansvar för skada i sammanhanget.
  • Page 4 Внимание! Если вследствие несоблюдения настоящих указаний изделию или другому имуществу будет нанесен ущерб, IDO освобождает себя от гарантийных обяза- IDO освобождает себя от гарантийных обяза- освобождает себя от гарантийных обяза- тельств и не несет ответственности за причиненный...
  • Page 5 Svarīga informācija par ūdens noplūdes bojājumiem! Uzmanību! Ja šie nosacījumi netiek izpildīti un vēlāk rodas pro- dukta vai cita īpašuma bojājums, IDO garantija nav spēkā un IDO atsakās no jebkādas atbildības šī bojājuma sakarā. IDO WC-elemendid - paigaldised, mis ei tekita kunagi veekahjusid Enne seadmete paigaldamist kaetakse vannitoa seinad ja põrand märgade ruumide jaoks ettenähtud membraaniga.
  • Page 6 Note: If these instructions are not followed and there is subse- quent damage to the product or other property, the IDO war- Installation ranty will be invalid and IDO will accept no responsibility for any During installation, it is important to ensure that access is damage in this context.
  • Page 7 Регулировка высоты сиденья r õ Klozeto aukščio regullavimas IDO/Porsgrund Pozzi/Keramag Pozzi Keramag Easy Join 1070-1170 1080-1160 1080-1150 1080 - 1140 Pozzi Keramag Easy Join 1000...
  • Page 8 150-205 Click 180 mm 205-250 Ø 110 mm 145-250 mm...
  • Page 10 Min R= 250 mm PEX Ø 28...
  • Page 11 ryckknappens placerin rykknappens plassering Место панели управления сливным механизмом Vieta vandens nuleidimo mygtuku 69083, 69084 69087 69082 69081 Option...
  • Page 12 Fresh 10-70 mm 69081 69082 69083 min. 180 mm 69084 69087 10 - 100 mm Ø 60 69083 69087 (69082) (69081 69080) 69084 Ø 20 Ø 70 Ø 140 69082 69081...
  • Page 13 Pozzi, Keramag and other bowls than IDO/Porsgrund suuden täytyy olla 30 mm ja huuhteluputki tulee katkaista seinän pintaa pitkin. samt kapning jäms med vägg. veggtykkelse i tillegg må spylerøret kappes jevnt med vegg pat sienos. EE/ Kui seinale kinnituva wc-poti taga pole piisavalt ruumi pealejooksu torule toru tuleb lõigata parajaks viimistletud seinaga samas tasapinnas.
  • Page 14 Min 15 mm 15° 15° y+40 mm B + 3 cm...
  • Page 15 Herjdjlcndj gj j,cke;bdfyb/ maintenance instruction...
  • Page 16 2DQUHBD RONKJM@OO ¾ Skalošanas pogas Service: rinse button 69082...
  • Page 20 IDO Kylpyhuone Oy IDO Badrum Oy Ab 10600 EKENÄS Asiakaspalvelu Kundbetjäning puh 010 662303 tfn 010 662303 fax 010 662305 fax 010 662305 www.ido.fi www.ido.fi IDO Bathroom Ltd IDO Bathroom Ltd Marketing and sales Îòäåë ìàðêåòèíãà è ïðîäàæè Kaupintie 2, FI-00440 Helsinki Kaupintie 2, FI-00440 Helsinki ÔÈÍËßÍÄÈß...
