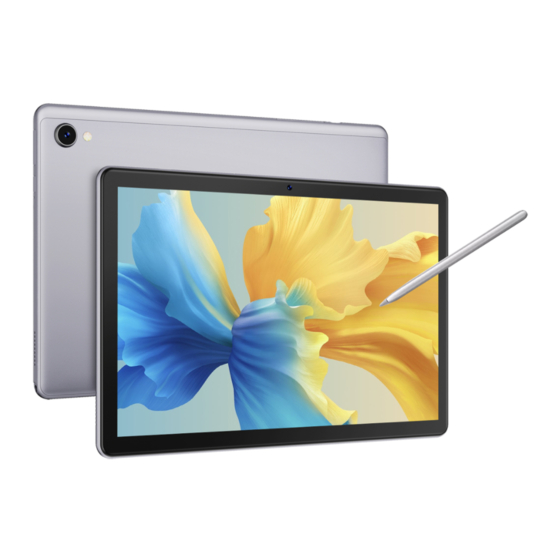

Cubot TAB 10 User Manual
  1. Manuals
  2. Brands
  3. Cubot Manuals
  4. Tablet
  5. TAB 10
  6. User manual

Cubot TAB 10 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
Product : Tablet
Trade Mark : CUBOT
Model Name : TAB 10
Shenzhen Huafurui Technology Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAB 10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cubot TAB 10

  • Page 1 User Manual Product : Tablet Trade Mark : CUBOT Model Name : TAB 10 Shenzhen Huafurui Technology Co., Ltd.

  • Page 2: Table Of Contents

    Contents Contents ..................... 1 1. Appearance and Keypad Operations ....................2 2. Using Memory Card as U Disk ...................... 2 3. Wi-Fi .............................. 3 4. Bluetooth ............................4 5. Calculator ............................5 6. Calendar ............................5 7. Camera ............................6 8.

  • Page 3: Appearance And Keypad Operations

    1. Appearance and Keypad Operations Keys Functions Short press this button to return home from any application or interface. home Long press it to open Google search. recent Short press this button toopen therecent items. Press it to return to the previous interface，or to close dialog box ,options’ back menu ,notification panel or the keypad.

  • Page 4: Wi-Fi

    3. Wi-Fi Wi-Fi provides as far as 300feet (100M) range of wireless network access. If you use cell Tablet to connect Wi-Fi , you should connect to the wireless access point or 「hot spots」. Notices：The availability and coverage of Wi-Fi signal depend on the number, infrastructure and other objects penetrated by the signal.

  • Page 5: Bluetooth

    Touch other Wi-Fi networks, and then you can connect to this network. Notices: in addition, mobile Tablet can also surf the Internet by GPRS. Our current SIM card GPRS to open after the default boot. Users can manually choose to open data connection, when for the single card, direct drop down the status bar, touch "data connection"...

  • Page 6: Calculator

    Notices：generally Bluetooth devices need password to be paired, often use「0000」as the default password. 4) The pairing and connecting status will show under the headset in the Bluetooth devices list. When ）means connected. Then you the headset connected to your Tablet, the status box will show this icon（ can use the headset to make or receive callings.

  • Page 7: Camera

    3) On the interface display and month schedule (date) recently click slide left and right can flip on a monthly basis. 4) Schedule interface shows the schedule for a certain time space (click can see forward initial time point, click can see back end time point). 5)click the search menu, enter the schedule name in the search box and you will be able to search for the set schedule.
  • Page 8 Press home, touch menu, select camera. Take pictures 1）Aim your object with the screen. 2）Touch the “shutter” button on the screen. 3）After taking，photos will save to the camera’s galley folder with the name of taking time. 4）You can view the photos by touching the preview box button. 5）Camera settings You can touch the button of “setting Menu”...
  • Page 9 Shared Settings of Camera and Video camera 1）Flash mode：Auto、On、off. 2）exposure: -3 -2 -1 0 +1 +2 +3 3) Anti-flicker: Auto, 50HZ, 60HZ Camera Settings Capture mode：Normal, Panorama mode, HDR Storage path:Tablet,SD card Volume key function:Shutter,Volume,Zoom Quick capture by double-click vol down key when screen off:capture with back camera, capture with front camera,off Shutter sound: ON, Off Save location: ON, Off...

  • Page 10: Clock

    Videos settings Video size: (back camera)HD1080p,HD720p,SD480p;(front camera)HD720p,SD480p,CIF Composition line:Close,Grid,Goldensection,Reticle White balance:auto,sunshine,cloudy,incandescent,fluorescent Antibanding: 50Hz,60Hz,Auto Face detect:ON MicroTablet switch: ON 8.Clock 1）Open the menu of application, click , The alarm clock Settings into the interface Alarm After functions set，Tablet will arrives in the setting time to alert you by ringing or vibrating to achieve it’s function.
  • Page 11 ”icons, Can create New Contacts Click“ Select save contacts to Tablet or a SIM card, into contact editing interface. You can edit contact head, name, teleTablet number, Email, save to and more, and then click "SAVE". In contact interface, click on the Menu button...
  • Page 12 a. Click Maun>Search，You can enter the contact search interface. Enter the list of Numbers or letters and part name that will be shown in search results. If no search to match the contact interface will appear “No contacts”. b. Menu>Settings-Contacts to display You can choose all contacts,Customize view of one a SIM card of contact, the mobile Tablet contacts Choose from the definition, but also on a SIM card and cell Tablet choice whether or not to showthat all the lone contacts.

  • Page 13: Fm Radio

    d. Menu >Labels Click on the "create label" icon to the new label. In "Label name" column input label name。 1) In a label, click on the Menu button, Menu functions 2) Menu>Rename label You can rename label name 3). Menu >Delete label You can delete the label.

  • Page 14: Gmail

    default file name can be arbitrary well-preserved input filename. Save to FM recording the default file. 3）Click " " closed FM radio, cannot listen to in the background. 4）Must be insert cable headTablets as antenna, but click on the horn button, can put the FM radio. 5）Click on the frequency of the rear of the five-pointed star icon, channel was added to the collection channel list.

  • Page 15: Messaging

    a. Open Gmail skip introduction screen>loading interface appears >select load b. Enter name, password then load E-mail account initialization,prompting “login successful” All Google accounts will be synchronized. 3) Creating and sending mails When creating mails, select mail > creating mails. Enter the address(recipient)、 theme and contents. Press MENU you could ‘append’...
  • Page 16 c. click MMS button, you can send message successfully. Send messages to group conversation Enter group numbers in the box of entering or choose by contacts，each number is divided by the comma in English. Notices：At present the orbit can only support up to 200 recipients. While the number of contacts added more than 200, will be prompted to "recipient"...

  • Page 17: Tablet

    13.Tablet When the icon of network server appears in the screen, you could dial or receive callings. The signal bar on the top right corner show the strength of network signal (When the signal with the strongest signal). Start dialing Open application’s main menu>Tablet>Dial the keyboard.

  • Page 18: Phots

    During the call, close the Tablet to the ear, the backlight will turn off automatically，which could save batteries and prevent inadvertently touching. Two-way call/multiparty call(conference call) Notices：This function needs that SIM card open multiparty call features. ” ，dial another call（or receive another call，Tablet default open “call waiting”，after Click“...
  • Page 19 Gallery interface A. In the main interface of the gallery, in the upper right corner of button, you can quickly log in to your Google account B. folder tile in the gallery main interface, folder thumbnail displayed on the folder name file. Files Interface In the library the interface, click on the images, enter the picture to see interface.

  • Page 20: Settings

    C. clip: straight, pruning, rotate, mirror D. Clip pictures a. If you want to adjust the size of the clip, please hold the edge of the cutting tools. The arrow appears clip, from the trim your fingers inside or outside the center to drag, can adjust its size. b.
  • Page 21 Bluetooth switch and setting up the touch Bluetooth to open , will automatically be search nearby Bluetooth open the equipment. •SIM cards Touch can choose the SIM card or stop using a SIM card The default SIM card, can choose a voice call, information, and choose which SIM CARDS to use data connection Data usage Data usage set up mobile data traffic limit, flow more than limit will be close mobile data services.
  • Page 22  Apps management application and delete installed applications. Personal • Security & location 1) Google Play Protect: Off/Tap to turn on protection. 2) Find My Device: Find My Device help YOU locate this device remotely. It also helps you keep your DATE safe, if the device is lost.

  • Page 23: Notices For The Use Of Tablet

    16. Notices for the use of Tablet Your Tablet is a product of superior design and craftsmanship and should be treated with care. The following suggestions can help you comply with the terms of repair kits, to extend the life of mobile Tablet. 1）Place the mobile Tablet and their parts and components out of reach of small children.
  • Page 24 Manufacturer's Name: Shenzhen Huafurui Technology Co., Ltd. Address: Unit 1401 & 1402, 14/F, Jinqi Zhigu Mansion (No. 4 Building of Chongwen Garden), Crossing of the Liuxian Street and Tangling Road, Taoyuan Street, Nanshan District, Shenzhen, P.R. China This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 5mm must be maintained between the user’s body and the Smartphone, including the antenna.
  • Page 25 Tx(Uplink): 880MHz~915MHz; Class3 24 (dBm) WCDMA Band 8 Rx(Downlink): 23.29dBm +1,7/-3,7 (dB) 925MHz~960MHz Tx(Uplink): 1920MHz~1980MHz; Class3 FDD-LTE Band 1 23.13dBm Rx(Downlink): (dBm)+2.7/-2.7(dB) 2110MHz~2170MHz Tx(Uplink): 1710MHz~1785MH Class3 FDD-LTE Band 3 23.25dBm Rx(Downlink): 1805MHz~1880 (dBm)+2.7/-2.7(dB) Tx(Uplink): Class3 FDD-LTE Band 7 2500MHz~2570MHz; Rx(Downlink): 22.96dBm (dBm)+2.7/-2.7(dB) 2620MHz~2690MHz...
  • Page 26 District, Shenzhen, P.R. China) hereby declares that this Smartphone is in compliance with the essential requirements and other relevant provisions of Radio Equipment Regulations (SI 2017/1206). According toRadio Equipment Regulations (SI 2017/1206), the TAB 10 can be used in Europe without restriction.
  • Page 27 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: ( 1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Information to the user.
