Kitchen Queen 380 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Thank you for purchasing a Kitchen Queen Cookstove.
We hope you enjoy many years trouble-free service from your new Kitchen Queen Cookstove!
If you have any questions or comments, write us.
"Wood energy at its best."
Kitchen Queen LLC.
375 Fuller Rd.
Crofton, KY 42217

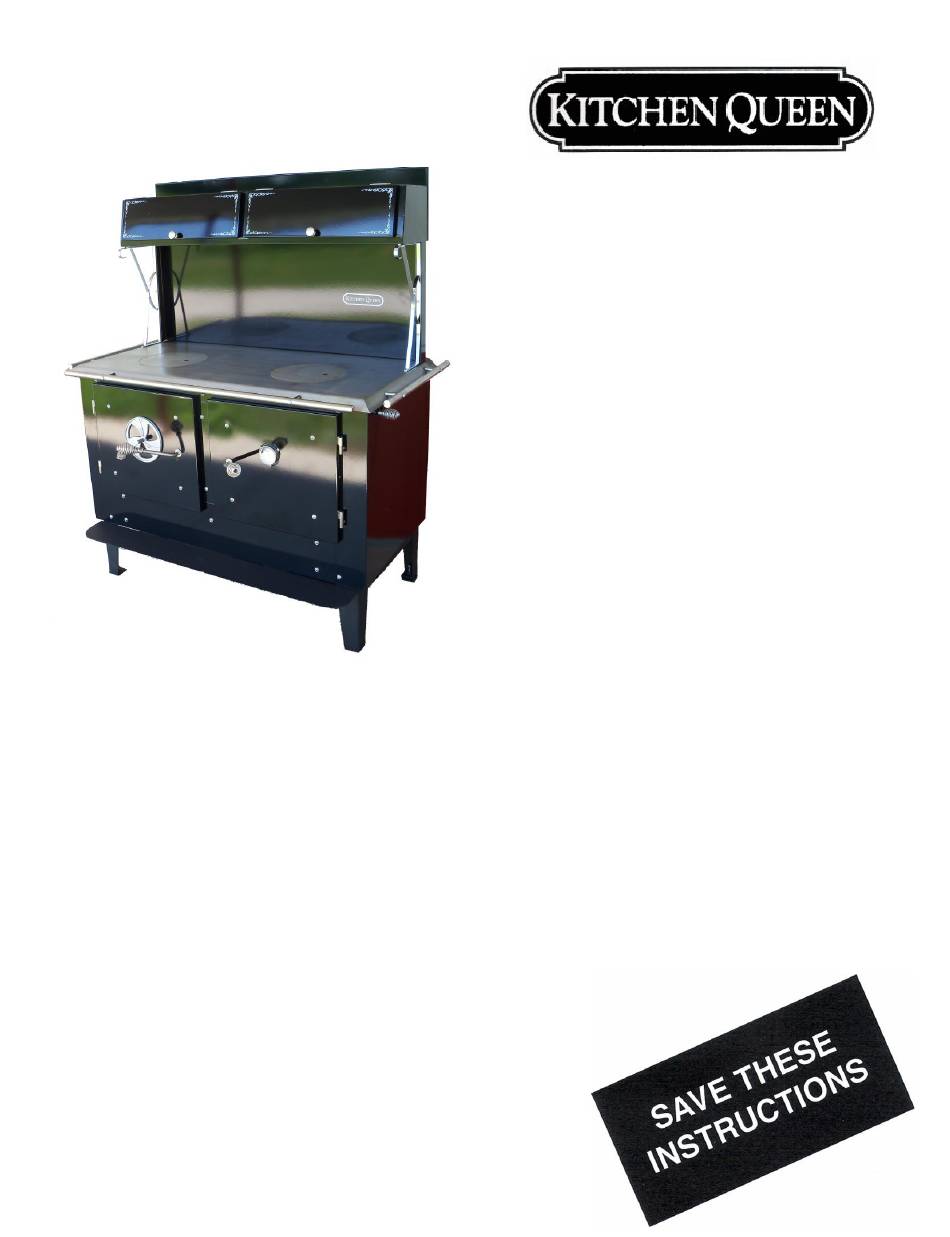

Models 380 and 480
KITCHEN QUEEN
KITCHEN QUEEN
Owner's Manual
Owner's Manual
The
Kitchen
Queen
Stove

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 380 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kitchen Queen 380

Summary of Contents for Kitchen Queen 380

  • Page 1 Stove “Wood energy at its best.” Thank you for purchasing a Kitchen Queen Cookstove. We hope you enjoy many years trouble-free service from your new Kitchen Queen Cookstove! If you have any questions or comments, write us. Kitchen Queen LLC.

  • Page 2: Clearance To Combustibles

    CAUTION !! Hot while in operation. Keep children, clothing, and furniture away. May cause skin burns. DO NOT use chemicals or fluids to start the fire. DO NOT burn garbage or flammable liquids. DO NOT connect to any air distribution duct or system. This stove is designed to burn wood.

  • Page 3: Starting Your First Fire

    Open the draft control on the door all the way. Now the stove is wide open INSTRUCTIONS Assembly and Installation for Models 480 and 380 Remove the stove from shipping crate (if crated) by removing the three leg bolts. Remove all wooden or paper packaging material, being careful not to pry against the sides of the stove as scratching or chipping may result.
  • Page 4 Page 3 4) Move your Kitchen Queen to the desired location and on top of a class 1 floor protector. The floor protector may not be installed on a carpeted surface. 5) The left rear leg is adjustable. Screw the adjusting bolt down until the stove stands solidly.
  • Page 5 Page 4...

  • Page 6: Using The Oven

    ASHES Before adding more wood, you should rake the ashes with the poker to break up any clods and cause the fire ashes to sift down into the ash pan. Always allow several inches of ashes to remain on the grate.
  • Page 7 SOME ADDITIONAL TIPS Never reduce the stovepipe from the stove to the chimney. It will reduce the efficiency of the stove and you might have trouble getting the baker hot. Avoid horizontal pipes as much as possible and keep them as short as you can. Sloping pipes are much better than flat pipes.

  • Page 8: Combustible Wall Chimney Connector Pass - Throughs

    Combustible Wall Chimney Connector Pass - Throughs Method A. 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Standard Specification for Clay Fire Linings) or its equivalent.
  • Page 9 NOTES: 1. Connectors to a masonry chimney, excepting method B, shall extend in one continuous section through the wall pass-through system and the chimney wall, to but not past the inner flue liner face. 2. A chimney connector shall not pass through an attic or roof space, closet or similar concealed space, a floor, or ceiling.

  • Page 10: Factory-Built Chimney

    Factory-Built Chimney When a prefabricated metal chimney is used, the manufacturer’s installation instructions must be followed. You must also purchase (from the same manufacturer) and install the ceiling support package or wall pass-through and “T” section package, firestops (where needed), insulation shield, roof flashing, chimney cap, etc.

  • Page 11: Replacement Parts List

    Description Gasket Set Spring Handles Reservoir Reservoir Lids Cleanout Door Grate Poker Lid Lifter Safety Rails Oven Racks Firebricks Sideshelf Ashpan Stove Lids Draft Control Shelf Bracket Running Board Oven Thermometer Specify Model 480 or 380 when ordering Page 10...

This manual is also suitable for:

480
