Rescue 42 TeleCrib Strut Jack Manual

Hide thumbs

Advertisement

Table of Contents

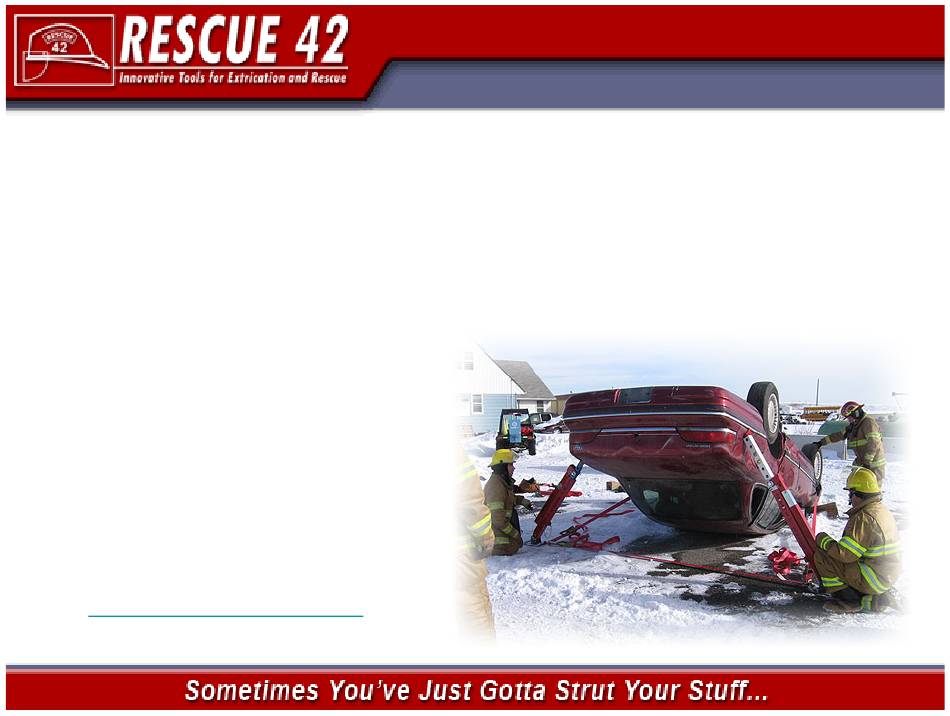

The TeleCrib® Strut Jack is a removable 8,000 lb jack which fits over the strut
body and gives the rescuer a controlled means for lifting or lowering a load.
When needed, the Strut Jack rests on the baseplate and pins into the white or
blue tube.
The Jack has a 15" extension, at which point, the strut can be pinned, the Jack
lowered and re-pinned, and continue lifting up to the entire length of the long
strut body.
Because it is removable, it can be
moved from strut to strut as needed.
The TeleCrib® Strut DVD shows
Tripod setup and operation in detail.
To request a free instructional DVD,
please contact Rescue 42, Inc. toll
free at (888) 427-3728 or by e-mail
at Rescue42@rescue42.com.
4,000 lb working load / 8,000 lb test load

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TeleCrib Strut Jack and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rescue 42 TeleCrib Strut Jack

  • Page 1 The TeleCrib® Strut DVD shows Tripod setup and operation in detail. To request a free instructional DVD, please contact Rescue 42, Inc. toll free at (888) 427-3728 or by e-mail at Rescue42@rescue42.com. 4,000 lb working load / 8,000 lb test load...
  • Page 2 Strut Jack Operation – WARNING – The Strut Jack is a powerful tool for moving loads. Proper care and planning must be used to ensure that you maintain control of the load. Only move a load the minimum amount needed to free or access the victim. Moving a load should be done slowly and methodically.
  • Page 3 Strut Jack Operation Strut Jack Setup: To extend a strut: Make sure that the jack is cranked all the way in. (1) Slide the base bracket over the red strut and slide it down until the bracket is resting on the baseplate ears. Check that the spring(s) on the yellow strut pins in the red strut are not going to be obstructed by the jack body.
  • Page 4 Strut Jack Operation Strut Jack Setup (cont.): (3) Remove the manual adjustment pin from the jack (4) Extend the jack head until it is above the red section and replace the pin. (5) Crank the jack until the hole in the jack head lines up with a hole in the strut and insert a steel strut base pin through the jack head and strut.
  • Page 5 Strut Jack Operation Strut Jack Setup (cont.): Remove the yellow pin(s) from the red strut section. Crank the handle to extend the strut and move the load. If you extend the blue section to its limit, the interlock will start pulling out the white section.
  • Page 6 Strut Jack Operation Strut Jack Operation: If you are extending the white tube you must take great care not to extend the white section past the interlock (indicated by the orange safety bar appearing). This interlock may be damaged if the strut is extended too far. You should observe the small holes on the top sides of the red tube to observe the interlock button when it snaps into one of the holes at full extension.
  • Page 7 When the strut is extended or lowered and pinned at the desired position, remove the jack for use elsewhere. Rescue 42, Inc. (888) 427-3728 www.RESCUE42.com...
