Stid SPECTRE NANO Installation Procedure page 3

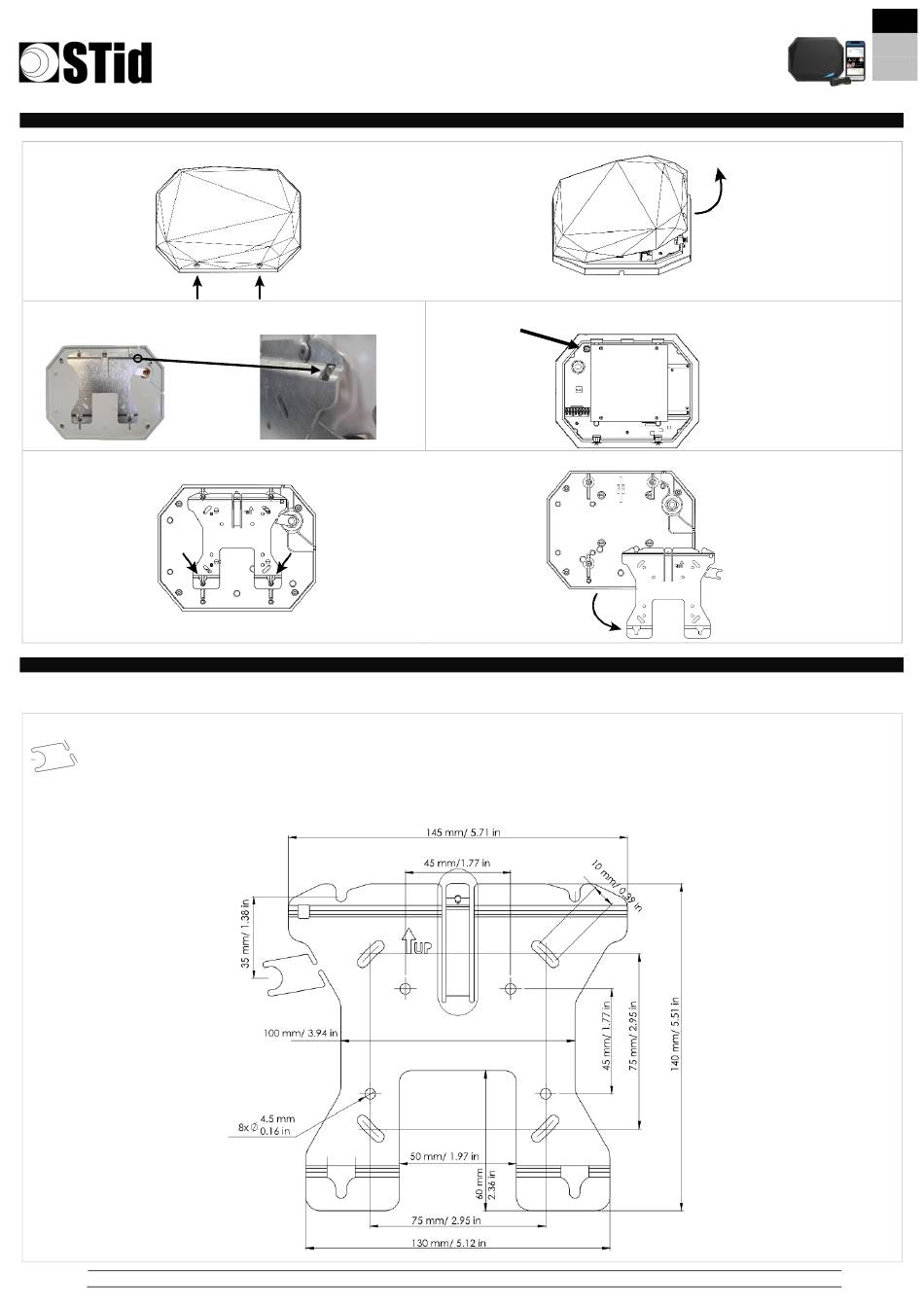

On delivery, the metal mounting plate is mounted on the reader.
Step 1: Open the reader by unscrewing the two screws and lifting the cover.
The reader is equipped with a locking screw that secures the reader plate
to the metal mounting plate.
Step 3: Remove the metal mounting plate by exerting pressure on the metal plate while sliding it.
Leave the four mounting screws in place.
To fix the reader to a wall with the metal mounting plate please follow the Steps 1 to 3 to remove the metal mounting plate from the reader. Then
follow the next steps:
Step 1: Place and mount the metal mounting plate onto the wall. Use the mounting plate as a drilling template.
: this part serves as a marker for drilling the passage of the cables in the cable gland. It can be removed by bending or tur ning it on itself or by cutting
it at the base.
© STid - 20 PA des Pradeaux FR13850 Gréasque - NI1149X01 - Page 2 sur 12 - Ed. 06/01/2022
SPECTRE nano
UHF & Bluetooth reader
®
Installation procedure
SPECTRE nano
Lecteur UHF & Bluetooth
®
Notice d'installation
Mounting
Step 2: Unscrew the locking screw with Torx T8 tool, without removing the screw
from the plate so as not to lose the seal.
Wall Mounting
