Summary of Contents for ENOTECNICA PILLAN BACCO 2

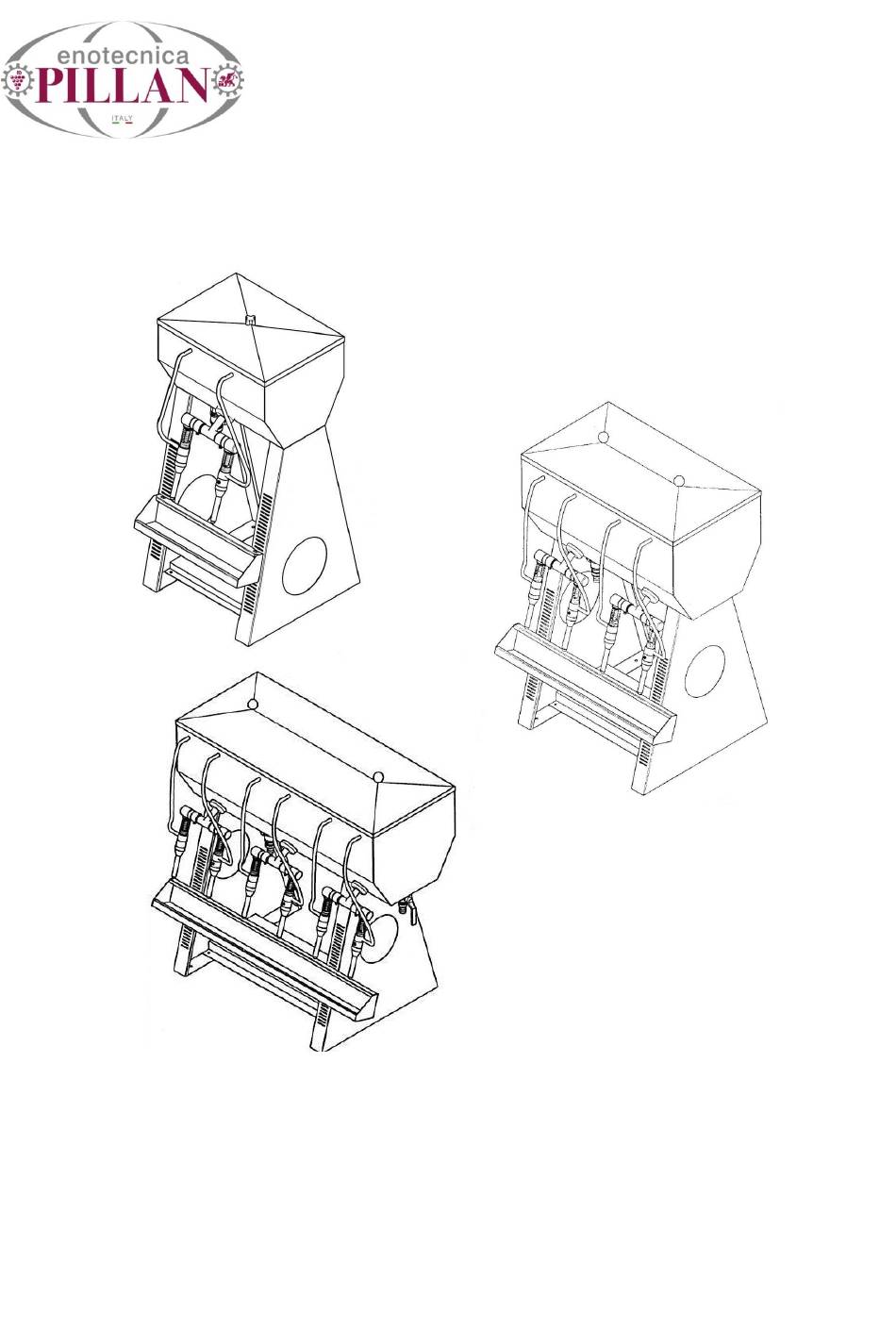

- Page 1 FILLER BACCO 2-4-6 CONNECTIONS INSTRUCTION MANUAL AND SPARE PARTS...
-
Page 2: Table Of Contents
Filler BACCO INDEX 1. INTRODUCTION ............................... 4 HOW TO READ THIS MANUAL ......................4 MACHINE MANUFACTURER DATA ....................5 TECHNICAL ASSISTANCE ........................ 5 WARRANTY ............................5 2. DESCRIPTION ..............................6 DESCRIPTION OF THE MACHINE ....................6 TECHNICAL DATA SHEET ........................ 6 PURPOSE OF USE .......................... - Page 3 THIS BOOKLET IS THE PROPERTY OF ENOTECNICA PILLAN. ANY REPRODUCTION, EVEN PARTIAL, IS PROHIBITED TYPE OF DOCUMENT: INSTRUCTION MANUAL FOR THE FOLLOWING MACHINE: FILLER BACCO 2 – 4 – 6 CONNECTIONS EUROPEAN COMMUNITY LEGISLATION Instructions taken from the following have been used in composing this manual: Reference...
-
Page 4: Introduction
MUST CAREFULLY READ THE INSTRUCTIONS IN THIS MANUAL AND FOLLOW THEM WHILE EXECUTING ALL OPERATIONS. ATTENTION: ENOTECNICA PILLAN is not responsible for: damage caused by using the machine for aims different than those indicated; damage caused by unqualified personnel attempting to repair the machine. -
Page 5: Machine Manufacturer Data
WARRANTY ENOTECNICA PILLAN s.r.l. guarantees that the machine was built in compliance with existing norms, in particular those related to the health and safety or workers. The product warranty lasts 12 months; electrical parts are excluded from the warranty. -
Page 6: Description
FILLER BACCO is manufactured in STAINLESS STEEL AISI 304. Depending on the several models, it can be supplied without float, with ball float, with electric float, combine with a Filter, with a Pump or only Filler. TECHNICAL DATA SHEET DESCRIPTION BACCO 2 BACCO 4 BACCO 6 Size... -
Page 7: Transportation
Filler BACCO 3. TRANSPORTATION The Filler is shipped completely assembled and packed in a box. Upon delivery, check that the machine was not damaged during transportation and that you receive all the pieces indicated in the shipping papers. In case of damage, it is mandatory to tell the carrier and to immediately inform both the manufacturer and the shipper. -
Page 8: Installation And Working
Filler BACCO 5. INSTALLATION AND WORKING WARNING: General introduction. Remember that all the operators must respect the intended destination of use of the machine. Safety warning: The personnel charged with operating the machine should know this manual well and all the information relative to safety. -
Page 9: Positioning
Filler BACCO POSITIONING Be sure to place the filler in a safe place to prevent that any accidental knocks or vibrations can drop it and then cause damages to people or property. Adjust the P front feet so that the filler is stable. Connect rubber hoses to the incoming fittings E for the filling and to the output fittings U for the dumping of the liquid. - Page 10 Filler BACCO Insert the spout 4 within the neck of the bottle B and place it on the bottle holder 1. Bear in mind that once it is placed, the head of the spout 5 has to remain in open position. Once the bottle is filled, you have to push up to remove it from the bottle holder 1, then you have to pull out from the nozzle 4, which will close, preventing the discharge of the liquid.
-
Page 11: Ge" Model With Electric Float
Filler BACCO “GE” MODEL WITH ELECTRIC FLOAT Fillers Bacco GE with electric float have on the right side of the frame a switchboard connected to an external pump or installed directly on the filler (mod. GE-PE). The floating system is constituted by two level probes, placed inside the tank, which control automatically the pump connected to the switchboard. - Page 12 Filler BACCO 5.4.3 Switchboard Compliance The switchboard (serial number 03-14-QRI) complies with the normative CEI 17-13/1, concerning low voltage switchboards type ANS. In case of Three Phase Switchboard, see diagram attached aside IT’S FORBIDDEN Perform any work on the electrical devices. In particolar, it’s forbidden: ...
-
Page 13: Maintenance
Filler BACCO 6. MAINTENANCE ORDINARY MAINTENANCE ACTIVITIES (GENERAL INFORMATION) 6.1.1 Technical warnings for good maintenance For good maintenance: - use only original spare parts, suitable equipment for the task and in good conditions; - respect the frequency of interventions indicated in the manual for programmed maintenance (preventative and periodic);... -
Page 14: Cleaning The Machine
Filler BACCO CLEANING THE MACHINE Cleaning the machine permits the removal of eventual incrustations or deposits which may compromise the optimal functioning of the machine and the processed product. When the manufacturing is finished, empty the tank through the ball valve 9, placed under it, and wash carefully the tank and the spouts. - Page 15 Filler BACCO TAV. I...
- Page 16 Filler BACCO TAV. II...
- Page 17 Filler BACCO TAV. III TAV. IV...
-
Page 18: Waste Disposal And Demolition
Filler BACCO 8. WASTE DISPOSAL AND DEMOLITION WASTE DISPOSAL When using the machine waste materials are generated during processing which must be collected, recycled or disposed of in accordance with the laws that exist in the country where the machine is installed. Machine parts which are substituted must also be handled in the same way. - Page 19 DESTINATI A VENIRE A CONTATTO CON I PRODOTTI ALIMENTARI REGULATION CE n° 2023/2006 GOOD PRACTICES OF MANUFACTURING OBJECT INTENDED FOR CONTACT WITH FOOD PRODUCTS Amministratore Legale Enotecnica Pillan Legal Administrator Enotecnica Pillan Camisano Vicentino li, _____________ Ivo Pillan Il responsabile del Fascicolo Tecnico...
- Page 20 ENOTECNICA PILLAN srl Via Chiesa R. 4/6 - 36043 Camisano Vic. (VI) Italy Tel. +39 0444.719004 - Fax +39 0444.719044 Web site: www.enotecnicapillan.it E-mail: info@enotecnicapillan.it...
