Summary of Contents for Prodigy SWL-300

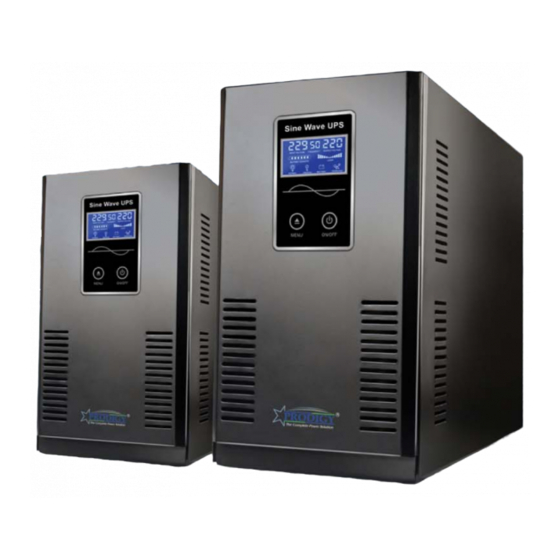

- Page 1 User’s Manual Digital Smart Sine Series True Line Interactive PWM Sine wave UPS with AVR 3000VA ~ 7500VA Long and Short Backup UPS ideally suited for Servers, Network Devices, I.T Based Systems, ATM Machines, CCTV Security Systems and I.P Based Telephone Exchanges Ver.
-
Page 2: Installation Of Ups
Thank you for choosing Prodigy Technologies UPS System, It is designed for a safe & reliable operation with minimal maintenance. Before you start please read this manual. It contain instruction concerning a safe installation and operation of the UPS. It helps you to get the highest performance and to operate efficiently. - Page 3 Connect the battery to the system. Connected the battery polarity carefully, Red is positive and Black is Negative, for 48 V batteries will be connected in the series or shown below. Press the on switch. The UPS goes on and the output voltage display should glow and shows the output voltage of UPS on Battery.
-
Page 4: Troubleshooting
Connect the output load. The Load bar graph should indicate the connected load on the Switch on the entire load connected and check that the load is functional, now switch of the input electrical main, the inverter should start and the load should run on the battery. - Page 5 Kindly make available the model no., serial no., date of purchase and complete description of the problem with Display status before contacting PORDIGY or authorized services center for assistance. 69-A, Block – 6, P.E.C.H.S, Karachi | Tel: - 0213-45345315-17 | 0301-8280708 support@prodigy.com.pk Ver. 2.1 (2019)
- Page 6 Technical Specifications Model SWL-300 SWL-400 SWL-500 SWL-600 SWL-750 Power Rating (VA) 3000 VA 4000 VA 5000 VA 6000 VA 7500 VA BATTERY VOLT 24/48 VDC 48VDC 48VDC 48/72 VDC 72 VDC INPUT Input Supply / Frequency 220 VAC Single Phase / 45-65 Hz...
-
Page 7: Risk Of Electric Shock
Special Symbols The following are examples of symbols used on the UPS to alert you the important information. RISK OF ELECTRIC SHOCK - Indicates that a risk of electric shock is present and the associated warning should be observed CAUTION; REFER TO OPERATOR’S MANUAL - Refer to your operator’s manual for additional information, such as important operating and maintenance.
