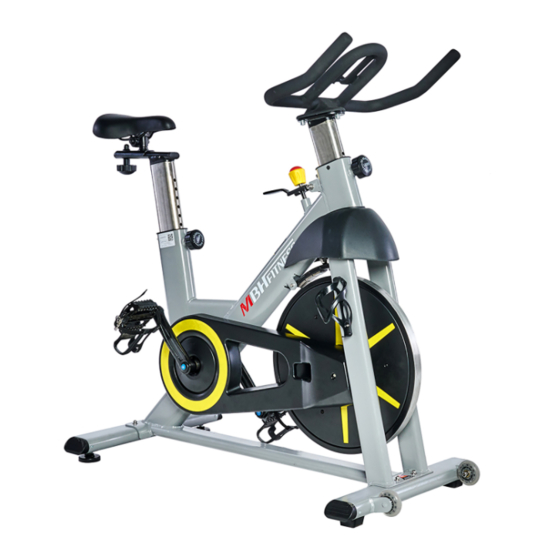

Page 1 KD5801 INDOOR EXERCISE BIKE OWNER'S MANUAL...
Page 2 ATTENTION Assembly Instruction Video You can scan this QR code to enter into your YouTube page and follow the product assembly videos. Hope it will be helpful for you. Contact us at Instagram. Contact us at Facebook. (Scan this QR code) (Scan this QR code) PLEASE DO NOT RETURN THIS PRODUCT UNTIL YOU CONTACTED US.
Page 3 ▲ Prior to assembling the machine and having your workout, please carefully read this manual which contains information about how to assemble and use it correctly. We assume that you have read it when you are using it. ▲ Please carefully fill out the warranty card and well retain it after your purchase.
Page 4: Table Of Contents
CONTENTS SAFE USE NOTICES ···················································1 SAFE EXERCISE NOTICES ··················································3 DESIGN ILLUSTRATION ··················································4 ASSEMBLY INSTRUCTIONS ···············································5 DEBUGGING ····································································9 PRODUCT DESCRIPTION············································11 BLUETOOTH INSTRUCTION············································13 BEGINNER’S GUIDE ·························································15 ROUTINE MAINTENANCE ·················································18 WARRANTY ····································································19...
Page 5: Safe Use Notices
SAFETY INSTRUCTIONS 1. To ensure that you can use this bike safely, reliably and c o m f o r t a b l y, p l e a s e r e a d t h e i m p o r t a n t n o t i c e s b e l o w a n d a l l t h e o p e r a t i o n i n s t r u c t i o n s p r i o r t o u s a g e .
Page 6 12. The bike must be used in a dry room in case of any damage to it. (WARNING) 13. The bike is intended for use solely in the manner described in this manual. (WARNING) 14. Failure to follow these instructions to use the product, we promised quality assurance certificate will not be within range.
Page 7: Safe Exercise Notices
SAFE EXERCISE NOTICES 1. Indoor bike can achieve the effect of exercise and fitness. 2. The lower intensity gradually increases to the higher intensity. Keep your body and head facing forward when exercising, and don’t look backwards when a indoor bike is running. If you feel chest pain, nausea, dizziness, or shortness of breath, stop exercising immediately.
Page 8: Design Illustration
DESIGN ILLUSTRATION Tablet Holder Child Safety Lock Handlebar Resistance Knob Handlebar Height Adjustment Knob Emergency Brake Grip Protective cover Seat Height Adjustment Knob Seat Bottle Holder Flywheel Front & Rear Adjustment Knob Transportation Wheels Pedal Front Tube Chain Cover Rear Tube Floor Stabilizer...
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS Please confirm whether the parts are complete before installation. ① ② ③ ④ ⑤ ⑥ ⑫ ⑪ ⑩ ⑨ ⑧ ⑦ Parts list Name Quantity Main Frame Handlebar Handlebar Post Seat Post Seat Seat Slider Front Tube Rear Tube Pedal(L/R) Bottle Holder Front &...
Page 10 Parts List ① ⑤ ⑨ Hexagon socket head cap Crescent wrench tightens the Allen wrench (4#) bolts M8 * 50mm(4pcs) pedals ② ⑥ Hexagon socket head cap Wrench (13#/16#) screws M8*14mm（3pcs） (Including flat washer and elastic washer ) ③ ⑦ ⑩...
Page 11 Step 2 Assemble the left and right pedals Accessories: pedals (L, R), crescent wrenches, open-end wrenches (17#-19#) ⑨ ⑤ ⑦ Take the pedals, thin nuts, crescent wrenches, and open-end wrenches, distinguish L/R according to the label, and install them on the corresponding crutches and tighten it, and use the crescent wrench to fasten the thin nut on the thread of the pedal.
Page 12 Step 4 Assemble the adjustment seat core and the adjustment handle core Accessories: Seat/Handlebar Height Adjustment Elastic Knob(2pcs), Allen wrench(4#) ⑫ ⑨ ⑫ ⑫ Limit screw Take an Allen wrench to remove the limit screw, take the assembled adjustment seat core, adjustment handle core and elastic knob, and re-fasten the limit screw on the instrument with an Allen wrench.
Page 13: Debugging
DEBUGGING The debugging of indoor bicycles should pay attention to the following aspects: 1.The front and rear adjustment and up and down adjustment of the seat must be smooth. 2.Whether the shaking body is stable, if there is shaking phenomenon, the two adjustment bases of the rear tube can be adjusted accordingly to keep the body stable.
Page 14 ADJUSTING THE PEDAL STRAP Place the ball of each foot in the toe clips so the front of your shoe fits snugly in the toe clip cage. Rotate one foot to within arm’s reach and pull the strap until the toe clip cage fits your shoe snugly. Insert the strap back into the hoop of the toe clip.
Page 15: Product Description
PRODUCT DESCRIPTION Technical Reference number Product ruler inches: 1125mm (L) * 550mm (W) * 1140mm (H ) 44.3in(L)*21.65in(W)*44.88in(H) Resistance system: Magnetically controlled resistance Net weight: 35kg/77.16lbs Gross weight: 41 kg/90.4lbs User weight: ≤ 150kg/331lbs H 1140mm L 1125mm L 550mm Machine function standard Our product has passed the EN ISO 20957-1 and EN 957-10 general safety experiment.Our company reserve the right of technical improvement for this...
Page 16 Product Features 1. This is a new type of indoor bike that integrates training and exercise.The structure is scientific and the appearance is simple.Ergonomically designed makes your cycling more safe and comfortable. 2. Frame: The body adopts high-strength positive oval tube, simple and stylish, durable.
Page 17: Bluetooth Instruction
BLUETOOTH INSTRUCTION Step One, scan QR on the bike and download APP. 扫一扫，连接智能 Scan and connect Step Two, After installation, use the APP scan the same QR (Make sure cellphone Bluetooth is open) Note：Before scanning, please ride the bike to activate Bluetooth function, then it is available to connect.
Page 18 Battery replacement method for Bike Bluetooth Sweat Cover Take a Phillips screwdriver to remove the screws of the bicycle sweat cover and remove the sweat cover. Battery slot Remove the battery as shown in the picture above and replace it with a 3V battery of the same type.
Page 19: Beginner's Guide
BEGINNER’S GUIDE Below we provide some suggestions and training methods. After using this product, you can improve your physical fitness and increase physical strength through the effect of exercise . Please refer to the following instructions. If you do not exercise regularly for a long time, please consult a doctor to understand your physical condition,Avoid personal injury.
Page 20 time . If you want to gradually increase the amount of exercise to strong training, the heart rate value needs to increase to 70% -85% of the maximum value . This training can be achieved after increasing the resistance value at a higher exercise frequency or a longer period.
Page 21 fatigue. 2. There are two specific methods for the intensity riding method. One is to stipulate the riding speed (how many M i l e s / h o u r ) , s u c h a s r i d i n g a t a s p e e d o f 2 0 k i l o m e t e r s p e r h o u r for 30 minutes.
Page 22: Routine Maintenance
ROUTINE MAINTENANCE *This indoor bike must be used on dry, ventilated and level ground. *kept clean daily cycling , careful not to damp cloth , to prevent rust plating. *Plating parts should be coated with anti-rust oil once every half a month. *After each use, check whether all screws and adjusting handles are loose and fasten them in time.
Page 23: Warranty
WARRANTY 1.Scope of warranty Warranty scope: Non-artificial damage that occurs during normal use of the product under proper maintenance . The warranty card is limited to the original purchaser and cannot be transferred. 2.The warranty period is one year from the date of purchase. 3.The following conditions are not covered by the warranty: ①...
Page 24 PARTS REQUEST FORM Shandong MBH Fitness Co., Ltd. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO support@mbhfit.com ORDER ID: NAME: ADDRESS: CITY: STATE: ZIP: TELEPHONE: (Day) (Night) SERIAL#: MODEL#: PURCHASE DATE: PLACE OF PURCHAASE: PART# DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS”...
Page 25 FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 26 Shandong MBH Fitness Co., Ltd. Website: www.mbhfit.com After Sales Support Email: support@mbhfit.com After Sales Service Hotline : (+1)888-666-4018 Factory address: New Eastern Area, Ningjin County, Dezhou City, Shandong Province, China...
