SLICE-QT Four-Channel Temperature
Controller Quick Start Guide
Model No. SLICE-QT
Document Revision: 1
Document Last Updated on 2021/08/26 14:26
Please read
Limited Warranty
SLICE-QT Owner's Manual
SLICE-QT
web page.
Contact
sales [at] vescent [dot] com

Description

The SLICE-QT is a high-precision temperature controller (see
plants with sub-millikelvin precision.

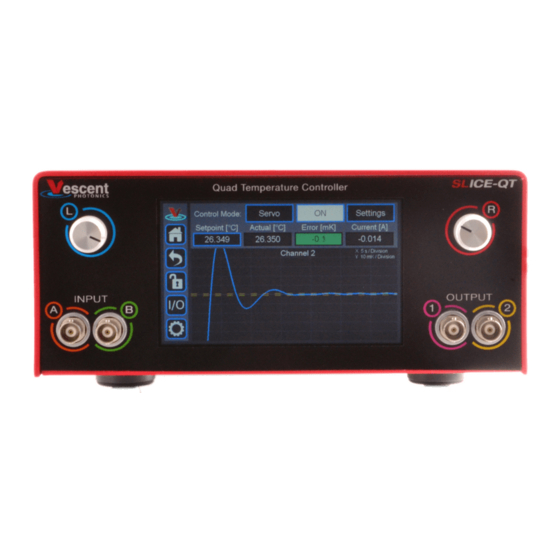

Fig. 1: The SLICE-QT
Purchase Includes
SLICE-QT Temperature Control Unit
AC power cord with appropriate wall plug for you location (if known)
Four single-ended 6-ft control cables
List of Symbols
Product Manuals - https://vescent.com/manuals/
1/5
and
General Warnings and Cautions
for questions and corrections, or to request added functionality.
1)
Warning. Pay special attention to procedures
and notes.
SLICE-QTC Four-Channel Temperature Controller Quick Start Guide
prior to operating the SLICE-QT.
figure
1). It will control up to four thermal
