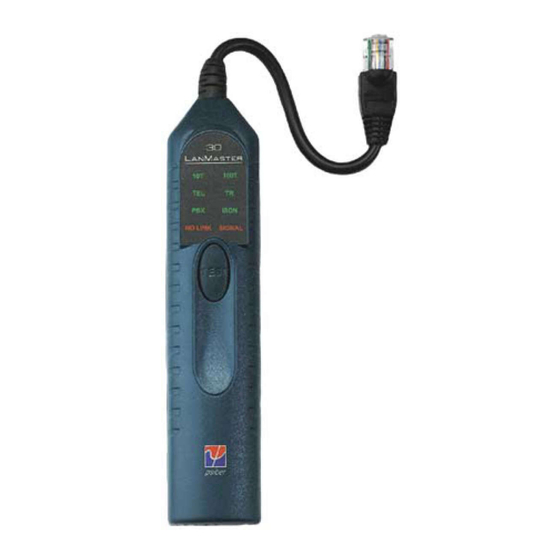

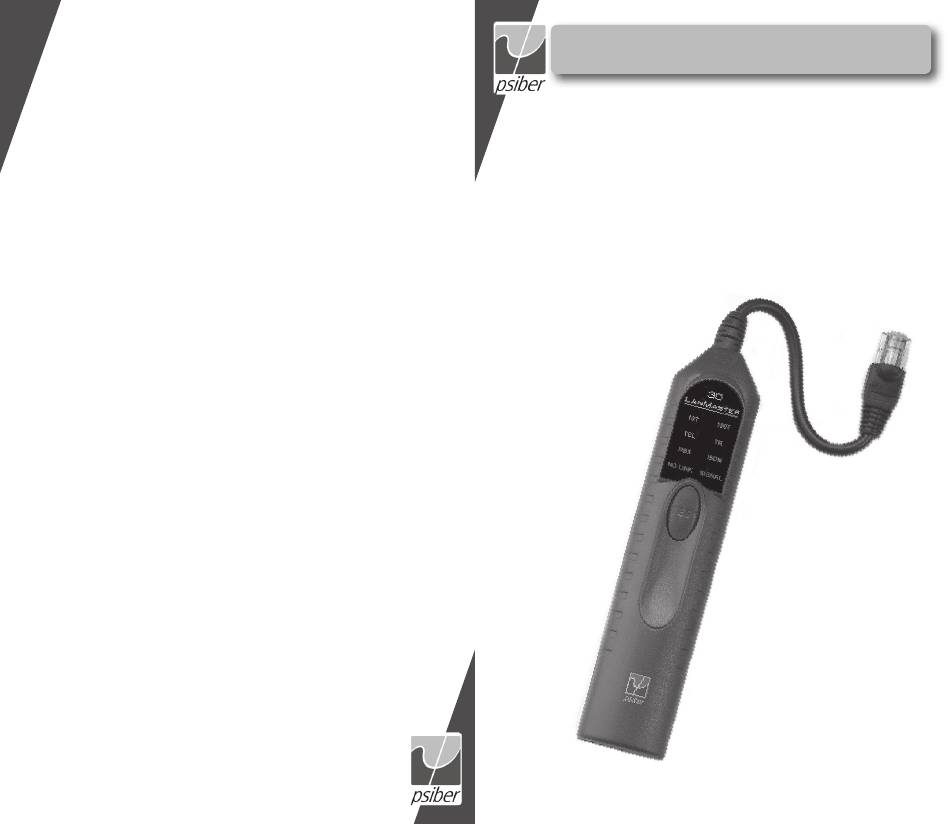

- Page 1 PROFESSIONAL NETWORK TESTING & PROTOCOL ANALYSIS ASTER USER’S GUIDE Psiber US: Psiber Data Sytems Inc. 7075-K Mission Gorge Road San Diego, CA 92120 www.psiber.com Psiber Europe: Psiber Data GmbH Felix-Wankel-Str. 4 82152 Krailling Germany www.psiber-data.com...
- Page 2 OPERatIOn Insert the LanMaster 30 plug end in to the RJ-45 jack of a wall outlet, or attach to a 4-wire, 6-wire or 8-wire patch cable with the RJ-45 coupler provided. Press and hold the “TEST” button.
- Page 3 If a Normal Link Pulse (NLP) is detected or The LanMaster 30 is designed to test a wall outlet which provides the a Link Code Word is decoded for 10baseT Ethernet signals on pins 3,6 of the RJ-45 jack. To test a computer Network operation, the “10T”...
- Page 4 Link operation. WaRRantY Psiber Data warrants that the product shall be free from defects in parts or workmanship for a period of 12 months from the date of purchase if used in accordance with Psiber Data operating specifications.
