Summary of Contents for Elektra Mobile Audio Alpha Series

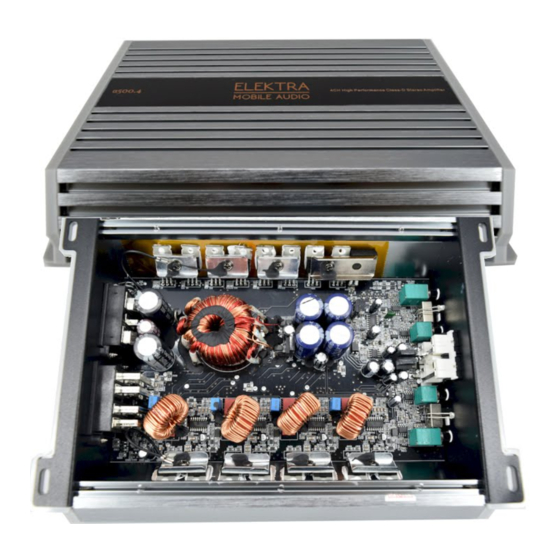

- Page 1 Alpha Series Amplifier Manual α500.4 Four Channel α1100.5 Five Channel α800.1 Monoblock α1200.1 Monoblock www.elektramobileaudio.com...
- Page 2 Whether you are a daily driving music lover, or a serious car audio competitor, ELEKTRA Mobile Audio has the product for you! To take full advantage of the ELEKTRA Mobile Audio gear you have just purchased, please read and follow the instructions in this manual. As with all of our products,...
- Page 3 ELEKTRA MOBILE AUDIO ALPHA SERIES AMPLIFIER MANUAL FEATURES Platinum finish connections - Ensure solid electrical connections that resist corrosion. Fully Variable Crossovers - Fully variable crossovers promote installation ease and save the cost of outboard crossovers. Additionally, they may be used in conjunction with outboard passive or active crossovers, depending on the complexity required by the system.
-
Page 4: Input Section
ELEKTRA MOBILE AUDIO ALPHA SERIES AMPLIFIER MANUAL INPUT SECTION Because of the wide range of head unit output configurations, all ELEKTRA Mobile Audio amplifiers have an adjustable input sensitivity, "Gain". The gain is not a volume or a power limiting control like a throttle. It makes the amplifier more sensitive to input from the stereo. -
Page 5: Crossover Controls
ELEKTRA MOBILE AUDIO ALPHA SERIES AMPLIFIER MANUAL CROSSOVER CONTROLS A crossover is a device that removes unwanted frequencies from a speaker or amplifier. A tweeter can easily be destroyed by bass notes if they are not filtered out. Likewise, a subwoofer will not sound natural if it is playing midrange notes. A crossover removes these sounds from the speaker. -
Page 6: Installation Instructions
ELEKTRA MOBILE AUDIO ALPHA SERIES AMPLIFIER MANUAL INSTALLATION INSTRUCTIONS Ensure that you know your total IMPEDANCE loads before you make any connections. 1. Before you start, disconnect the negative cable from the car battery. Tape the exposed end so that it is isolated from the battery. -
Page 7: Specifications
ELEKTRA MOBILE AUDIO ALPHA SERIES AMPLIFIER MANUAL SPECIFICATIONS Model No. α500.4 α1100.5 α800.1 α1200.1 RMS POWER 800Wx1CH 1200Wx1CH OUTPUT AT 1 Ω RMS POWER 240Wx4CH 150Wx4CH+ 600Wx1CH 1000Wx1CH OUTPUT AT 2 500Wx1CH Ω RMS POWER 125Wx4CH 80Wx4CH+ 400Wx1CH 600Wx1CH OUTPUT AT 4 300Wx1CH Ω... - Page 8 ELEKTRA MOBILE AUDIO ALPHA SERIES AMPLIFIER MANUAL INSTALLATION DIAGRAM - α500.4 FOUR CHANNEL www.elektramobileaudio.com...
- Page 9 ELEKTRA MOBILE AUDIO ALPHA SERIES AMPLIFIER MANUAL INSTALLATION DIAGRAM - α500.4 FOUR CHANNEL (bridged) www.elektramobileaudio.com...
- Page 10 ELEKTRA MOBILE AUDIO ALPHA SERIES AMPLIFIER MANUAL INSTALLATION DIAGRAM - α1100.5 FIVE CHANNEL www.elektramobileaudio.com...
- Page 11 ELEKTRA MOBILE AUDIO ALPHA SERIES AMPLIFIER MANUAL INSTALLATION DIAGRAM - α800.1 & α1200.1 MONOBLOCK www.elektramobileaudio.com...
