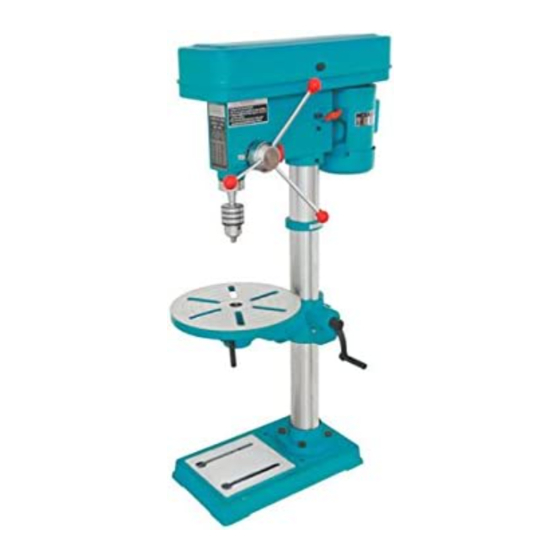

- Page 1 16MM BENCH DRILL CT3824 ORIGINAL INSTRUCTIONS Cannon Tools Limited Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K. SAVE THESE INSTRUCTIONS AND PRECAUTIONS. READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.
-
Page 2: Ec Declaration Of Conformity
In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity. Product description: 16MM BENCH DRILL Model: CT3824(Ref no.ZJ4116) CT3824 Applicable EC Directives: EC Directive of Electromagnetic Compatibility 2014/30/EU EC Low Voltage Directive 2014/35/EC... - Page 3 WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions. SYMBOLS The following symbols are used in this manual and/or on the machine: Warning! Warning...
-
Page 4: Safety Instructions For Drill Press
5. KEEP CHILDREN AWAY. All visitors should be kept safe distance from work area. 6. MAKE WORKSHOP KID PROOF with padlocks, master switches, or by removing starter keys. 7. DON'T FORCE TOOL. It will do the job better and safer at the rate for which it was designed. -
Page 5: Voltage Warning
6. Be sure chuck key is removed from the chuck before turning on power. 7. Adjust the table or depth stop to avoid drilling into the table. Shut off the power remove the drill bit on cutting tool and clean the table before leaving the machine. 8. -
Page 6: Installation
receptacles that accept the tool's plug. 6. Repair or replace damaged or worn cord immediately. 7.This tool is intended for use on a circuit that has an outlet that looks like the one illustrated in sketch A . The tool has a grounding plug that looks like the plug illustrated in Sketch A, A temporary adapter, which looks like the adapter illustrated in Sketches B and C may be used to connect this plug to a 2 - pole receptacle as shown in Sketch B if a properly grounded outlet in not available. -
Page 7: Spindle Adjustment
2 Check the table bracket if it is moving smoothly up and down. 3 Check if the spindle shaft moves smoothly. To adjust table up or down,loosen column lock TABLE ADJUSTMENT handle(A)then turn crank handle(B)to desired height.Re-tighten column lock handle (A) before drilling operation. -
Page 8: Changing Speeds
CHANGING SPEEDS To change spindle speed, loose the slide bar.Bolts and pull cam handle toward the front of the drill press Relocate belts on appropriate pulley rungs for the required spindle speed. Push cam handle toward the motor and then tighten the slide bar bolt. -
Page 9: Maintenance
or boring holes in wood.However, Machine spur bits are generally preferred for working in wood.Then cut a square bottom hole and are designed for removal of wood chips. Do not use hand bits have a screw tip. At drilling machine speeds they turn into the wood so rapidly as to life the work off the table and whirl it.For through boring, line up the table so that the bit will enter the center bole to avoid damage.Scribble a vertical line on the front of the column and a match mark on the... -
Page 10: Exploded View Diagram
3. Never use your hand to hold on the object while drilling.Always screw the object tight on the working table use the drilling machine vise to prevent accident injury. 4. Keep off your hand from the drill bit while drilling. 5. -
Page 11: Parts List
PARTS LIST... - Page 12 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China...
