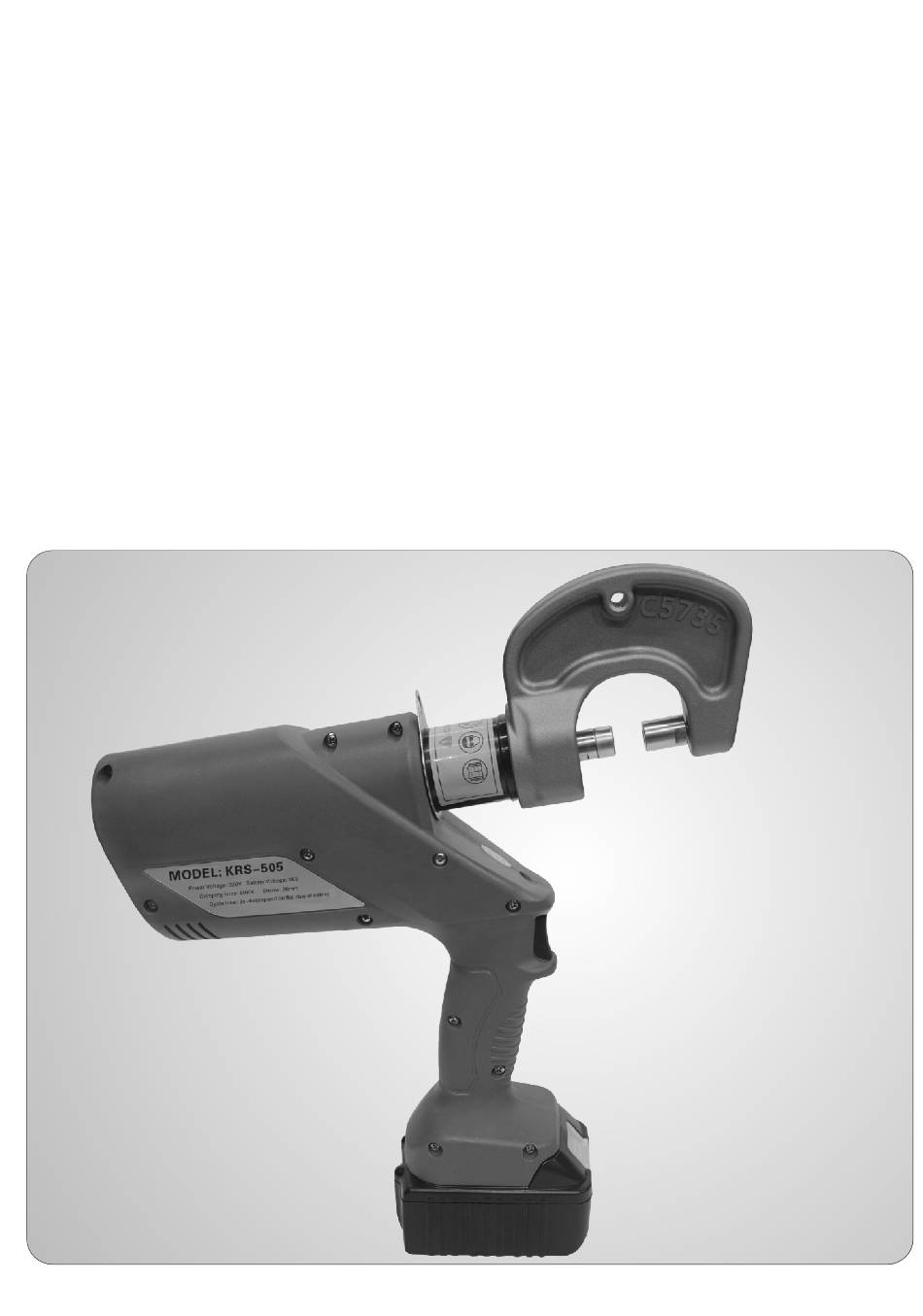

- Page 1 Battery Powered Rivet Gun Special for Aluminium Car Body KRS-505 Kit Instruction Manual...
-
Page 2: Table Of Contents
Content Safety Precautions Symbols and Definitions Introduction and Specifications 3.1 Introduction Technical Data Applications and Features 05-06 4. Warnings and Important Notices Self-piercing riveting kit for using in riveting, pressing out ,punching and shaping Hole punching riveting kit for using in riveting,pressing out,punching and shaping .Installation Pressing out rivets and accessory kit instructions Shaping of the rivet head... -
Page 3: Safety Precautions
1.Safety Precautions Warning: To avoid accidents like fire, electric shock or injury, t following basic safety precautions must be paid attention to before using the battery powered rivet gun: 1. Workplace A. Keep the workplace clean and bright. Accidents may happen at chaotic and dark workplace. -
Page 4: Symbols And Definitions
2.Symbols and Definitions Release Button: Automatically release pressure. The piston will return to its original position when the pressure reaches maximum value. Temperature Sensor: The unit produces heat after long running period. If the temperature exceeds 60°C, the output will be stopped automatically. -
Page 5: Introduction And Specifications
3.Introduction and Specifications 3.1 Introduction 1. Die heads box Die heads box 2. Charger 3. Wrenches 4. Charger plug 5. Arm handle 6. Rivet gun 7. U-arm 8. Die head slot 9. Indicator 10. Reset button 11. Start button 12. Battery... -
Page 6: Technical Data
Technical Data Press capacity max 60 kN Input voltage 220V 3.0Ah Battery Capacity Stroke 33mm Ambient temperature 5-50 C°/ 41 122° F Safety glasses,Face Shield Safety Requirement Main machine weight 3.0kg Applications & Features Available for removing rivets. Available for sheet shaping and flattening. Available for self-piercing riveting Available for semi-tubular riveting. - Page 7 Only trained personnel should use this equipment Make sure to read the instruction manual before operating the equipment. Observe the applicable national regulations for accident prevention. Wear face shield and protective gloves when operating the equipment. The metallic parts can fly off with high pressure if the equipment is improperly operated or misused,causing a severe physical injury.
-
Page 8: Self-Piercing Riveting Kit For Using In Riveting, Pressing Out ,Punching And Shaping
5.Self-piercing riveting kit for using in riveting, pressing out ,punching and shaping Tool sets for punching and riveting NO.666201 NO.666202 NO.666206 NO.666207 NO.666208 NO.666204 NO.666203 NO.666209 A1+A2 H1+H2 Tool sets for pressing out old rivets C1+C2 Tool sets for punching, riveting and shaping E1+E1 6011 6mm刀... -
Page 9: Hole Punching Riveting Kit For Using In Riveting,Pressing Out,Punching And Shaping
6.Hole punching riveting kit for using in riveting, pressing out ,punching and shaping Tool sets for hole punching riveting The rivets must have a distance 3-4mm to ensure the quality of riveting. B1+B2 B3+B4 Tool sets for pressing out old rivets C1+C2 Tool sets for hole punching and shaping E1+E1... -
Page 10: Installation
7. Installation 2. Choose required die head 1.The indicator lights after and install it into the slog. inserting the battery into the Use wrench to tighten up. base of the equipment; if not, it runs out of battery. 3. Install the front die head 4. -
Page 11: Pressing Out Rivets And Accessory Kit Instructions
8.Pressing out rivets and accessory kit instructions 3 extension C-arms are available in the tool box for riveting. C5735 Maximum depth 35mm C80120 Maximum depth 120mm C130/230 Maximum depth 230mm When repairing body panel, old or defective rivets often need to be removed from the metal structure. -
Page 12: Shaping Of The Rivet Head
9.Shaping of the rivet head Tool kit E1+E1 Position the shaping kit on the rivet head Install the kit as shown above Apply shaping. The defective metal component can be removed after the shaping and the new metal can be replaced . -
Page 13: Punching And Shaping(New And Old Metal Components)
10.Punching and shaping(new and old metal components) In order to punch and shape a hole on the new metal combination,remove the calibration die from the punch stud and install the corresponding blanking bits (Apllicable to old intact sheet metal or metal to be repaired) Install the kit-The kit is applicable for punching and shaping a hole (6mm and 8mm) and thickness less than 8.6mm SKR 6mm... -
Page 14: Charging, Cleaning And Maintaining The Battery
11.Charging, cleaning and maintaining the battery 1. Press the button 3. Insert into the charger 2. Pull out the battery Note: 1. Recharge the battery every 1-2 months when the battery is used only occasionally. The battery would lose its capacity to store electricity if it is not being recharged for a long period.
