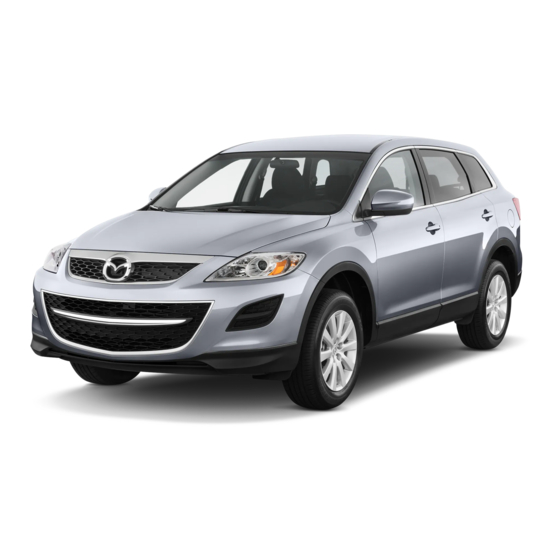

Mazda 2010 CX-9 Smart Start Manual

Quick start guide
Hide thumbs Also See for 2010 CX-9:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Optional equipment shown.
193094_10a_CX-9_SSG_070109.indd 1
7/1/09 10:07:34 AM

Advertisement

Table of Contents
loading

Related Manuals for Mazda 2010 CX-9

Summary of Contents for Mazda 2010 CX-9

  • Page 1 Optional equipment shown. 193094_10a_CX-9_SSG_070109.indd 1 7/1/09 10:07:34 AM...

  • Page 2: Advanced Keyless Entry System

    Lock ADVAnCED KEyLESS EnTry SySTEM Unlock • T his system allows you to lock and unlock the doors, open the liftgate and even start the engine without taking the key out. While Carrying the Advanced Key… • U nlock the driver’s door by pushing Liftgate the driver’s door request switch once. Panic Alarm • U nlock all doors by pushing the driver’s door request switch twice OR by pushing the passenger’s door Door request Switch request switch.
  • Page 3 Seats ELECTrOnICALLy OPErATED SEAT W/MEMOry recline Switch Push forward or backward to adjust seatback angle. Slide/Tilt Switch Seat can be moved back and forth, raised, lowered, or tilted with this control. Lumbar Switch Push forward or backward to increase or Memory Seat Switch decrease lumbar support. To Program the Driver’s Seat Position 1 Park the vehicle. 2 A djust the seat to the desired position using the slide/tilt and recline switches. 3 W hile pushing the memory seat SET button in, push one of the three programming buttons until a beep is heard. Programming is now complete. Program the remaining two buttons as desired. nOTE: You can also program a seat position for each advanced key/retractable type key used with the vehicle. See Owner’s Manual for programming instructions.

  • Page 4: Driver's View

    Driver’s View (shown with optional LIGhTS/TUrn SIGnALS (P. 9) POWEr LIFTGATE SWITCh (P. 2) BLInD SPOT MOnITOrInG (BSM) (P. 13) hEADLIGhT LEVELInG TrACTIOn COnTrOL SySTEM (TCS) hOOD BLUETOOTh ® TILT/TELESCOPInG rELEASE hAnDS-FrEE STEErInG WhEEL (P. 25) /AUDIO LEVEr (behind steering wheel) 193094_10a_CX-9_SSG_070109.indd 6-7 Navigation System) InFOrMATIOn...

  • Page 5: Instrument Cluster

    Instrument Cluster InSTrUMEnT FUEL GAUGE CLUSTEr DIMMEr GLOSSAry OF WArnInG AnD InDICATOr LIGhTS nOTE: See Owner’s Manual for more details and explanations. Low Fuel KEy Warning Light (rED) Advanced key not detected or transmitter battery is dead. KEy Indicator Light (GrEEn) On: Advanced key detected; engine is ready to start. Flashing: Advanced key battery is low. Check Fuel Cap (Antilock Brake System) ABS malfunction Lights On (Exterior Lights) nOTE: The tire pressure should be set when tires are cold. Large changes in ambient temperatures or altitude will cause tire pressure change and may cause TPMS warning...

  • Page 6: Feature Highlights

    Feature Highlights LIGhTInG COnTrOL/TUrn SIGnAL LEVEr AUTO: The light sensor automatically determines when to turn the headlights on or off. : Turns tail, parking, and dashboard lights on. Push for high Beams Pull to Flash high Beams : Turns tail, parking, dashboard, and headlights on. 193094_10a_CX-9_SSG_070109.indd 10-11 WInDShIELD WIPEr/WAShEr COnTrOL LEVEr AUTO: The rain sensor senses the amount of rainfall and turns the wipers on or off. Rotate inner ring away from you (clockwise) for less sensitivity (requires more rain to turn wipers on) and towards you (counterclockwise) for more sensitivity (requires less rain to turn wipers on). : Turns fog lights nOTE: Vehicles not equipped with AUTO wipers will have INT wipers. Set the lever on only when headlights to INT and choose an interval timing by rotating the ring between fast and slow. are on. Less sensitive Pull lever to dispense windshield...
  • Page 7 Feature Highlights SPOrT A/T MAnUAL ShIFT MODE The Sport AT Manual Shift Mode gives you the feel of driving a manual transmission by allowing you to manually shift to control engine rpm and torque when more control is desired. To Use Manual Shift Mode: • S hift lever from D to M. nOTE: Changing to manual mode can be done while driving the vehicle. To Shift Up to a higher Gear: • T ap shift lever back (+) once. To Shift Down to a Lower Gear: • T ap shift lever forward (-) once.

  • Page 8: Blind Spot Monitoring (Bsm) System

    Feature Highlights BLInD SPOT MOnITOrInG (BSM) SySTEM The Blind Spot Monitoring (BSM) system is designed to assist the driver by monitoring the blind spots to the rear of the vehicle on both sides. • I f your vehicle speed is 20 mph (32 km/h) or more, the BSM will warn you of vehicles in the detection area by illuminating the BSM warning lights located on the left and right door mirrors. • I f you operate a turn signal in the direction of an illuminated BSM warning light, the system will also warn you with a beeping sound and warning light flash.

  • Page 9: Automatic Climate Control

    Automatic Climate Control Information Display Automatic Climate Control Operation 1 Push AUTO to turn the front air conditioning on. 2 R otate AUTO dial (driver’s temperature control) to the desired cabin air temperature setting (shown in the Information Display above). nOTE: Rotating fan control dial, or pushing the MODE button, or A/C switch, or windshield defroster switch while in AUTO ON mode will cancel auto A/C. Dual zone Operation • To allow the passenger to independently control passenger side temperature setting, rotate the DUAL dial (passenger’s temperature control) or push the DUAL button. The DUAL indicator will illuminate and passenger temperature setting will be displayed on the Information Display. • To turn off Dual Zone operation, push the DUAL button. Information Display Functions • D river’s Temperature • C limate Control • Clock/Trip Computer nOTE: With defroster and floor vents or windshield defroster mode, the system...
  • Page 10 The selected band will be indicated The radio has the following in the Information Display. tuning controls: Satellite radio: Push the SAT • Manual: Turn the TUNE dial to button for SIRIUS Satellite radio. ® manually change the frequency. See the Owner’s Manual for • Seek: Push the TRACK/SEEK more details. If your vehicle is equipped with Sirius XM Radio, your automatically seek a higher or new Mazda includes a six-month lower frequency with a station. introductory subscription. Vehicles • Scan: Push the SCAN button equipped with this feature will have a satellite radio antenna located on the roof or trunk lid. Call 888-539-7474 to activate your subscription! 193094_10a_CX-9_SSG_070109.indd 18-19 • Preset Channel: Push the Preset Channel buttons (1-6) to select a station stored in memory. To store a station, push and hold a button (1-6) until a beep is heard. • Auto Memory Tuning: Push...
  • Page 11 • Manual: Turn the TUNE dial to The selected band will be indicated in the Information Display. • Seek: Push the SEEK/TRACK Satellite radio: Push the SIRIUS button for SIRIUS Satellite radio. ® See the Owner’s Manual for more details. If your vehicle is equipped • Scan: Push the SCAN button with Sirius XM Radio, your new Mazda includes a six-month introductory subscription. Vehicles equipped with this feature will have a satellite radio antenna located on the • Preset Channel: Push roof or trunk lid. Call 888-539-7474 to activate your subscription! CD: Push CD/AUX button to select the CD player. AUX: Push CD/AUX button to switch to AUX jack input. 193094_10a_CX-9_SSG_070109.indd 20-21 • Auto Memory Tuning: Push and hold the AUTO-M button to store an additional 6 stations on...

  • Page 12: Rear View Monitor

    • Manual: Turn the TUNE/ radio: Select FM or AM button for FM1, FM2, or AM band. The selected band will be indicated in • Seek/Track: Push and hold the Information Display. DISC: Select for CD player. SAT: Select for SIRIUS Satellite ® radio. See the Owner’s Manual for more details. If your vehicle is equipped with Sirius XM Radio, your new Mazda includes a six-month introductory subscription. Vehicles equipped with this feature will have a • Scan: Push the SCAN button satellite radio antenna located on the roof or trunk lid. Call 888-539-7474 to activate your subscription! • Preset Channel: Can be used AUX: Select to switch to AUX jack input or Rear Seat Entertainment System (RSES). 193094_10a_CX-9_SSG_070109.indd 22-23 1 P ush the SOURCE button. 2 S elect AM/FM or SAT.

  • Page 13: Navigation System

    Navigation System InSErTInG ThE MAP DISC Disc A DISC A Insert map disc into lower DVD slot Your navigation system operates using the map discs supplied. • D isc A covers most of the Midwest and Western states including Hawaii and Alaska. • D isc B covers some of the Midwest and all of the Eastern states including Puerto Rico. • Both discs cover all of Canada. nOTE: If the “state your address is in” is not displayed when entering a destination, you may have the wrong disc in the navigation system. 1 Push LOAD 2 When “Load/Eject” screen appears select “MAP”. Wait for navigation screen to tilt open. 3 Remove current map disc (if installed) and insert the desired map disc, with the printed side facing up, into the lower DVD MAP slot.
  • Page 14 193094_10a_CX-9_SSG_070109.indd 26-27 and perform pairing. ® . To end or reject a call, push MyMazda.com—The Official Site for Mazda Owners Register today on MyMazda.com—the ultimate destination for Mazda Owners. Once registered, you’ll be able to take advantage of benefits exclusively for Mazda Owners: • I nsider access to exclusive events and promotions • Personalized maintenance schedules • Zoom-Zoom Owner Magazine • W arranty information and on-line...

  • Page 15: Service Department

    Customer Delivery Checklist VEhICLE PrESEnTATIOn: Refer to the Smart Start Guide during presentation Keyless Entry ... Fuel Door ... • K eyless Transmitter • Fuel-Filler Door Release • A dvanced Key* Auto-Dimming Mirror ... • D oor Request Switches* • Liftgate Request Switch* homeLink • Power Door Locks Blind Spot Monitoring ... Starting The Engine ...
  • Page 16 Remember, to further enhance your driving experience, visit your local Mazda Service Center for your scheduled maintenance. It’s also the place where you can find a wide variety of tires, parts, and accessories that are just right for your vehicle. * See vehicle’s scheduled-maintenance program for details. ** Visit the Mazda Owners website at MyMazda.com/fullcircle to find a participating Mazda Full Circle Service Dealer. Customer Assistance Center: roadside Assistance Contact: FrEE FULL CIrCLE SErVICE InSPECTIOn We’re committed to providing expert Mazda service.
