Summary of Contents for SYSFORM P4505

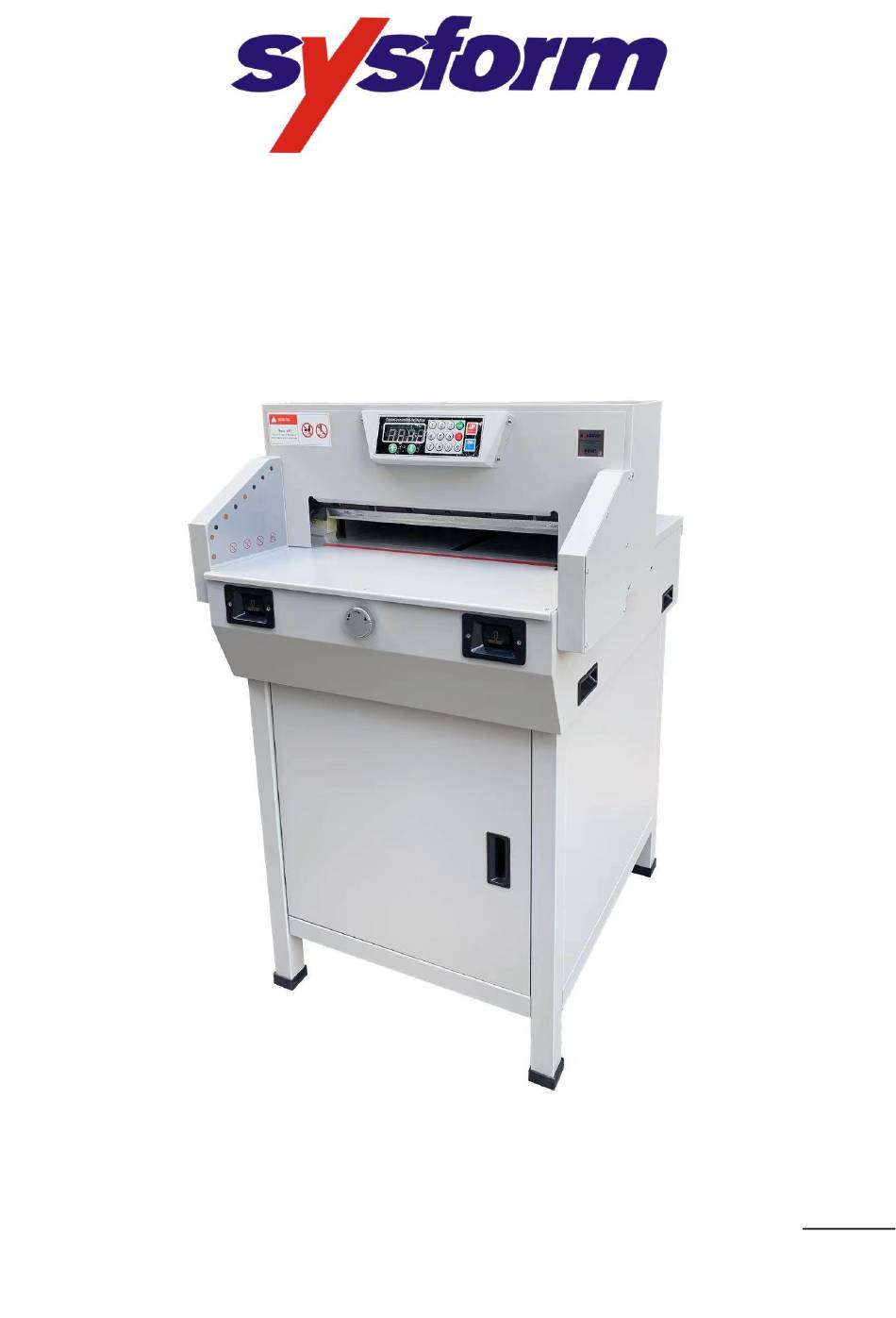

- Page 1 P4505 Guillotine Operation Manual Revision :20/10/21...
-
Page 3: Table Of Contents
Index 1. Safety Rules …………………………………………………………………………………………………………………… 2. Specifications …………………………………………………………………….……………..…………………………… 3. Name Plate ……………………………………………………………………………….……………………………………. 4. Accessories ……………………………………………………………………………………………………………………. 5. Installation ………………………………………………………………………………………………………………………. 6. Key Components ……………………………………………………………………….…………………………………. 7. Control Panel And Function Keys ……………………………………..………..………..……………..8. Reset The Back Gauge ..10 …………………………………………………………….……………………..……… 9. Cutting Procedure …………………………………………………………………………….………………………… 9.1 Manual Cut ……………………………………………………………………………..……..…………………….. -
Page 4: Safety Rules
1.Safety Rules The machine has many safety features which make it a safe to operate. Regardless of your experience, safety instructions must be read carefully, completely understood, and applied to your daily work habits. If you do not understand or are confused by certain safety instructions presented in this manual, discuss them with your supervisor. - Page 5 equipment, power must be shut off to adjustments while it is running. all circuits before any work is attempted. Individual switches must be opened and the equipment circuits tested to make sure there is no power. 7. Be sure all operators are aware of all 7.
-
Page 6: Specifications
2.Specifications Specification P4505 Cutting Width 17.72" Cutting Height 1.97" Narrow Cut 1.57" Power Supply 110VAC, 50/60Hz, 8A Dimensions (H x W x 42.91" x 31.50" x 26.38" Weight 198.4lbs Note: A dedicated AC power line is required. 3.Name Plate 4. Accessaries... -
Page 7: Installation
5. Installation 5.1 Cabinet installation 5.1.1 Remove the top cover of the wooden case to take all parts for the cabinet out. 5.1.2 Install the cabinet referring to the illustration. - Page 8 5.2 Loosen all screws around the bottom of the wooden case then take away the cover to access the main body of the machine. 5.3 Two people at least put the machine onto the cabinet.
- Page 9 5.4 Install the door to the cabinet.
-
Page 10: Key Components
6. Key Components Control Panel Blade Safety Beam 2-Hand cutting Hand 2-Hand cutting button Wheel button Cabinet... -
Page 11: Control Panel And Function Keys
7. Control Panel and Function Keys Function Key Function Back gauge goes backward. Press it once and the back gauge will go 0.1 unit length. Press it and hold all the time and the back gauge will go faster and faster continuously. Back gauge goes forward. -
Page 12: Reset The Back Gauge
8. Reset The Back Gauge 8.1 Switch on the circuit breaker behind of the left of the machine then switch on the main power switch. The back gauge will go to last position automatically. 9.Cutting Procedure 9.1 Manual Cut 9.1.1 Use the buttons or the hand wheel to bring the back gauge to the desired position. -
Page 13: Cm And Inch Selection
10. CM and Inches Exchange 10.1 Key in “111.2” Press and hold until the machine beeps then release the button. 10.2 Restart the machine. 11. Cutting Depth Adjustment If the last sheets can’t be cut completely, 11.1 Put 1 paper covering the cutting stick. 11.2 Use 2-hand cutting button to bring the blade down. - Page 14 12.3 Use 2-hand cutting button to bring the blade down. Release the left hand as soon as let far right #7-screw exposes then switch off machine. 12.4 Remove screw #7. 12.5 Remove the #2 and #6 two screws. 12.6 Screw blade replacement tools onto blade screw holes #2 and #6 tightly. 12.7 Remove screw #1, #3 and #5.
