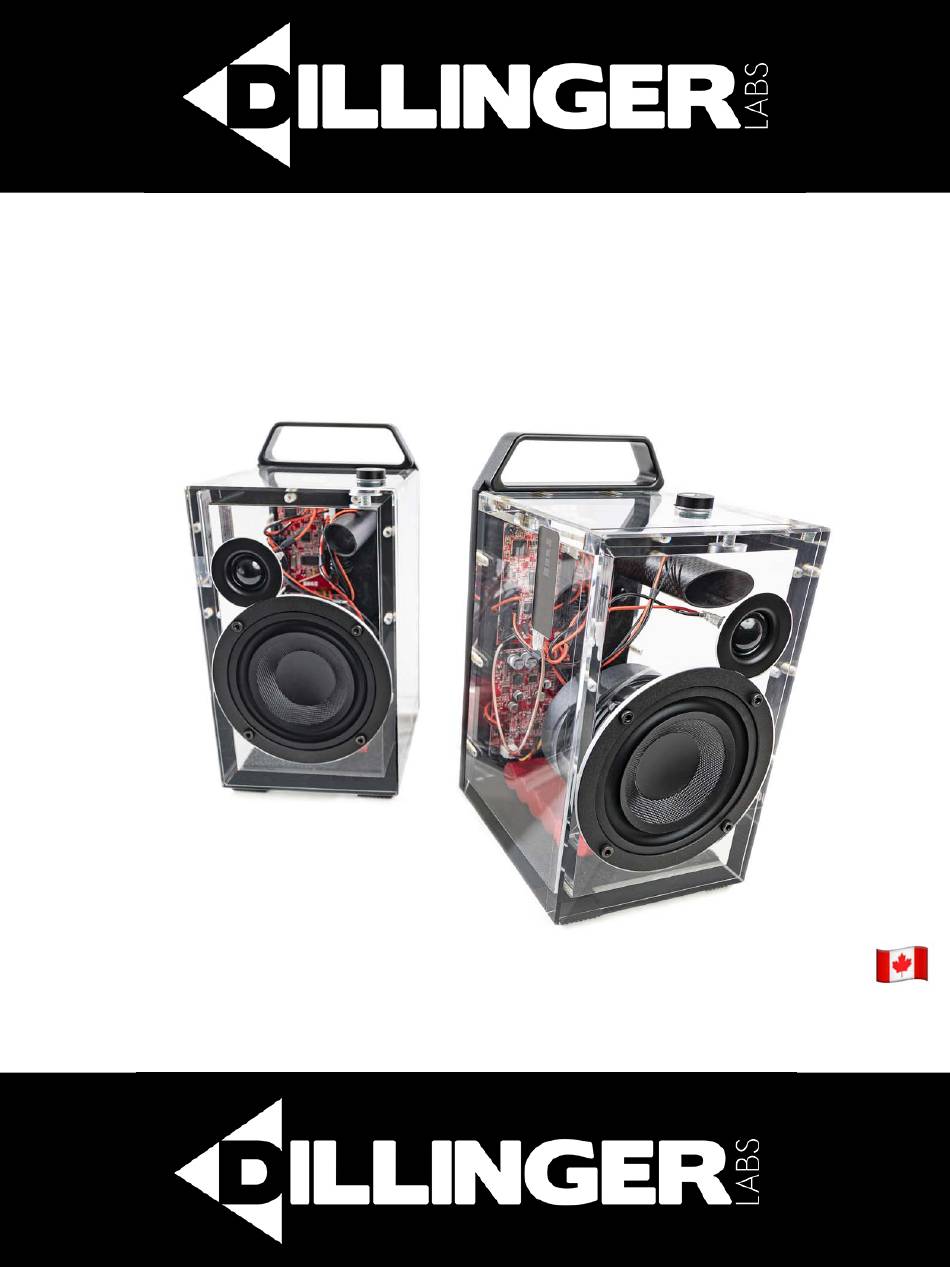

Aquarius
owner's manual
SKAA® wireless
speakers
Developed in Canada
built to survive a moose stomp

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aquarius and is the answer not in the manual?

Questions and answers

Related Manuals for Dillinger Labs Aquarius

Summary of Contents for Dillinger Labs Aquarius

  • Page 1 Aquarius owner’s manual SKAA® wireless Developed in Canada speakers built to survive a moose stomp...
  • Page 2 You should now hear audio playing. other products sporting the SKAA Compatible Badge. If your transmitter is capable of SKAA Pro, so is Aquarius! SKAA Pro reduces the latency of SKAA from 36ms to 19ms. Check out our video on SKAA Pro here.
  • Page 3 Green Technology went so far as to put it on the OUTSIDE of the speaker. Choices like this enable your Aquarius to achieve a 50-meter wireless range when paired with a transmitter capable of that At the heart of Aquarius is its Merus amplifier - Infineon’s...
  • Page 4 11. The Back Plate 2. Minimize resonant frequencies 3. Near-perfect elimination of chuffing The back plate serves as the backbone of Aquarius - holding it 4. Port turbulence prevention all together and looking good while doing it. Aquarius’ back plate is manufactured by machining a large block of aluminium into its final shape.
  • Page 5 14. Charging 15. The Gravity Lock Aquarius has a phenomenal 36+ hour battery life at normal Gravity Lock allows you to conveniently carry a pair of listening volumes, but eventually, you’ll need to charge them Aquarius speakers in one hand. Simply interlock two back up.
  • Page 6 Customize the name of your Transmitter. Audio Routing: The Green Bond Block lets you choose whether a Receiver is playing left, right, or both channels. From the factory, your Aquarius speakers are configured with the left and right speakers playing their respective channels.
  • Page 7 Check out our YouTube video explaining the Clustering red. Wait 10 seconds. feature here. The following Cluster example sets up the Left Aquarius as a master and the Right Aquarius as a slave. Step 1: Place two Aquarius speakers near each other and ensure both of them are turned OFF.

  • Page 8: Specifications

    18. Specifications Cabinet construction Crystal clear acrylic, solid aluminium back plate Battery capacity 48.1 Wh Battery life 18.5 to 36+ hours dependant on listening level Charge time 2.75 Hours Amplifier power 60 W RMS Amplifier type High efficiency class D 40W Max Woofer spec 4’’...
  • Page 9 11. The acrylic which makes Aquarius so unique is also quite fragile. Handle your speakers with great care. 12. Aquarius is not a sentient being capable of care and compassion. You will love them but they will not love you back.
  • Page 10 SKAA RECEIVER USER’S GUIDE ® Each SKAA receiver uses a Green List to remember your favourite audio sources (SKAA transmitters). A Green glowing Indicator on your receiver means you are listening to a favourite, or hunting for one. You can also explore to find new transmitters—an Amber Indicator means you are exploring for transmitters which are not on your Green List.

  • Page 11: Questions And Answers

    QUESTIONS AND ANSWERS Question Answer How does the You can store up to 10 SKAA transmitters on your Green List. These are your “favourite” audio Green List work? sources. Every time you add a transmitter, it is assigned the first open spot on the Green List. When you single click the Bond Button, the receiver hunts through the Green List much like a car radio hunts for radio stations when you press seek.
  • Page 12 Aquarius Use Case #1 Computer with a pair of Aquarius speakers Ursula Transmitter Aquarius Speaker Aquarius Speaker Legend: SKAA - 36 ms latency Wire SKAA Pro - 19 ms latency...
  • Page 13 Aquarius Use Case #2 2.1 Home Theatre System Aquarius Speaker Aquarius Speaker Television Talisa Transmitter SKAA compatible Subwoofer Legend: SKAA - 36 ms latency Wire SKAA Pro - 19 ms latency...
  • Page 14 Aquarius Use Case #3 Cluster of speakers If you wish to control a whole sound system using only one speaker, you can do that by setting up a Cluster. SLAVE Check out section 17. Cluster of Speakers and SKAA Aquarius Speaker RECEIVER USER’S GUIDE at the end of this manual for...
  • Page 15 Aquarius Use Case #4 Home-brew Party Aquarius Speaker Aquarius Speaker iPad Diz Transmitter Aquarius Speaker Aquarius Speaker We offer a Cassandra Transmitter for USB Type C and a Gemma Transmitter for micro USB. Check out www/ SKAAstore.com for a full range of available transmitters.
  • Page 16 Aquarius Use Case #5 DJ House Party Aquarius Speaker Aquarius Speaker Dani Transmitter Aquarius Speaker Aquarius Speaker Powered Subwoofer Powered Subwoofer Legend: SKAA - 36 ms latency Wire SKAA Pro - 19 ms latency...
  • Page 17 Aquarius Use Case #6 Hybrid Speaker DJ Set-up Aquarius Speaker Aquarius Speaker Dani Transmitter Powered Subwoofer Powered Subwoofer Streetheart Receiver Streetheart Receiver Streetheart receivers are available from skaastore.com/products/streetheart. Powered Speaker Powered Speaker Legend: SKAA - 36 ms latency Wire SKAA Pro - 19 ms latency...
  • Page 18 Aquarius Use Case #7 DJ with Mic & Headphones Aquarius Speaker Aquarius Speaker Valerie microphone Mono Mono Helix Headphones Aquarius Speaker Dani Transmitter Aquarius Speaker Streetheart Receiver Powered Subwoofer Powered Subwoofer Legend: SKAA - 36 ms latency Wire SKAA Pro - 19 ms latency...
  • Page 19 Aquarius Use Case #8 ULTIMATE DJ Set-up Aquarius Speaker Aquarius Speaker Mono Mono Valerie microphone Aquarius Speaker Aquarius Speaker Dani Transmitter Dani Transmitter Streetheart Receiver Streetheart Receiver Powered Speaker Powered Speaker Legend: SKAA - 36 ms latency Wire SKAA Pro - 19 ms latency...
