FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司
Updated Time：2020-05-27 18:18:09
FMUSER FBE300 Magicoder
User Manual
* Some of the functions mentioned in this manual are only applicable to the corresponding models, not all listed
models, so this manual cannot be used as a commitment to all functions of all models.
1 / 37

Advertisement

loading
Need help?

Need help?

Do you have a question about the FBE300 Magicoder and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FMUser FBE300 Magicoder

  • Page 1 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 Updated Time：2020-05-27 18:18:09 FMUSER FBE300 Magicoder User Manual * Some of the functions mentioned in this manual are only applicable to the corresponding models, not all listed models, so this manual cannot be used as a commitment to all functions of all models.
  • Page 2 To replace the original equipment is time-consuming and labor-intensive, and the cost is too large. In order to solve such problems, FMUSER has launched a new FBE300 transcoder to solve all your troubles facing IPTV video. 2 / 37...
  • Page 3 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 As an encoder, FBE300 can encode video files into IP video streams and push them to the network, which is mostly used for digital signage advertising in public places. As a decoder, FBE300 can decode the IP video stream into HDMI high-definition video and play it on the display.
  • Page 4 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 price, and complete functions, it is very suitable for system integrators and individuals, providing all users. High-quality video streaming experience. Item List Name Quantity FBE300 Magicoder Power Adapter HDMI Cable Audio Cable 4 / 37...
  • Page 5 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 Parameters Item Parameter Input protocol Support RTSP, RTP/UDP multicast, RTP/UDP unicast, HTTP, standard TS stream, RTMP pull stream, HLS (m3u8) protocol, etc. Output protocol Support RTSP, RTP/UDP multicast, RTP/UDP unicast, HTTP, standard TS stream, RTMP push stream, RTMP pull stream, HLS (m3u8) protocol, etc.

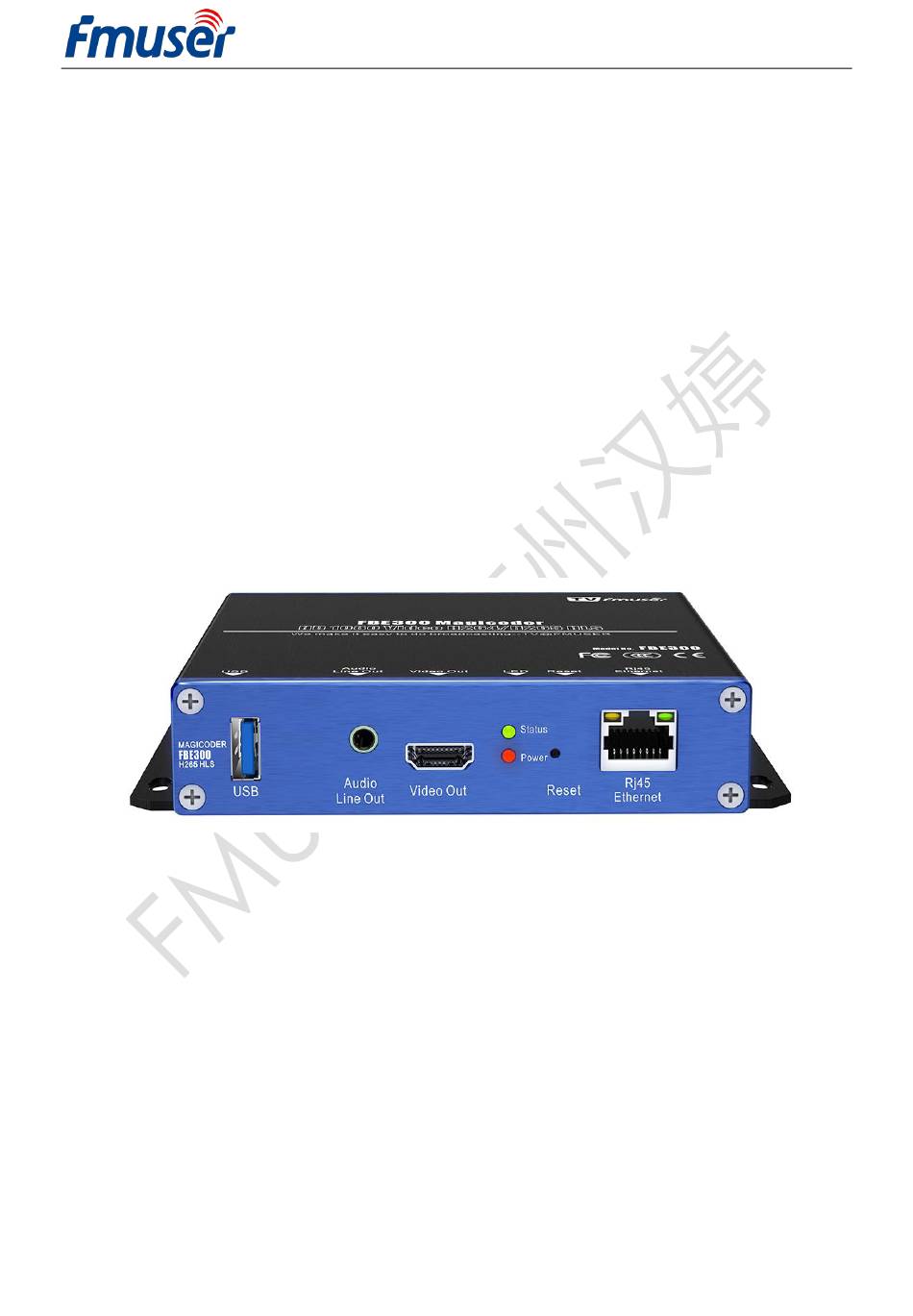

  • Page 6 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 Appearance 4.1 Front panel description ① USB3.0 interface, you can connect U disk and play video files from U disk, or store network video to U disk. ② 3.5mm stereo audio output ③ HDMI video output interface ④...
  • Page 7 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 4.2 Rear panel description ① Micro USB power input (5V, optional) ② DC power input (12V) 7 / 37...
  • Page 8 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 Enter the background management interface 5.1 The default IP address of FMUSER FBE300 transcoder is 192.168.1.170 The IP address of your computer must be 192.168.1.XX to connect with the encoder. (Note: "XX" can be any number between 2 and 254, except 170)
  • Page 9 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 5.2 Connect the computer to the FMUSER FBE300 transcoder via a network cable. Open IE browser, enter "192.168.1.170", access the background management page of FMUSER FBE300 (user name : admin, password : admin) (Please refer to "Quick Connection Guide" or go to bbs.fmuser.com for help)
  • Page 10 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 Detailed background management interface System Status Version Information Hardware ID：FBE300 , Unique identification code Software version：FBE300 , Firmware version Network Information IP address： IP address of the transcoder Subnet mask：Subnet mask of the transcoder Default Gateway：Gateway IP address of the transcoder DNS：Transcoder's DNS address...
  • Page 11 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 Source input input interface：Video input mode Resolution：Input video resolution Audio sampling rate：Sample rate of input audio Audio channel：Number of input audio channels Audio resampling：Input audio resampling rate HDMI output status Resolution：HDMI Output resolution Audio output interface：HDMI audio output interface Output Streaming Output resolution：Stream output resolution...
  • Page 12 (After setting a new IP address for the FBE300 transcoder, be sure to remember the new IP address, otherwise you will not be able to enter the background management interface of the transcoder. If you encounter a forgotten IP address after modification, you cannot enter the background management interface Go to bbs.fmuser.com for help) 12 / 37...
  • Page 13 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 Encoding Settings Output Streaming Video encoding: Set the encoding format of the stream output Encoding level: Set the encoding level of the stream output, generally the "Main profile" has met the normal requirements Coding resolution: Set the resolution of the stream output, most support 1920 * 1080...
  • Page 14 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 Video Input Video input Input mode: Video input mode. > one soure input: one channel video stream input, the maximum input video resolution is 1080P > two soure input: two channels of video stream input, the maximum input video resolution is 720P >...
  • Page 15 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 protocol, you must select whether the streaming video you input is in UDP or TCP playback mode, otherwise the transcoder will not work properly. File location: Set the file name of the U disk file to be played.
  • Page 16 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 RTSP stream：Set to turn RTSP stream output on and off TS stream：Choose HTTP, UDP multicast or UDP unicast stream output, these three streams can only output one （Output Streaming 1 is Output Streaming 1 Stream output settings.）...
  • Page 17 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 Small window width: Set the width of the small window Small window height: set the length of the small window PIP output: set the picture-in-picture output interface, you can choose to output by HDMI or...
  • Page 18 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 System Control System service parameter HTTP port: Set the login port of the background management interface, the default is 80. If there are no special circumstances, please do not modify this setting, otherwise you will not be able to enter the background management interface RTSP port: Set the RTSP output port, which can be modified according to your needs.
  • Page 19 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 Password Change Password New password：Set a new login password Confirm password：confirm the new login password (FBE300 transcoder can only modify the login password, not the login account) 19 / 37...
  • Page 20 Current version：FBE300 Magicoder Firmware version Firmware(TPlay.bin)：Select the firmware upgrade package. The firmware upgrade package name should be TPlay.bin. （The latest FBE300 transcoder firmware upgrade package can be downloaded from bbs.fmuser.com） Typical application setup tutorial Application 1: Tutorial for setting resolution, encoder format, stream, output protocol conversion...
  • Page 21 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 7.11 Application scenarios 7.111 Resolution Conversion By reducing video resolution, this solution can provide low-resolution video for slow Internet users. For example: FBE300 transcoder can convert 1080i@50fps video to 1080p@30fps, 720p@25fps or 480p@25fps, and push it to live platform or streaming server, so it can reduce bandwidth usage.
  • Page 22 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 7.112 Code Stream Compression By reducing video streams, this solution can provide low-stream video for slow Internet users. For example, the FBE300 transcoder can convert 8Mbps video to 2Mbps and stream it to the live platform or streaming server to reduce the bandwidth usage.
  • Page 23 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 7.113 Multi-Screen Multi-Protocol This solution can be applied to different scenarios. The FBE300 transcoder supports simultaneous output of RTMP, RTSP, HTTP-TS and M3U8 streams . It can adapt to different streaming modes, such as live broadcast, on-demand and broadcasting etc.
  • Page 24 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 7.114 Multi-Screen Multi-Resolution This solution is mostly used to meet the resolution requirements of different screens like TVs, notebooks and mobile phones. The FBE300 transcoder can output HDMI, network streams, and this two streams support different resolutions for output. This can be viewed on different size screens to reduce the usage of bandwidth and reduce buffering, so that to improve video viewing speed.
  • Page 25 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 7.12 Setup tutorial 7.121 Set Video input a) Enter the background management interface of FBE300. For the entry method, please refer to item 6: Enter the background management interface b) In "Input Output--Video input", set the Input mode to One source input c) Enter the streaming video to be transcoded in the Source input URL.
  • Page 26 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 7.122 Set Encoding settings a) Enter the "Media settings --Encoding settings" setting interface b) In Video encoding and Encoding level. Select the encoding format and compression level to be output c) Select the resolution to be output in Coding resolution. The output resolution cannot be higher than the input resolution d) Set the frame rate and key frame interval to be output in Frame rate and Key frame interval.
  • Page 27 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 7.123 Set Network settings a) Enter the "Network settings--Network setup" setting interface b) b) Select the required network mode in Network mode, it is recommended to use Manual mode. If you do n’ t know what IP address FBE300 is assigned using DHCP mode, you ca n’t enter the background management interface...
  • Page 28 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 7.124 Reboot FBE300 Magicoder a) Click the restart button in the upper right corner of the FBE300 transcoder background management interface to restart the transcoder b) Confirm to restart the FBE200 transcoder in the pop-up prompt.
  • Page 29 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 Application 2: Tutorial of pushing USB video files to video platform and HDMI output display 7.21 Application scenarios 7.211 USB to Network Stream This solution is used to push video files to web platform. The FBE300 transcoder converts video files from a USB flash drive to an IP video stream, then transmit to different locations via different protocols.
  • Page 30 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 7.22 Setup tutorial 7.221 Set Video input a) Insert the U disk in the front panel of FBE300 b) In "Input Output--Video input", set the Input mode to Media Files VOD c) In File lovation, enter the name of the video file to be played in the U disk.
  • Page 31 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 7.223 Set output stream a) Enter the Input Output--Output stream setting interface. b) Select RTMP as Enable in the RTMP push stream settings c) Select the push flow mode you need in Push mode, and then set the push flow...
  • Page 32 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 Classic mode：Fill in the RTMP server, application address and stream address separately a) Finally click Set up to save the settings （If you need to output RTSP, UDP or HTTP protocol. Please open the RTSP stream and TS stream options below）...
  • Page 33 Reboot FBE300 Magicoder Please refer to this manual“7.124 Reboot FBE300 Magicoder”Complete setup （If you need more application setting tutorials, please go to bbs.fmuser.com for help. You can go directly to the Help button in the upper right corner of the background management interface）...
  • Page 34 > FBE300 does not support the function of adding video subtitles for the time being, it will be considered to increase in the future, you can go to bbs.fmuser.com for the update details 6) What is the minimum requirement of FBE300 for network bandwidth? >...
  • Page 35 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 8) I set up FBE300, but my settings did not take effect, what should I do? > You have not clicked the Setup button to save the settings after setting up FBE300. > You have not restarted after setting up FBE300.
  • Page 36 FMUSER INTERNATIONAL GROUP INC. 广州市汉婷信息科技有限公司 Get Help ( http://bbs.fmuser.com ) All FMUSER products are equipped with 10 years technical support. If you have any questions related to our products, please visit http://bbs.fmuser.com and submit a help post, our engineer will reply you quickly.
