Summary of Contents for IsoLux 1300 XSB

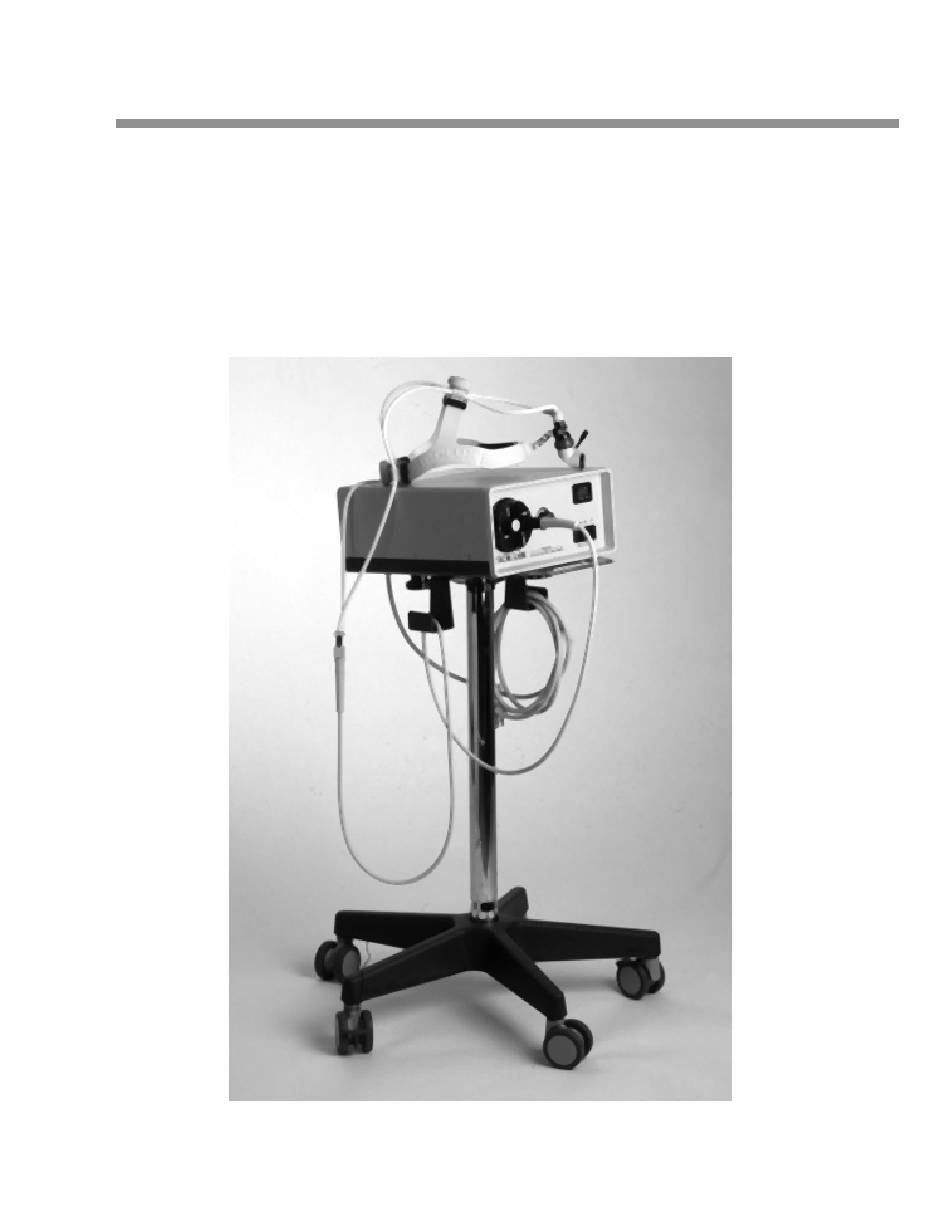

- Page 1 IsoLux ® OPERATION MANUAL MODEL 1300 XSB 300 WATT FIBEROPTIC LIGHT SOURCE OM 1 RevA...
-
Page 2: Table Of Contents
Section 8.0 REPLACEMENT PARTS IsoLux Model 1300 XSB - 300 Watt Xenon Fiberoptic Light Source Appendix A Electrical Schematic, Model 1300 XSB Appendix B IsoLux llc Warranty Statement IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX 978.774.1559... -
Page 3: Introduction
1.0 INTRODUCTION System Description The IsoLux Model 1300 XSB - 300 Watt Xenon Fiberoptic Light Source is a source of continuous high intensity daylight illumination for demanding surgical vision applications. This is a Class I device per CE MDD 93/42/EEC, Class I per UL 2601-1, and a Class II device per FDA regulations. - Page 4 2. Be sure that the fiber optic cable connector is clean and dry before plugging it into the rotary indexing turret. 3. Be sure that the rotary turret port to be used is aligned directly with arrow. IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX 978.774.1559...
-
Page 5: Technical Data
Le Xenon Model 1300 XSB fournit des tensions dangereuses. Véuillez verifier que la prise de courant est déconnectée avant d’entreprendre des inspections ou des reglages sur l’appareil. IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX 978.774.1559... -
Page 6: Installation
7) Turn the above assembly over and place the swivel column into the assembled base with casters. Please follow steps 1 through 7 above in order to complete the assembly of the 22 inch floor stand to the IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX 978.774.1559... -
Page 7: Rotary Turret Operation
Figure 2 Rotary Turret Operation The IsoLux Model 1300 XSB - 300 Watt Xenon Universal Fiberoptic Light Source is equipped with a low profile, non-conductive, indexing rotary turret allowing the adaptation and use of a wide range of fiber optic cables, such as: ACMI / CIRCON, OLYMPUS, STORZ and WOLF. -
Page 8: Xenon Premium Fiberoptic Light Source Operation
7. When procedure is completed, turn the manual intensity control knob counterclockwise to the lowest setting. Then, turn the power switch of the Fiberoptic Light Source in the OFF position and disconnect the fiber optic cable. IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX 978.774.1559... -
Page 9: Maintenance
- Consult the manufacturer or field service technician for help. 4.0 MAINTENANCE Repairs The Model 1300 XSB – 300 Watt Xenon Fiberoptic Light Source has no user serviceable parts. See Section 4.7 in this manual for preventative maintenance. WARNING! Routinely examine hospital approved power cord provided by IsoLux Do not use if it reveals damage. -
Page 10: Lamp Module Replacement
(see figure 1). Lift cover to remove. WARNING! Parts inside the Model 1300 XSB – 300 Watt Xenon Fiberoptic Light Source may exceed 70°C and could create a burn hazard. Allow 20 minutes for cooling down. 3. Remove the screw and clamp that secure the lamp module to its platform. (see figure 2) 4. -
Page 11: Resetting Elapsed Hour Meter
WARNING! When removing the Model 1300 XSB – 300 Watt Xenon lamp module, parts may exceed 70°C and could create a burn hazard. 2. Remove the screw terminals that make the electrical connection to the unit. This also releases the lamp heatsink assembly from the lamp module housing. - Page 12 12. Complete the installation by performing steps 6 and 7 of Section 4.3 and Section 4.4. IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX 978.774.1559...
-
Page 13: Repacking And Environmental Storage Conditions
Repacking and Environmental Storage Conditions If the IsoLux Model 1300 XSB – 300 Watt Xenon Fiberoptic Light Source is to be stored for a prolonged period, shipped to another location, or returned to the factory for repair, repack it in the original packaging material. -
Page 14: Operating Cautions
- This unit should not be used or stored where water or other liquids may splash. - Avoid operating the unit in dusty or dirty environments. Dirt entering the air intake will shorten the life of the lamp. IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX 978.774.1559... -
Page 15: Equipment Order Numbers
07-X300 Power Supply 07-X3PS Elapsed Hour Meter 07-XEHM To obtain additional replacement parts not listed above, please contact Customer Service at IsoLux llc by e-mail at info@isoluxllc.com. IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX 978.774.1559... -
Page 16: Electrical Schematic, Model 1300 Xsb
Warranties are null and void due to accidental dropping of the xenon illuminator(s) and headlight(s). Warranties to be processed within a period of approximately 10-20 working days, excluding holidays. IsoLux llc reserves the right to pass judgment on any and all warranties of product(s) abused or mishandled, including full or partial disassembled.
