BITMAIN AntRouter R1 Manual

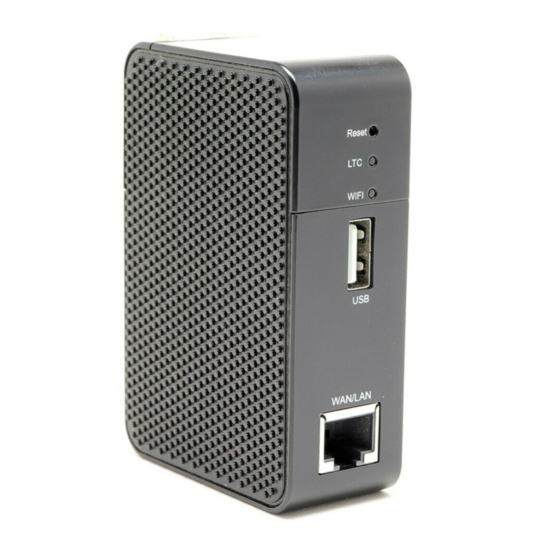

BITMAIN AntRouter R1: a wireless networking device
The AntRouter R1 is a wireless networking device containing a bitcoin mining
chip. The R1 is preconfigured to mine on AntPool's solo mode, meaning that as
long as the device is powered, you are competing for a chance to solve a block and
win about the entire block reward of 25 bitcoins(after deducting the 1% fee).
Shipping starts from Feb. 16 after receiving full payment.
Note: If you're located in Europe or US, the corresponding Plug Adapter is
necessary to be ordered together.
The R1 has several main functions:

1. General Wireless Router

Keep the R1 plugged in at home for use as a standard wireless router, keeping your
phones and computers connected to the internet at home or at the office.

2. Mini WiFi Access Point

Connect your R1 to a router, hub, or any available internet access with
cable, and R1 can turn cabled internet access into wireless. This is the
default operation mode of R1.

3. High Speed USB Charger

Using a USB cable, connect your mobile device to the R1 to charge it. Android
phones, iPhones, and tablets are supported.

4. Bitcoin Mining Host

The R1 can also be used as a controller to manage and run several AntMiner U3s.
Connecting your U3 to the AntRouter R1 via a USB hub eliminates the need to
keep the U3 plugged into your computer.

Technical Specifications:

Front Panel
Input Voltage
Input Current
WiFi Standard
WiFi Band
WiFi Transmission Rate
USB Charge Voltage
USB Charge Current
Dimensions
with bitcoin mining chip
Connect ethernet cable and log into the management system.
110V - 220V
0.2A
802.11 g/n
2.4G
150M
5.0V
Max. 2A
84.5 x 56.5 x 29 mm
