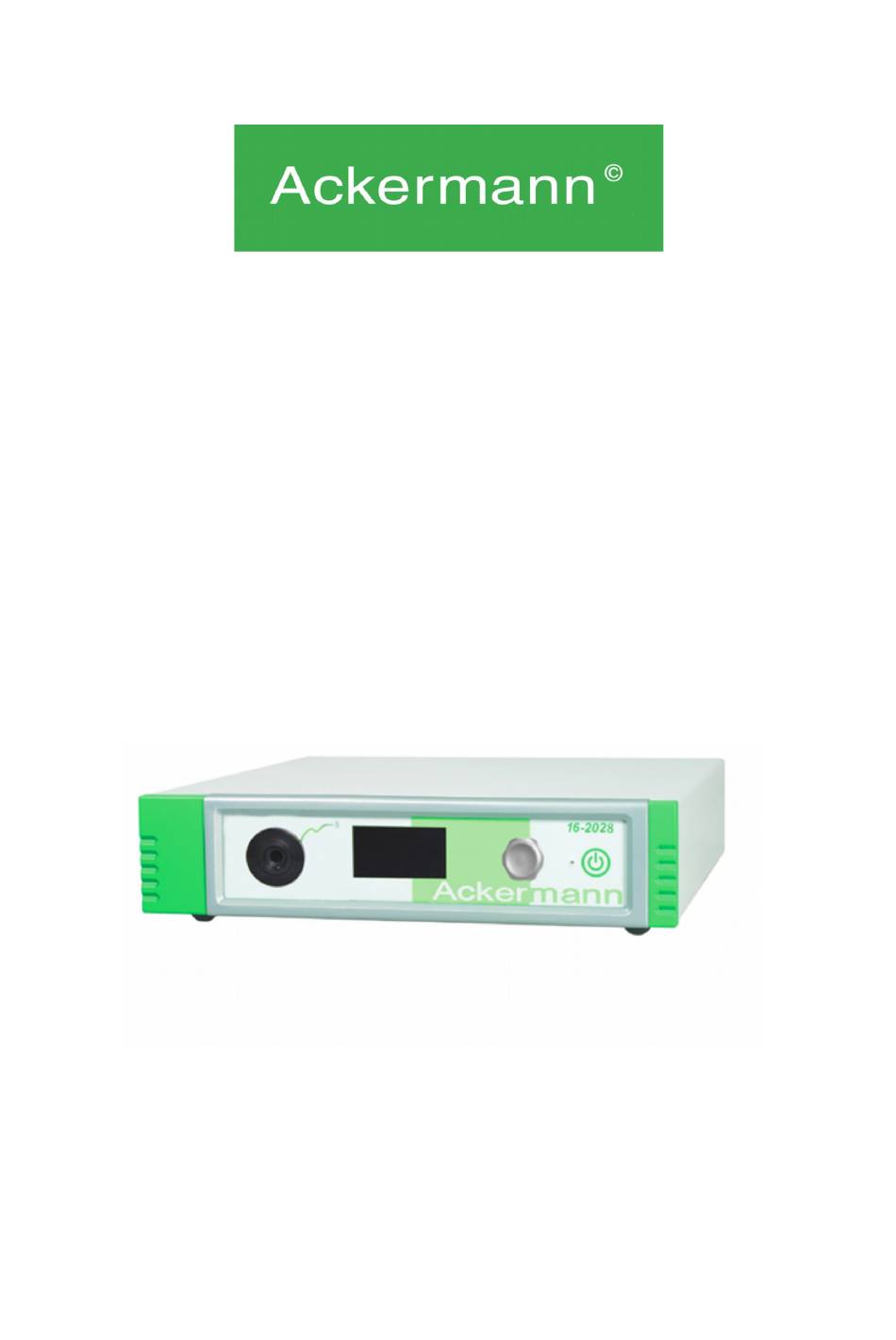

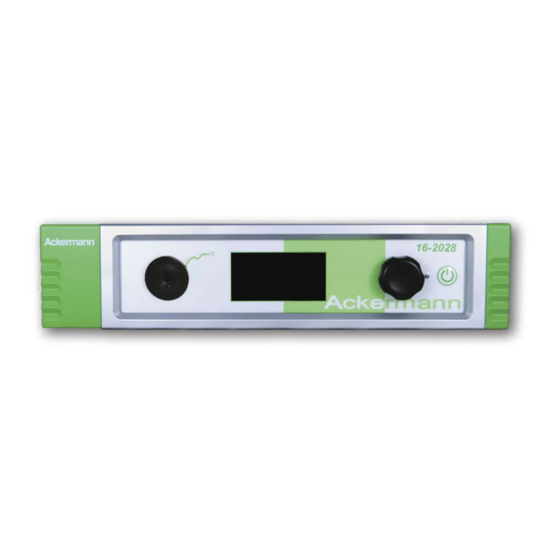

- Page 1 USER MANUAL 16-2028 LED LIGHTSOURCE...
- Page 2 USER MANUAL 16-2028 Rev. 04/2017 These operating instructions contain information that is subject to copyright. All rights are reserved. This manual should not be photo-copied, duplicated on microfilm or otherwise copied or distributed, completely or in part, without the approval of the manufacturer. The manufacturer will appreciate any errors or anything unclear in this operating manual being pointed out to us by users of our products.
-
Page 3: Table Of Contents
USER MANUAL 16-2028 Rev. 04/2017 CONTENTS PAGE 1. FOREWORD 2. INTRODUCTION 3. SAFETY INSTRUCTIONS 4. STANDARDS AND REGULATIONS 5. INSTALLATION OF THE LIGHTSOURCE 6. OPERATION 7. DESCRIPTION OF BACK PANEL 8. RECOMMENDED DECONTAMINATION PROCEDURE 9. AFTER SALES SERVICE AND MAINTANCE 10 TROUBLESHOOTING 11. -
Page 4: Foreword
USER MANUAL 16-2028 Rev. 04/2017 1. FOREWORD Thank you for the trust you have shown in us by acquiring this device. To optimise the use of this device, it is essential to read this manual thoroughly and take all the necessary precautions. - Page 5 USER MANUAL 16-2028 Rev. 04/2017 • Do not expose the device to an excessively humid environment or where it could be sprayed with water. • Only use the accessories supplied with the device or optional accessories recommended by the manufacturer.
-
Page 6: Standards And Regulations
USER MANUAL 16-2028 Rev. 04/2017 This product is fitted with group 1 LEDs in accordance with standard IEC 62471. Do not look directly at the light to avoid any risk of eye damage. 4. STANDARDS AND REGULATIONS 4.1 COMPLIANCE This product was designed and manufactured by a company which has a certified quality system. -
Page 7: Operation
USER MANUAL 16-2028 Rev. 04/2017 • Set the switch [S3] to position 1, the device is then in standby mode (the green light [L1] should flash and a logo should appear in the display [L2]). • Press the Standby button [S1] to switch on the device (the green light is lit and a logo indicating insertion of a light cable appears in the display [L2]). -
Page 8: Recommended Decontamination Procedure
USER MANUAL 16-2028 Rev. 04/2017 7.2 TRANSFORMER / MAINS SOCKET The electrical supply to the device is via an IEC standard mains cord provided with the equipment. 7.3 MAINS SOCKET – FUSES The electrical supply to the device is via the power socket located on the back panel [C3], which must be connected to the mains via the mains cord provided. -
Page 9: Troubleshooting
USER MANUAL 16-2028 Rev. 04/2017 10. TROUBLESHOOTING 10.1 NO LIGHT WHEN THE LIGHT IS SWITCHED ON • Check that the power cord is properly connected to the electricity supply and to the device and that the main switch [S3] on the back of the unit is in the ‘on’ position (“I”). -
Page 10: Electromagnetic Compatibility
USER MANUAL 16-2028 Rev. 04/2017 • Storage and transport humidity: 20% to 85% • Operating, storage and transport atmospheric pressure: 800 hPa to 1060 hPa • Not protected from vertically falling water (IPXO). • Not suitable for use in the presence of an inflammable anaesthetic mixture with air, oxygen or nitrous oxide. - Page 11 USER MANUAL 16-2028 Rev. 04/2017 12.2 GUIDE AND DECLARATION OF THE MANUFACTURER - ELECTROMAGNETIC IMMUNITY PAGE 11 OF 14...
- Page 12 USER MANUAL 16-2028 Rev. 04/2017 12.3 GUIDE AND DECLARATION OF THE MANUFACTURER - ELECTROMAGNETIC EMISSIONS PAGE 12 OF 14...
- Page 13 USER MANUAL 16-2028 Rev. 04/2017 12.4 RECOMMENDED SEPARATION DISTANCES BETWEEN PORTABLE AND MOBILE RF COMMUNICATION SYSTEMS AND THIS PRODUCT PAGE 13 OF 14...
-
Page 14: Symbols
USER MANUAL 16-2028 Rev. 04/2017 13. SYMBOLS PAGE 14 OF 14...
