C07-1A-6 Angular Positioner Operation Manual

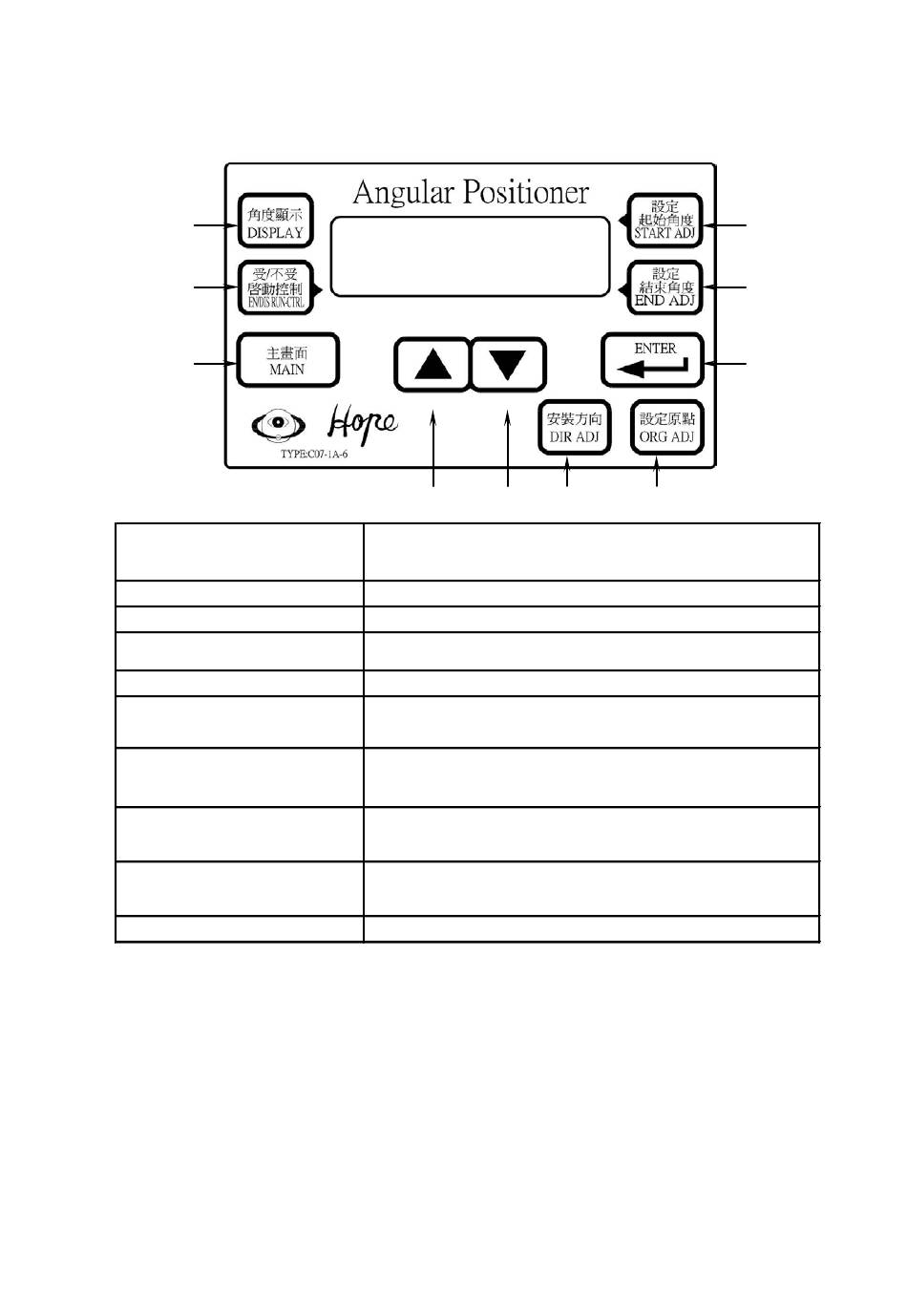

1. PANEL DESCRIPTION：
(1)
(4)
(5)
(1)DISPLAY
(2)START ADJ.
(3)END ADJ.
(4)EN/DIS RUN-CTRL
(5)MAIN
(6)DIR ADJ.
(7)ORG ADJ.
(8)(▲)
(9)(▼)
(10)ENTER
2. MAIN PAGE：
2-1. Angle.
2-2. Output status of 9 angles.
\USEBOOK\C\07\1A\6\1A-6_ENG.DOC
(8)
(9)
Display setting value. After adjust setting value by
(2)(3)(4), press "ENTER" to enter the data.
Press to set starting angle.
Press to set end angle.
Press to select run-control enable/disable of this angle.
Press to return the main page.
Press to select mounting direction of encoder, turn right or
left.
Press to clear display value.This angle will be set to orgin.
(1)Display mode:Press to displsy upward forms.
(2)Setting mode:Press to increase setting value.
(1)Display mode:Press to displsy downward forms.
(2)Setting mode:Press to decrease setting value.
Press to enter the setting value.
(6)
(7)
(2)
(3)
(10)
PAGE:1/6
Advertisement
Summary of Contents for Hope C07-1A-6
- Page 1 C07-1A-6 Angular Positioner Operation Manual 1. PANEL DESCRIPTION： (10) Display setting value. After adjust setting value by (1)DISPLAY (2)(3)(4), press "ENTER" to enter the data. (2)START ADJ. Press to set starting angle. (3)END ADJ. Press to set end angle. (4)EN/DIS RUN-CTRL Press to select run-control enable/disable of this angle.
-
Page 2: Parameter Setting
3. PARAMETER SETTING： 3-1. Start and end setting value of angle 1～9. 3-2. Run-control enable/disable of angle 1～8,(Angle 9 is fixed output). 3-3. Reset origin setting. 3-4. Setting mounting direction of encoder. 4. OPERATION DESCRIPTION： 4-1. Main Page： A N G L E ： X X X ° O U T ：... - Page 3 N O 1 _ S T A R T : X X X ° E N D : X X X ° ▲▼ N O 2 _ S T A R T : X X X ° E N D : X X X ° ▲...
- Page 4 The area is blinked, until to press “ENTER” key. N O 1 _ S T A R T : X X X ° E N D : X X X ° 4-2-4. End angle setting When pressing ”END ADJ” key, “END” is blinked. End angle value is increased/decreased by pressing〝▲...
- Page 5 4-2-6. Mounting direction： https://youtu.be/_ueWdX_fT-M After pressing “DIR ADJ” key, change over CW/CCW by pressing〝▲ ▼〞keys. After pressing〝ENTER〞,the data is confirmed and this display will be changed over back to the main page. As below: I N S T A L L _ D I R : C W Clockwise I N S T A L L _ D I R : C C W Anti-clockwise...
- Page 6 Please close Power, and then checks the encoder connection is OK. E N C O D E U N L I N K E N C O D E E R R O R 4-4. Memory Abnormality When the memory is abnormal, all outputs are OFF. As below: Please reset the Angular Positioner.
