EE610 Декоративная LED лампа с датчиком движения Decorative LED lamp with motion detector 6LE000756C...
Page 2
Устройство должно быть установлено Монтаж квалифицированым персоналом в соотвествии с действующими нормами. Клац Все манипуляции необходимо проводить с обесточеным устройством. Монтаж • Введите кабель через кабельный ввод 1 для того чтоб обеспечить доступ к кабелю во время монтажа • Прикрепите к стене основу 2 используя 2 винта...
Page 3
Настройки Тестирование и проверка зоны обнаружения Задержка Яркость Установите потенциометр в режим “test”. (продолжительность работы Режим “test” доступен 3 мин. После каждого светодиодной лампы) обнаружения движения свет включается на 1с. После 3 мин без обнаружения движения, датчик возвращается в обычный режим работы. “Нормальная...
Page 4
Использование пульта Действие Настройки Потенциометр дистанционного управления Автоматические настройки Использовать (опция: акртикул. EE806 / 52900) авмтоматические Установите потенциометр в положение “auto test”. настройки Датчик движения получает команды от пульта Настройки: (заводские) или когда потенциометр яркости установлен в Lux = , (работает только в установленые...
Аксессуары Крепежные винты и дюбели Стандарты EN 60598-2-5 (07/1999) EN 60669-2-1 (08/2004) å Для использования в Европе и Швейцарии Настоящим, Hager Controls, заявляет что лампа соответствует основным требованиям и дерективам низкого напряжения 2014/35/EC и CEM 2014/30/EC. С СЕ декларациями можно ознакомится на сайте:...
Page 6

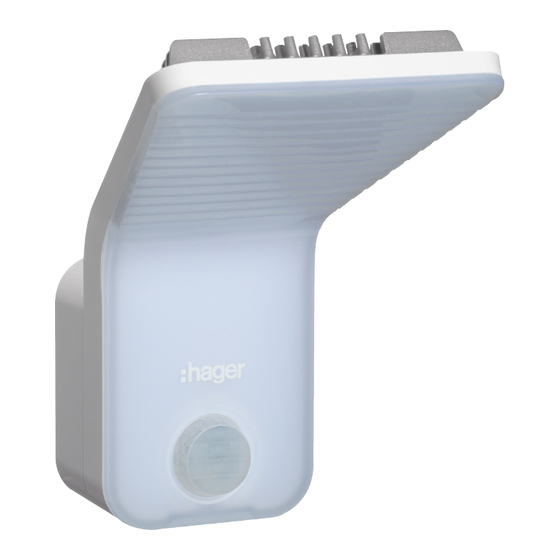

Product description and working principles Aluminium heat sink The EE610 LED lamp is equipped with a detector sensitive to infrared radiation linked to the emission of heat from any moving body. The detector turns on the lamp when a body that emits heat moves within in its area of detection.
This device is to be installed only by a Installation professional electrician according to local applicable installation standards. Be sure to perform all manipulations with the device switched off. Installation • Insert the cable into the cable grommet 1 in order to facilitate access to the cables during assembly.
Settings Testing and validating the detection zone Temporisation Brightness Put the potentiometer on “test” mode. (duration of operation of The “test” mode is available for 3 min. Every the LED light source) movement detected switches on the light for 1s. After 3 min without detection of movement, the product returns to normal operation.
Page 9
Using the remote control Action Settings Potentiometer (option: ref. EE806 / 52900) Use Auto settings Auto Settings The detector receives instructions from the (factory) or set by Put the lux potentiometer on remote control when the lux potentiometer the remote control “auto test”.
EN 60669-2-1 (08/2004) å Usable in all Europe and in Switzerland Hereby, Hager Controls, declares that this LED lamp is in compliance with the essential requirements and other relevant provisions of the low voltage directives 2014/35/EC and CEM 2014/30/EC. The CE declaration can be consulted on the site:...
