This manual describes how to install the product. Read carefully this manual before using

this product and install the product according to guideline. And after reading this manual,

keep it well and, if the person in charge is changed, be sure to hand over this manual to the

successor and let he/she use the product correctly.

The content and image in this manual can be changed without notice by reason of product's

function improvement or etc.

The content of this manual is protected by copyright. Therefore, do not change the content of

this manual without permission of our company.

Issued by

DASAN Networks

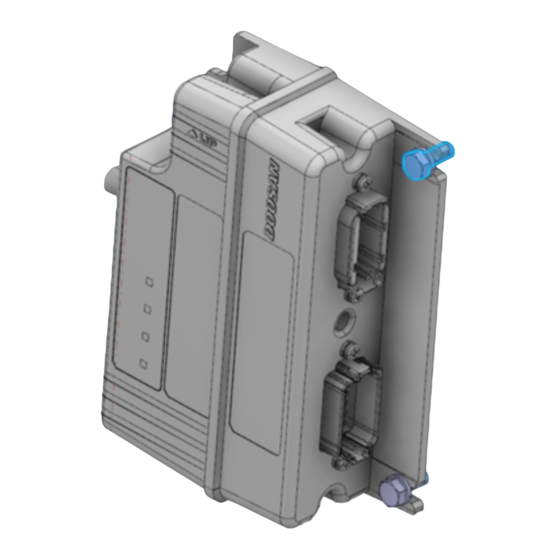

TMS3.0

(Vehicle Control Terminal)

Installation Manual

version 3.1

Table of Contents

Need help?

Do you have a question about the TMS3.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dasan TMS3.0

Page 1 TMS3.0 (Vehicle Control Terminal) Installation Manual version 3.1 This manual describes how to install the product. Read carefully this manual before using this product and install the product according to guideline. And after reading this manual, keep it well and, if the person in charge is changed, be sure to hand over this manual to the successor and let he/she use the product correctly.
Page 2 TMS3.0 Internal Confidential Installation Manual Revision history of document Version Date Description V1.0 2019-02-19 Initial release release V2.0 2019-07-01 Type A removed LTE Connector release Add FCC/CE/IC requirement V3.0 2020-09-14 Iridium/GPS/WiFi Connector changed LED Specification changed release V3.1 2020-09-16 Changed PMN...
Page 3: Table Of Contents
TMS3.0 Internal Confidential Installation Manual Contents 1. Precautions In Product Handling ............. 6 2. System Overview ................9 3. Product Interface & Specification ............ 10 3.1 Classification By Product ..............10 3.2 Product Specification ................13 3.3 Product Interface ................. 13 3.4 Product Antenna Specification .............
Page 4 Fig. 3.3 Overall Shape Of TMS3.0 Type-C ..............11 Fig. 3.4 Overall Shape Of TMS3.0 Type-D ..............12 Fig. 3.5 Front Common Connector Shape Of TMS3.0 ..........13 Fig. 3.6 Rear Connector Shape Of TMS3.0 Type-A ............ 14 Fig. 3.7 Rear Connector Shape Of TMS3.0 Type-B ............ 14 Fig.
Page 5 TMS3.0 Internal Confidential Installation Manual Tables Tab. 3.1 TMS3.0 Classification By Product .............. 10 Tab. 3.2 TMS3.0 Product Specification ..............13 Tab. 3.3 TMS3.0 Interface Specification ..............15 Tab. 3.4 TMS3.0 Antennal Specification ..............15 Tab. 3.5 TMS3.0 LED Specification ................. 16...
Page 6: Precautions In Product Handling
TMS3.0 Internal Confidential Installation Manual 1. Precautions In Product Handling Read carefully the following contents before handling this product and use this product cor- rectly according to guidelines. And after understanding precautions well, keep this manual well and let manager or user use this manual before and after installing product or before handling product.
Page 7 TMS3.0 Internal Confidential Installation Manual FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 8 TMS3.0 Internal Confidential Installation Manual IC Compliance This device contains licence-exempt transmitter(s)/receiver that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is sub- ject to the following two conditions:(1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
Page 9: System Overview
TMS3.0 Internal Confidential Installation Manual 2. System Overview Enables real time monitoring of equipment operating information and state information in a remote place through mobile communication or satellite communication, and, through the real time monitoring, user, dealer, customer can raise efficiency of equipment management.
Page 10: Product Interface & Specification
Internal Confidential Installation Manual 3. Product Interface & Specification This page describes product interface and specification. Classification By Product Type-A Type-B Type-C Type-D Satellite LTE(2G/3G/LTE) Wi-Fi/BT 100BASE-T1 (BroadR-Reach) Tab. 3.1 TMS3.0 Classification By Product Fig. 3.1 Overall Shape Of TMS3.0 Type-A...
Page 11: Fig. 3.2 Overall Shape Of Tms3.0 Type-B
TMS3.0 Internal Confidential Installation Manual Fig. 3.2 Overall Shape Of TMS3.0 Type-B Fig. 3.3 Overall Shape Of TMS3.0 Type-C...
Page 12: Fig. 3.4 Overall Shape Of Tms3.0 Type-D
TMS3.0 Internal Confidential Installation Manual Fig. 3.4 Overall Shape Of TMS3.0 Type-D...
Page 13: Product Specification
Size (H x W x D) 174 x 122 x 52.4mm Operation Temperature -30 ~ +75℃ Operation Humidity 10 ~ 95% RH Storage Temperature -40 ~ +85℃ Tab. 3.2 TMS3.0 Product Specification Product Interface Fig. 3.5 Front Common Connector Shape Of TMS3.0...
Page 14: Fig. 3.6 Rear Connector Shape Of Tms3.0 Type-A
TMS3.0 Internal Confidential Installation Manual Fig. 3.6 Rear Connector Shape Of TMS3.0 Type-A Fig. 3.7 Rear Connector Shape Of TMS3.0 Type-B Fig. 3.8 Rear Connector Shape Of TMS3.0 Type-C Fig. 3.9 Rear Connector Shape Of TMS3.0 Type-D...
Page 15: Product Antenna Specification
DT13-12PA Security Serial RX/TX Cold Reset Solenoid Secondary Connector Digital Input DTM13-12PA 100BASE-T1 x 2 Serial RX/TX Tab. 3.3 TMS3.0 Interface Specification Product Antenna Specification Item Part No. Connector Type Length [mm] HGPS-AX-0108A-04 SMA-Male 3320 Iridium : TNC-Male (Standard) Iridium/GPS...
Page 16: Tab. 3.5
Lighting Normal Wi-Fi Lighting Antennal Non-Connection Blinking 500ms WiFi Module Fault Green Lighting Link Connection Eth Port Green Blinking Data Transmission & Reception Eth Port Green Lighting Link Connection Green Blinking Data Transmission & Reception Tab. 3.5 TMS3.0 LED Specification...
Page 17: Installation Preparation
TMS3.0 Internal Confidential Installation Manual 4. Installation Preparation Installation Method Fig. 4.1 Installation Block Diagram Of TMS3.0 * Blue Colored Location: Screw Hole Installation * Mounting Height: Under 2m * Screw Specification PN: S0504653 (M6X1.0X16) Surface treatment: Black Strength: 8.8...
Page 18: Fig. 4.2 Mounting Example Of Tms3.0
TMS3.0 Internal Confidential Installation Manual Fig. 4.2 Mounting Example of TMS3.0...
