Summary of Contents for Teleco Simple Panel

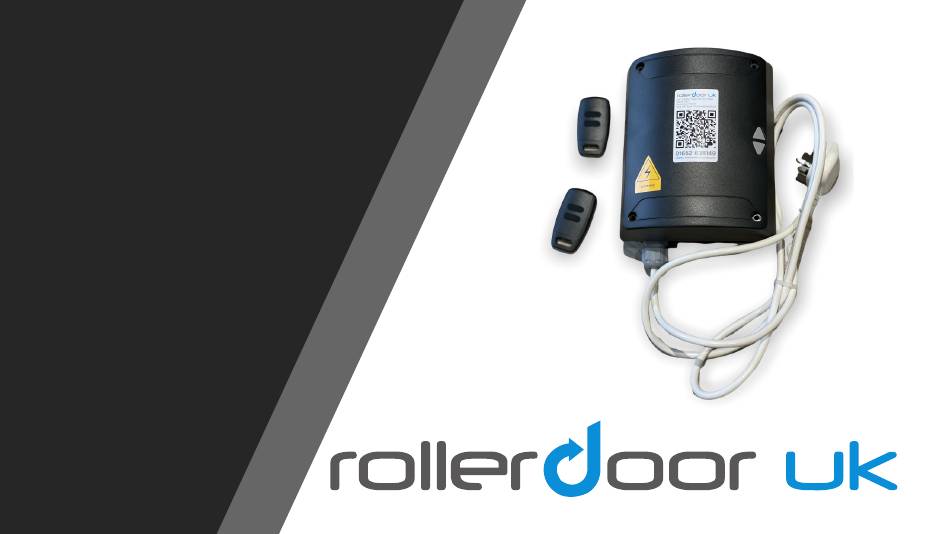

- Page 1 Teleco Simple Panel – Set up guide Wired safety edge system...
- Page 2 Please ensure when fixing the control panel to the wall you use the template provided to prevent any damage during installation, failure to do so may invalidate your warranty. Wiring the motor into the control panel Left Hand motor wiring Black 5 – Blue 6 –...
- Page 3 Wired Safety Edge Set Up Remove the resistor from terminals 16 & 17 Wire your spiral cable into the control panel Brown Green 17, White 18 Your spiral cables comes pre-wired into the junction box so all you need to do is wire the opposite end into the control panel.
- Page 4 Motor limits and set up Limit The control panel has to detect the TOP limit before normal operation and each time Adjuster after mains power is turned off and then on again. It is important to set the motor limits first using either a test lead or the two buttons inside the control panel and the limit adjustment screws.
- Page 5 Programming a transmitter to 2 channel One button to Open & One button to Close Please note: you have 8 seconds to do this step, if you get a series of beeps you will need to start the transmitter programming again. Press P1 &...
- Page 6 Programming a transmitter to 1 channel - Both doors on one transmitter (2 door installation) Please note: you have 8 seconds to do this step, if you get a series of beeps you will need to start the transmitter programming again. Press P1 &...
- Page 7 Deleting all transmitters from the control panel 1. Switch the panel off & back on again – within 5 seconds press P1 & P2 together 3 times. 2. Press the white P1 button (circled) in the control panel 5 times and hold on the 5 press –...
- Page 8 Safety Edge Exclusion in the last 5cm of travel If the door reopens having hit the floor the safety edge exclusion should be set to ‘turn off’ the edge 50mm before it hits the floor. Power on & within 30 seconds L1 & L2 lights are on for 5 Seconds & then L1 & L2 lights turn off. Within 5 seconds of step 1 press &...
-
Page 9: Dip Switch Positions
Dip switch positions The dips switches are pre set and should not need to be touched. (as shown) 1 - ON 2 - OFF If the door beeps 5 times instead of closing, dip switch 2 may be in the wrong position. To alter the dip switches this must be done within 30 seconds of powering on the control panel Please ensure you follow each step before moving onto the next page...
