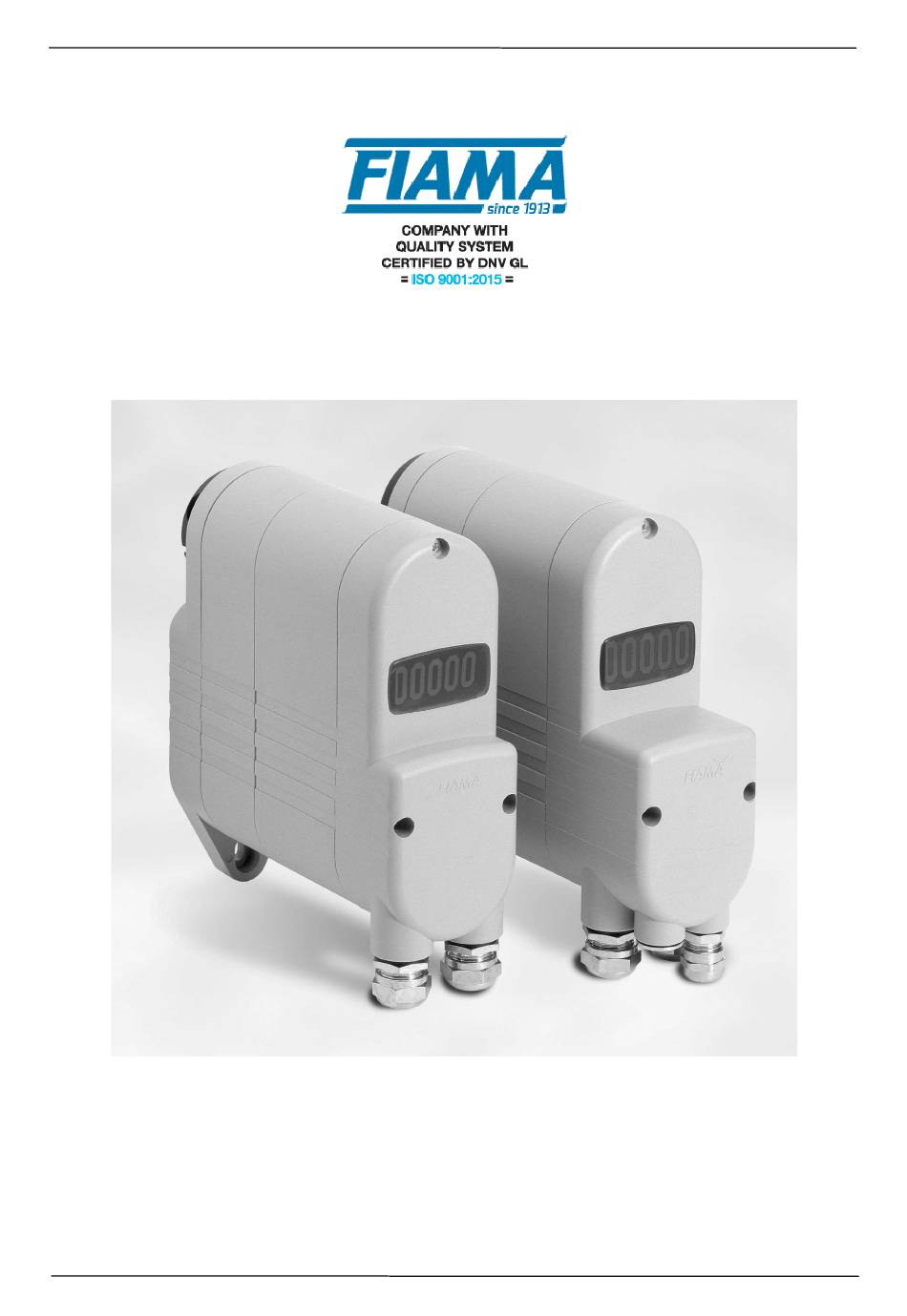

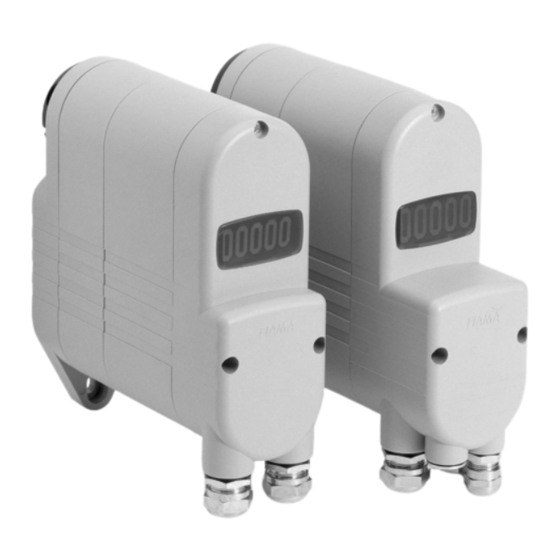

- Page 1 SERVO.M_E-P Positioning unit USER’S MANUAL AND MAINTENANCE POSITIONING UNIT “SERVO.M-E” “SERVO.M-P” Data: 01/12/20 file: Servo.M_EP_CS_1.7_ing.doc pg 1/7...
- Page 2 Do not use hydrocarbon solvents (petrol, diluents, etc.): the using of these products could affect the proper functioning of the instrument. Reparations should be done only and exclusively at the FIAMA technical assistance centre. Assistance request procedure For any kind of technical assistance request, contact the sales department of the Manufacturer directly indicating the information given on the identification plate, the number of hours used and the type of defect.
- Page 3 PID. The version SERVO.M-E has a position transducer with an incremental optic encoder, while the version SERVO.M.P has a precision potentiometer.
- Page 4 SERVO.M_E-P Positioning unit Power supply a) Before connecting the unit, check that the power supply tension is within the permitted limits and that it corresponds to the one indicated on the tag. b) Carry out the electrical connections with the instrument disconnected. c) For the power line to instruments and sensors, a power supply line separate from that of the power is required : it is necessary to use an isolating transformer.
- Page 5 SERVO.M_E-P Positioning unit CANOPEN - MODBUS PROFIBUS - MODBUS Power Supply 24VDC Power Supply 24VDC ÷B2 ÷B2 = PROFIBUS B line, +RS485 = CAN-L, +RS485 ÷A2 ÷A2 = PROFIBUS A line, - RS485 = CAN-H, - RS485 CAN_GND COM = Before setting SERVO it is necessary to set the address and baud rate of device using dip-switch S1 and S2 as showed in the following table according to the model of SERVO used.
- Page 6 SERVO.M_E-P Positioning unit Setting of device address – PROFIBUS protocol The setting of address is made by dip-switch S2 (set at factory at 1). Valid addresses from 1 to 127. The speed is measured automatically. ADDRESS etc…… etc…… Setting of device address and serial communication speed – CANopen protocol Transmission speed of serial communication (baud rate: 10, 20, 50, 100, 125, 250, 500, 1000kbaud).
- Page 7 Tel. (+39) 0521.672.341 - Fax. (+39) 0521.672.537 – e-mail: info@fiama.it - www.fiama.it FIAMA srl is not responsible for any damage to persons or things caused by tampering and wrong use and in any case that are not consistent with the features of the instrument.
