Summary of Contents for Accel FX POWER SOURCE 12

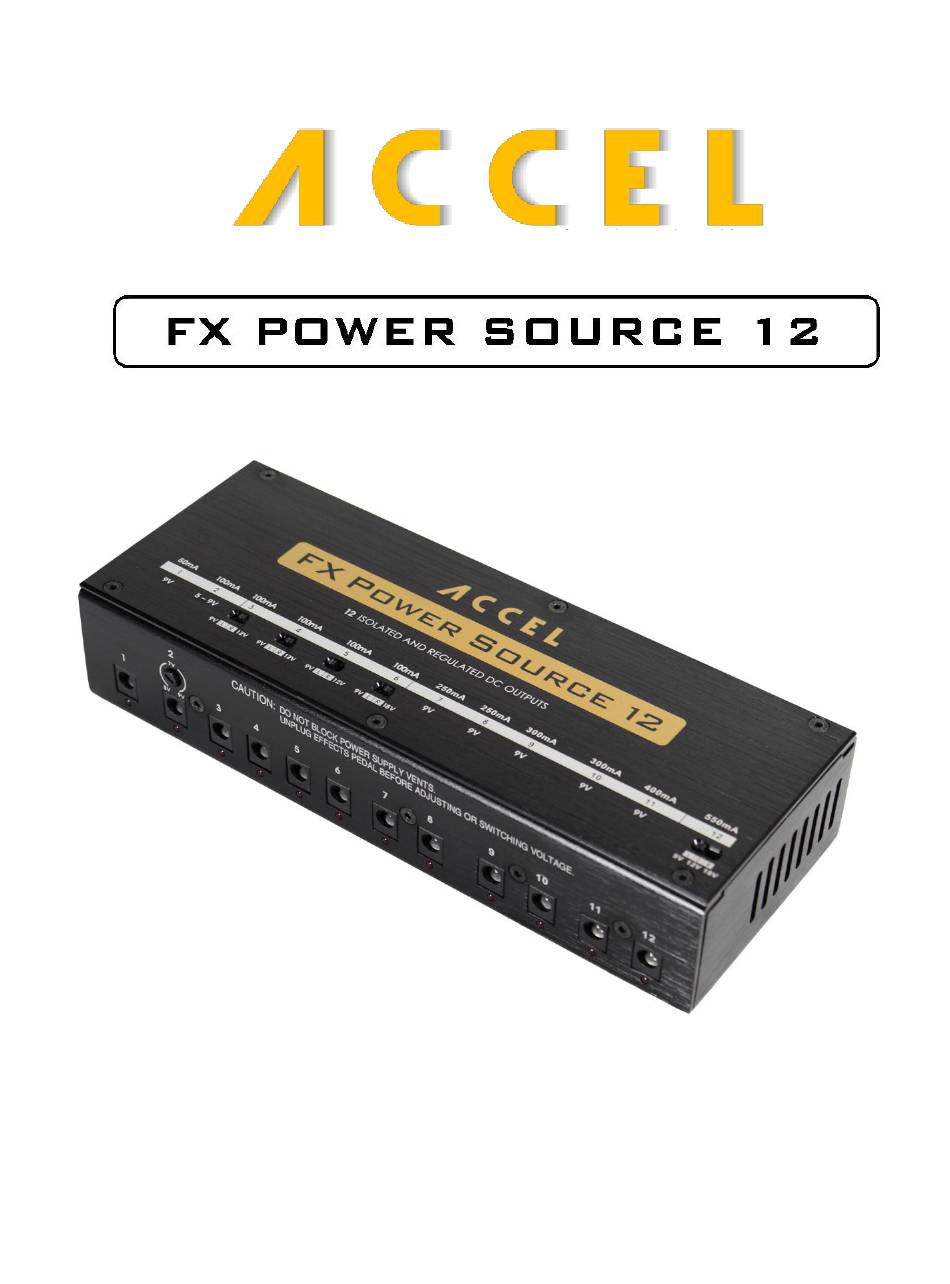

- Page 1 USER’S MANUAL...
- Page 2 Our FX Power Source 12 mounts conveniently currently onto our Accel XTA21 pedal boards with only three M4 mounting screws (supplied). The FX Power Source 12, powers 9V, 12V & 18V effects pedals. While there is 1 adjustable output (5V-9V), 3 selectable outputs (9V or 12V), 1 selectable output (9V or 18V) and 1 selectable output 9V, 12V or 18V), 9V’s are available on all outputs to work...
- Page 3 General information: (Quick View) 9V power options: Outputs: 1-12 Designed to handle every 9V pedal on the market that requires 1mA -550mA. Outputs 1 - 6 An effects pedal that has the option of being powered by a 9V battery can be powered by any outputs 1-6 set to 9V.
- Page 4 The grounding prong is provided for your safety. 9. CAUTION!!! The exclamation with arrowhead symbol within a equilateral triangle is intended to alert the users to the risk of damage to the FX Power Source 12 power supply if cautionary instructions are not followed.
- Page 5 DO NOT OPEN. NO USER SERVICEABLE COMPONENTS INSIDE. 100 - 120V REFER TO QUALIFIED SERVICE PERSONNEL. AC INPUT (1) AC Power Input Jack: AC Power Cord supplied. FX Power Source 12 12 ISOLATED AND REGULATED DC OUTPUTS 50mA 100mA 250mA 250mA 300mA...
-
Page 6: Air Vents
Component Description Drawings (Continued) CAUTION: DO NOT BLOCK POWER SUPPLY VENTS. UNPLUG EFFECTS PEDAL BEFORE ADJUSTING OR SWITCHING VOLTAGE . 12 PLACES 12 PLACES (8) Output Jacks (“negative center” barrel) (9) Power good indicators for each output. Caution: Do not plug devices (such as effects pedals) in until you have verified the applicable output is rated for the matching voltage of your device or set to the correct voltage of your device. - Page 7 Component Description Drawings (Continued) POWER SUPPLY MOUNTING HOLES ALTERNATE MOUNTING: USING 3M DUAL LOCK STRIPS 3M DUAL LOCK was designed as an alternative to hardware mounting. Once locked in place. You will either need to pry the power supply out "at an angle" with strong hands or a pry type tool, unless you are a gorilla.
-
Page 8: Dimensional Drawing
2.100 53.3 1.299 .400 POWER SUPPLY 4.884 10.2 MOUNTING HOLES 124.1 M4 THREADS .394 5 PLACES 1.772 8.664 FX Power Source 12 3.390 12 ISOLATED AND REGULATED DC OUTPUTS 50mA 100mA 250mA 250mA 300mA 300mA 400mA 550mA 100mA 100mA 100mA... - Page 9 INPUT: Detachable AC cord Country Input AC Volt North America 120V/60Hz Japan 100V/60Hz OUTPUTS: All Outputs are completely isolated from each other. All Outputs are regulated. Over current protection on each output. DC Voltage Current 50mA 5V-9V 180mA-100mA 9.6V/12.4V...
- Page 10 FX Power Source 12 Mounting Instructions Mounting pattern template: For those who already have a different pedal board other than our Accel applicable XTA models of pedal boards that fit this power supply. A mounting template and our standard M4 thread mounting hardware have been provided.
-
Page 11: Warranty
5 years from the purchase date. Fixing or replacing the unit will be at Accel’s discretion. Any problem that is caused by abuse, misuse, or an act of God (such as a flood) are not covered. In order to be eligible for service under this warranty you must retain proof of purchase.
