Summary of Contents for Feider Machines FP710

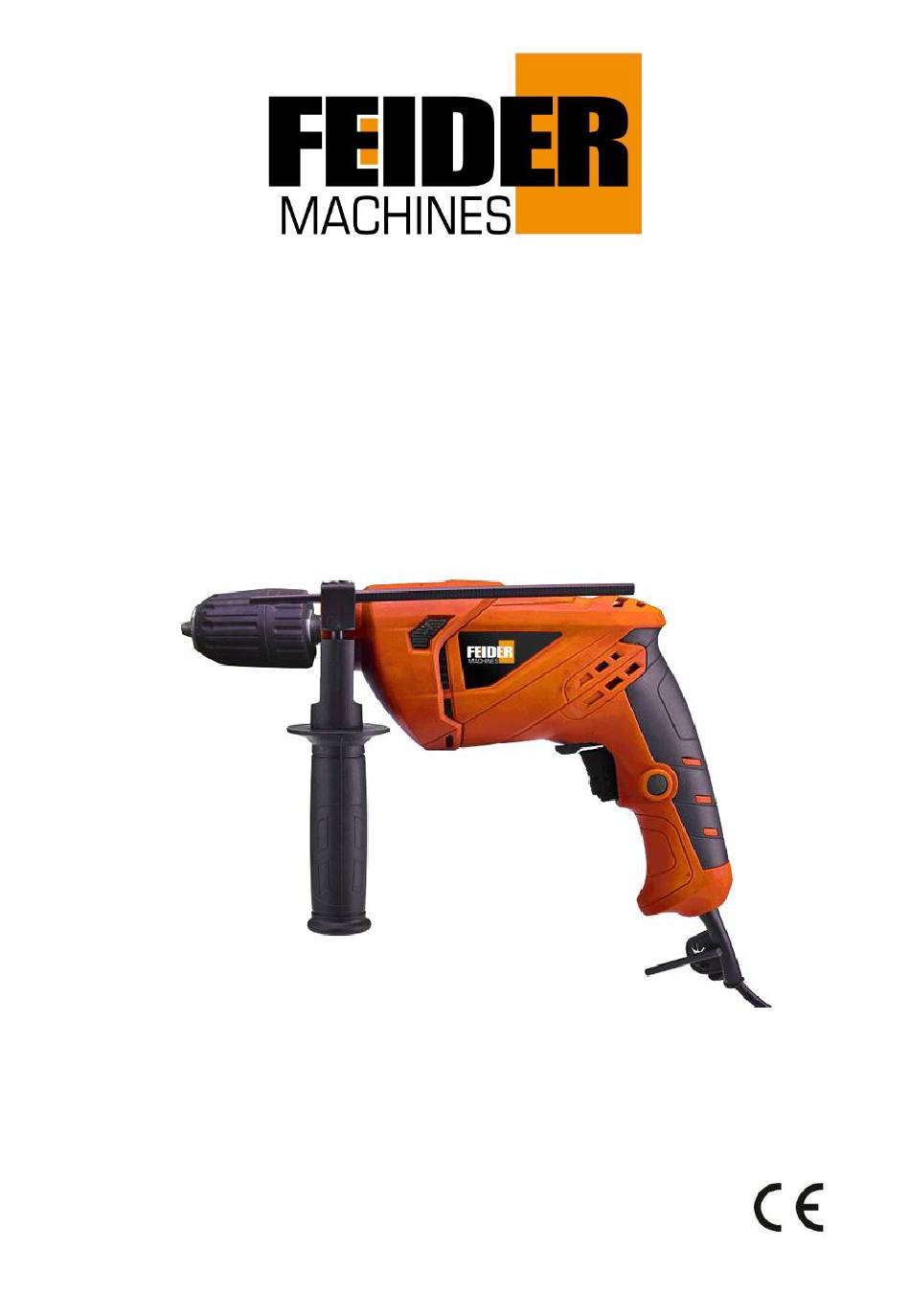

- Page 1 ORIGINAL INSTRUCTIONS 710 W PERCUSSION DRILL FP710 READ THE INSTRUCTION MANUAL BEFORE USING THE TOOL BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC...
-
Page 2: General Power Tool Safety Warnings
SYMBOLS In this manual and/or on the machine the following symbols are used: WARNING-To reduce the risk of injury, user must read instructions carefully In accordance with essential applicable safety standards of European directives Class II machine – Double insulation – You don’t need any earthed plug. Wear eye protection. -
Page 3: Electrical Safety
2.2 ELECTRICAL SAFETY a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. -
Page 4: Specific Safety Instructions
taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. -
Page 5: Package Content List
4、DESCRIPTION 1. Chuck 2. Depth gauge 3. ON / OFF switch 4. Lock – on button 5. Speed control dial 6. Forward / reverse lever 7. Auxiliary handle 8. Impact/Drill switch 5、PACKAGE CONTENT LIST WARNING Packaging materials are not toys! Children must not play with plastic bags! There is a danger of suffocation! 1 impact drill 1 instruction manual... -
Page 6: Operation
6、ASSEMBLY Disconnect the power plug before carrying out any adjustments or maintenance. 6.1 Inserting bit or drill Open the chuck (1). Insert the drill or bit in the chuck. Tighten the chuck firmly. Check if the bit or drill is in the centre of the chuck. 6.2 Auxiliary handle The auxiliary handle (7) will provide additional control and support for the drill. -
Page 7: Cleaning And Maintenance
8、 CLEANING AND MAINTENANCE Disconnect the power plug before carrying out any adjustments or maintenance 8.1 Cleaning Keep the ventilation slots of the machine clean to prevent overheating of the engine. Regularly clean the machine housing with a soft cloth, preferably after each use. ... - Page 8 The safety measures to protect the operator are identified based on an estimation of exposure in the actual conditions of use. Noise emission values measured according to relevant standard. Copper winding No load Sound pressure level Lpa = 81,9 dB(A) K= 5 dB(A) Sound power level Lwa = 93,4 dB(A) K= 5 dB(A) Impact drilling into concrete: Sound pressure level = 92,9 dB(A) K= 5 dB(A)
- Page 9 BUILDER SAS ZI, 32, rue Aristide Bergès – 31270 Cugnaux – France Declare that the following tool: PERCUSSION DRILL FP710 Serial number: 20211002224-20211002823 Is in conformity with the Directive « machine » 2006/42/CE Also in conformity with the following Directives:...
-
Page 10: Warranty
14. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 11: Product Failure
15. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 12: Warranty Exclusions
16. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
