USER MANUAL
PoE Splitter with switchable output power
NW-PSSO-004

Advanced PoE Solution

The PoE Splitter splits a networked PoE Signal into separated power and Gigabit data sources. This device
allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal
into separated data and power sources in order to network non-PoE devices. Save installation and
equipment cost when installing 802.11n access points, (Pan/Tilt/Zoom) IP cameras and more in remote
locations. No need to install network devices near a power outlet. This compact device safeguards valuable
network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network
at Gigabit speeds.

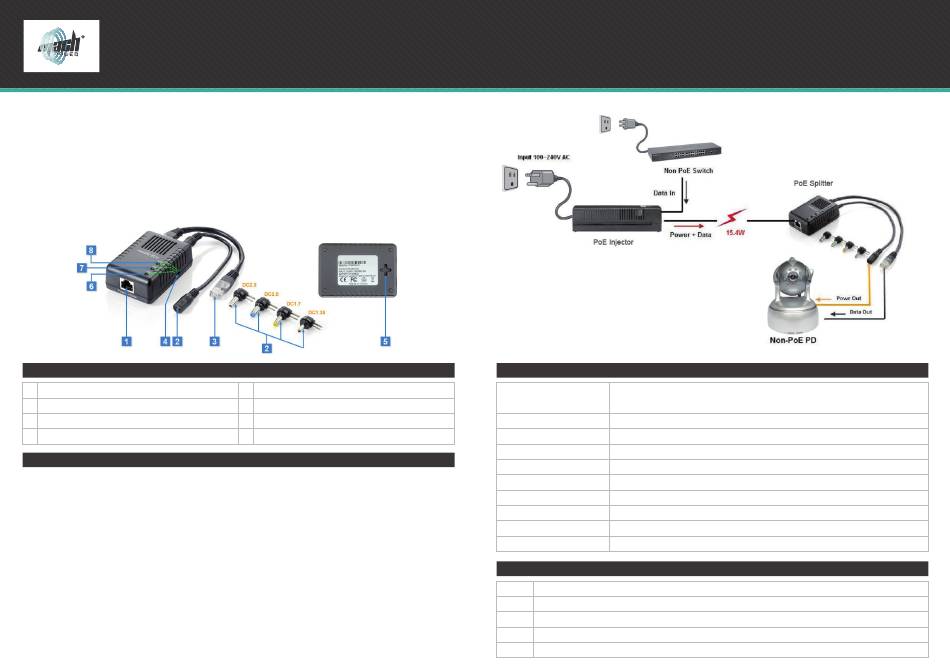

INTERFACE DESCRIPTION

1
RJ-45 input Port (power+data)
2
Interchargeable tips (power out)
3 RJ-45 output port
4 Adjustable DIP switch (5V / 9V / 12V)

KEY FEATURES

• Network devices at 10/100Mbps all within a compact device
• Automatically detects PoE terminals and supplies inline power
• Easily install non-PoE devices where a power outlet is not available
• Reduce installation and network equipment costs
• Safeguards network device with short circuit protection
• Adjustable output DIP switch for 5V, 9V, and 12V adjustable output
• Converts Non-PoE devices with Power Over Ethernet Support
• Auto-sensing power drawn from 802.3af power source equipment(PSE) devices
• Supplies power up to 12.9 watts
• Provides Interchangeable tips
5
Wall-Mountable
6
PoE LED 5V (green)
7 PoE LED 9V (green)
8 PoE LED 12V (green)

TECHNICAL SPECIFICATION

Standards Compliance
IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-Tx Fast Ethernet
IEEE 802.3af Power over Ethernet
Diagnostic LEDs DC Power (Green)
Data Rate RJ-45, 10/100 Mbps
Input Power Voltage
Pin Assignment and Polarity: 1/2(+), 3/6 (-) or 4/5(+), 7/8(-)
Output Power Voltage 5V (2A), 9V (1.1A), 12V (0.85A)
Dimensions 80mm x 55mm x 31mm
Weight
76g
Operating Temperature
0~45°C
Storage Temperature 95%, Non-condesing
Certification RoHS Compliant, CE/FCC

PACKAGE CONTENT

x1
Poe Splitter
x1 Quick Installation Guide
x1
Network cable
x1
DC Cable
x4 Interchageable tip
