ELECTRICAL

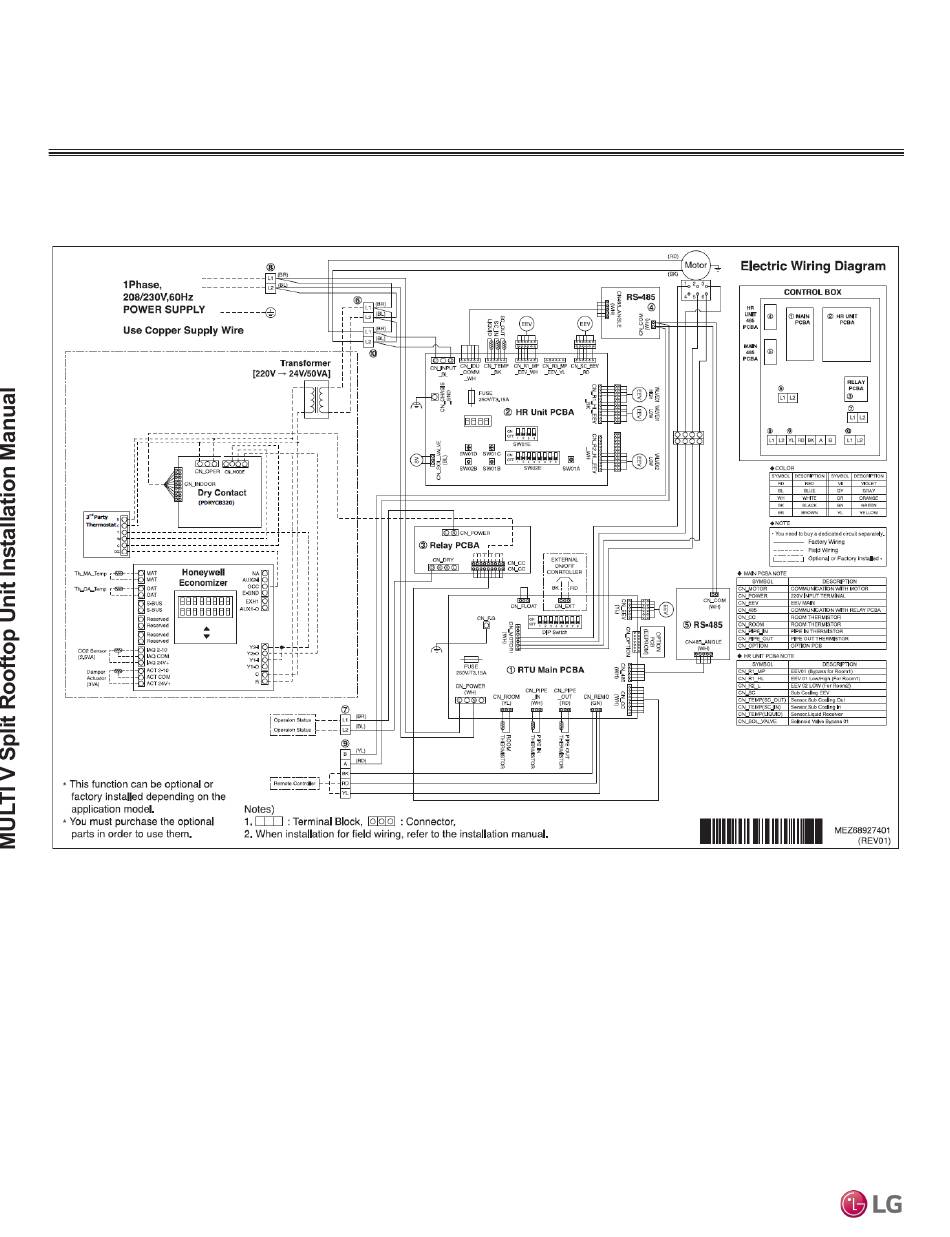

Electrical Wiring Diagram
Electrical Wiring Diagram (when using Dry Contact PDRYCB320)
Figure 41: ARNU363~723DDA4 Wiring Diagram (Dry Contact PDRYCB320).
