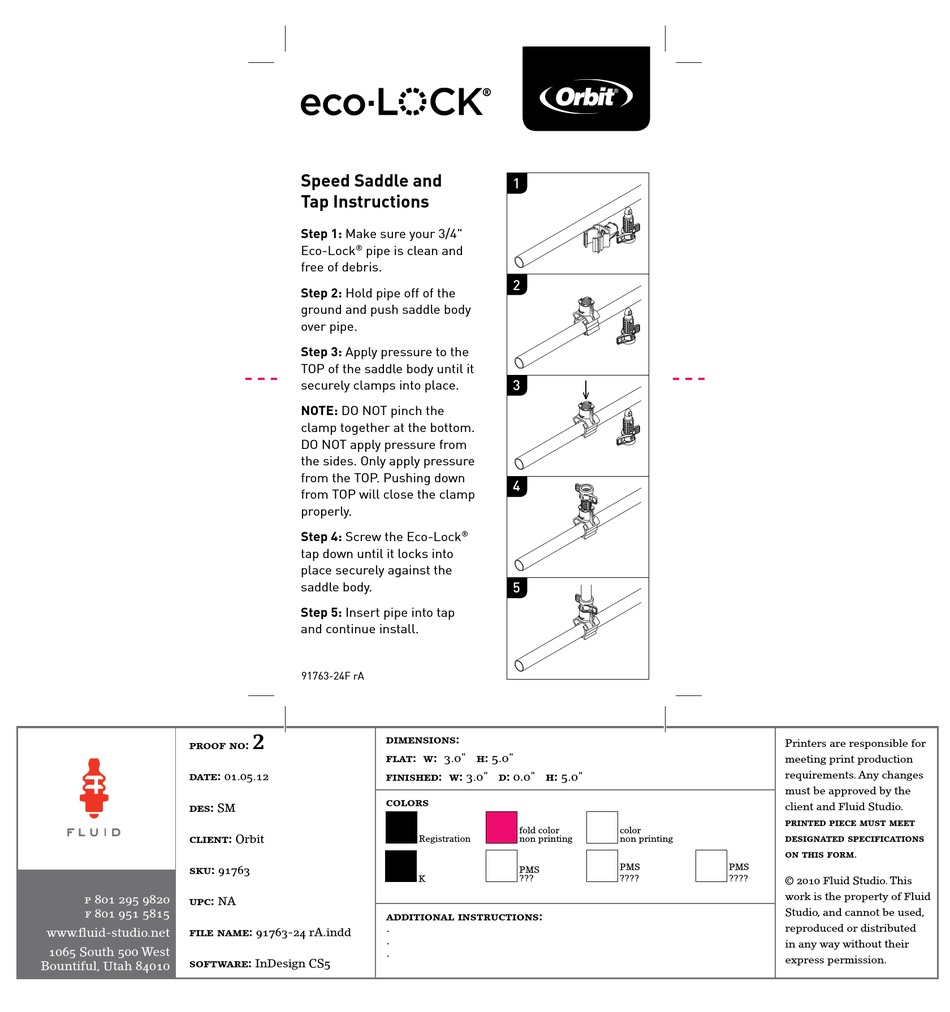

Speed Saddle and
Tap Instructions
Step 1: Make sure your 3/4"
Eco-Lock ® pipe is clean and
free of debris.
Step 2: Hold pipe off of the
ground and push saddle body
over pipe.
Step 3: Apply pressure to the
TOP of the saddle body until it
securely clamps into place.
NOTE: DO NOT pinch the
clamp together at the bottom.
DO NOT apply pressure from
the sides. Only apply pressure
from the TOP. Pushing down
from TOP will close the clamp
properly.
Step 4: Screw the Eco-Lock
tap down until it locks into
place securely against the
saddle body.
Step 5: Insert pipe into tap
and continue install.
