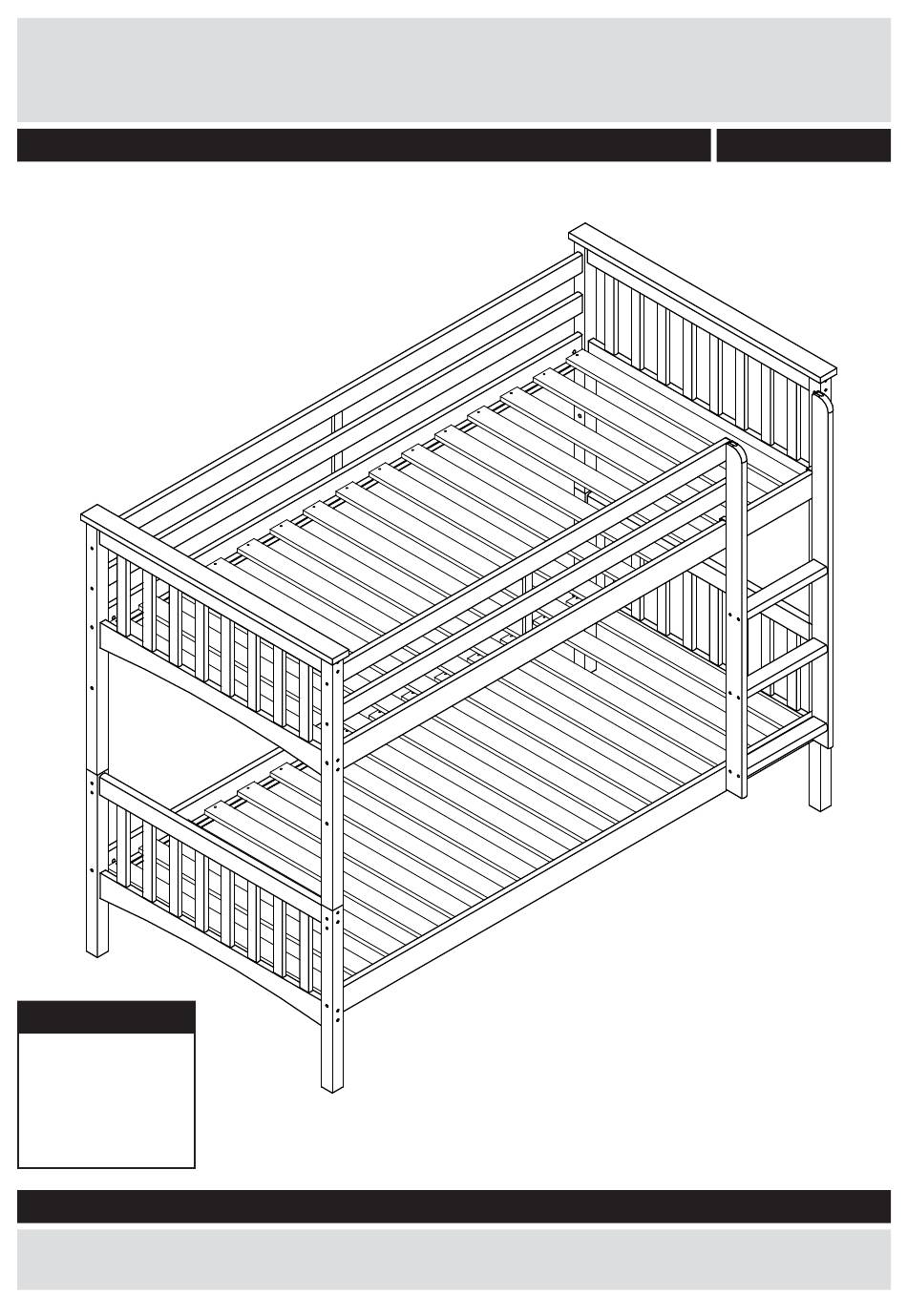

Bunk bed - White
190x90 cm
-
Assembly Instructions
3327199
- Please keep for future reference
Dimensions
Length - 197cm
Depth - 103cm
Height - 148cm
Weight - 43,5kg
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
0045 7668 8055 or e-mail: order@fl exa.dk
Issue 3 - 02/11/15
Advertisement
Related Manuals for Flexa 3327199
Summary of Contents for Flexa 3327199
- Page 1 Bunk bed - White 190x90 cm Assembly Instructions 3327199 - Please keep for future reference Dimensions Length - 197cm Depth - 103cm Height - 148cm Weight - 43,5kg Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0045 7668 8055 or e-mail: order@fl...
-
Page 2: Maintenance Instructions
Safety and Care Advice Important – Please read these instructions fully before starting assembly • We do not • Check you have all the • Do not stand or put weight on recommend the components and tools listed on the product, this could cause use of power pages 2, 3 and 4. -
Page 3: Components - Parts
If you have damaged or missing components, Components - Parts call the Customer Helpline: 0045 7668 8055 Please check you have all the parts listed below List for safety rails. x2 Leg x4 Leg x4 (61.8.7x4.3x4.3cm) (84.5x4.3x4.3cm) (32.2x2.8x1.2cm) No. 12-04306181-20 No. - Page 4 Components - Parts Please check you have all the parts listed below Bedside rail x4 (186.7x8.9x2.0cm) No. 1305-18673-20 Safety rail 3/4 x2 (152.9x6.5x2.0cm) No. 12-02015291-20 Safety rail 1/1 x2 (186.7x6.5x2.0cm) No. 12-02018673-20...
- Page 5 Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. No. 3922-06014 No. 3901-45040 No.
- Page 6 Assembly Instructions Step 1 Insert dowels bedsides – and to all the safety rails . Insert dowels crossbars and top rails It may be necessary to tap the dowel in very gently with a small hammer. Step 2 Insert the connecting double bolts to all the short legs...
- Page 7 Assembly Instructions Step 3 Attach top rail endrail by pushing the dowels in top rail into the holes in endrail and fasten with 4 screws . Don’t tighten too hard. Step 4 Insert cross bars into the grooves in endrail and push the dowels into the holes in endrail .
- Page 8 Assembly Instructions Step 6 Attach bedside both safety rails the bed by placing the dowels into the holes in legs Push barrel nuts into the 2 small holes in bedside . Push 1 connecting bolt through each leg meet barrel nuts then fasten with the allen key.
- Page 9 Assembly Instructions Step 9 Attach legs endrails with screws . Fasten with the allen key. After attaching the legs, adjust the crossbars by pulling them downwards out of the groove in endrail until there is no gap between endrail and crossbars Step 10 Attach bedside the bed by placing the...
- Page 10 Assembly Instructions Step 12 Attach the 2 beds by placing one bed on top of the other. Attach the connecting double bolts in legs to the upper bed by fastening them with screws through holes in legs Step 13 Push 2 assembly screws through holes in legs and attach the safety rails...
- Page 11 Assembly Instructions Step 15 Attach the assembled ladder to the bed. Using brackets attached in the previous step, attach the ladder to bedsides . Secure safety rails to the ladder with screws . Secure the brackets with screws . Fasten angled bracket attached in the previous step to leg...
- Page 12 Assembly Instructions Step 17 63 mm Position the remaining 12 slats in the bed with a distance of 63 mm between each. Fasten each slat with 2x chipboard screws Step 18 Max mattress height ! Attach the safety list to the inner side of the safety rails using screws...
- Page 13 Assembly Instructions Bunkbed as 2 single beds Note: The two sections can also be used as two single beds, as shown in the picture. If you need help or have damaged or missing parts, call the Customer Helpline: 0045 7668 8055 E-mail: order@fl...
