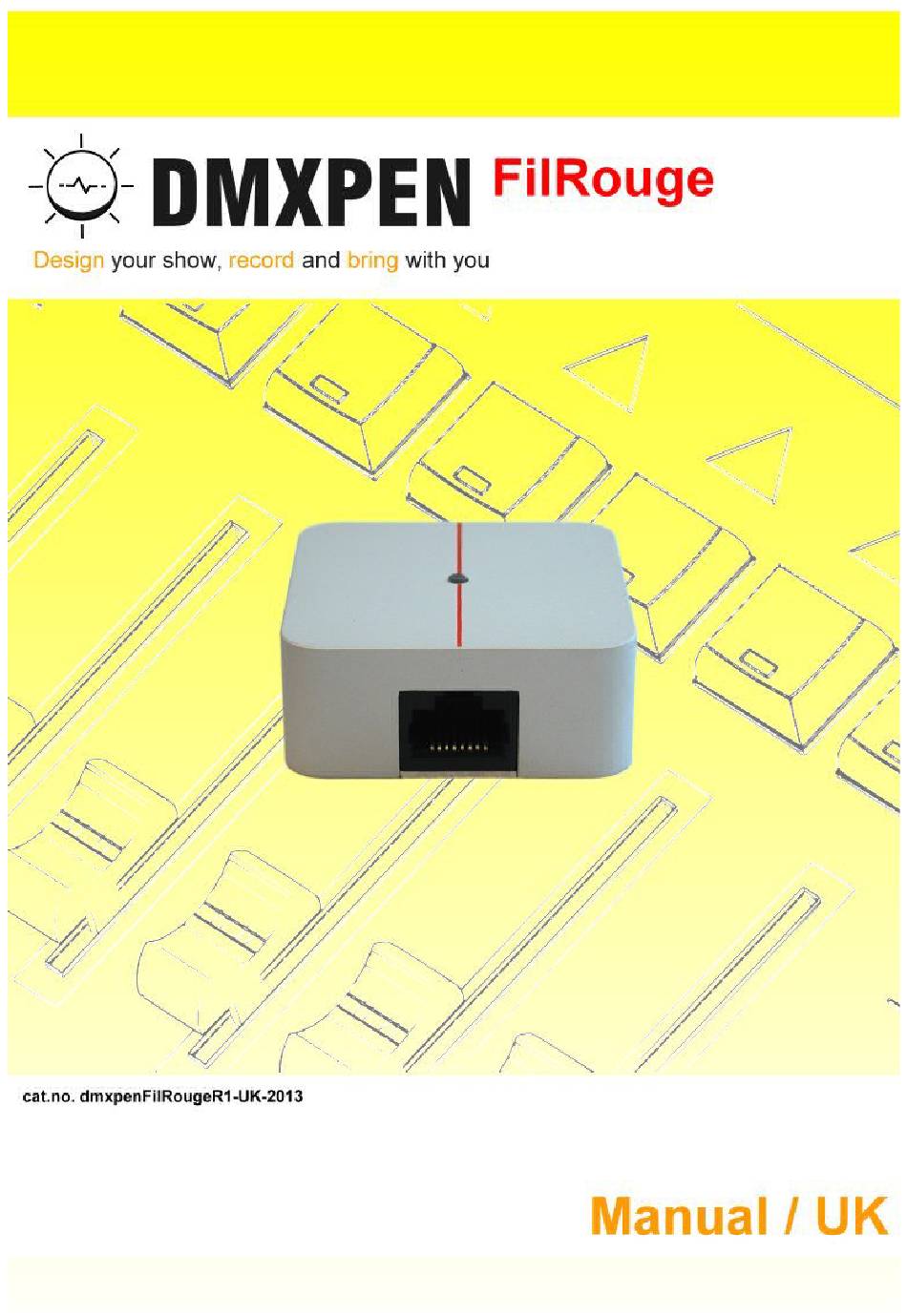

- Page 1 Manual / UK DMXPEN FilRouge...
-
Page 2: Table Of Contents
INDEX Introduction..............page Warnings............... page Description..............page Setup / Connections............page Technical Specifications..........page PIN Assignment ............page Device Programming and Usage ........page Device MIDI Control ............page Warranty............... page Maintenance / Cleaning..........page Manual / UK DMXPEN FilRouge... -
Page 3: Introduction
INTRODUCTION Thanks for buying this DMXPen series product. The correct use of this product, will ensure a correct functionality, a long life and will avoid product failure. Please read this manual carefully and be sure to understand the information provided to ensure a safe and reliable application. -
Page 4: Warnings
WARNINGS This manual describes the DMXPEN FilRouge operating functions. The user must operate the product according to the performance specifications described in the operation manual. While every effort has been made to ensure that the information on this manual is accurate and complete, we would appreciate any errors or omissions submitted to our attention. -
Page 5: Description
Playback recorded shows. Most of the time users are very unfamiliar with such products; FilRouge for its essence will do away with all theses fears and will reassure users to have a more familiar approach. (i.e. bar-tenders, custodians, etc.) FilRouge’s for its compactness is a very attractive and fashionable device as the case is the... -
Page 6: Set Up/Connections
FilRouge set up depends on the usage type: Programming/USB-DMX conversion : using an Apple ® Camera Kit (not included in the package), connect FilRouge to iPAD using the USB cable provided and to the DMX line using the RJ45-XLR 5 Pole Female cable provided. - Page 7 5 VDC – 200 mA MIDI USB Port Opto coupled 0-5VDC NPN Digital Inputs (activation with connection to GND) EN 55022, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, standard reference EN 61000-4-6, EN 61000-4-11, EMC 89/336/CEE, BT 73/23/CEE Manual / UK DMXPEN FilRouge...
-
Page 8: Pin Assignment
PIN ASSIGNMENT MINI USB TYPE B RJ45 Description VBUS Description DMX- DMX+ INPUT-COMMON INPUT4 INPUT3 INPUT2 INPUT1 RJ45 Plug wiring example Manual / UK DMXPEN FilRouge... -
Page 9: Device Programming And Usage
RJ45 connector. This operation will automatically trigger the integrated stand-alone playback of FilRouge that will be retained on power off. When power is turned on, FilRouge will trigger again the last running sequence For an accurate app description we recommend you should view the tutorial which is available on the www.dmxpen.com... - Page 10 MIDI TO DMX512A CONVERSION FilRouge can also be operated via MIDI using the standard USB port. FilRouge can be connected to both Apple ® iPAD as well as to a MAC or a PC, to this regard the use of one of the software available on the market it may operate and may generate MIDI Control Change command.
-
Page 11: Warranty
Always make sure to unplug the device from the power supply during maintenance and cleaning operation. Use only dry cleaning cloth to clean DMXPen FilRouge. Do not use cleaning solvent or washing powder as it may impaired your items. Manual / UK... - Page 12 Designed by and Copyright Artistic Licence (UK) Ltd. Manual / UK DMXPEN FilRouge...
