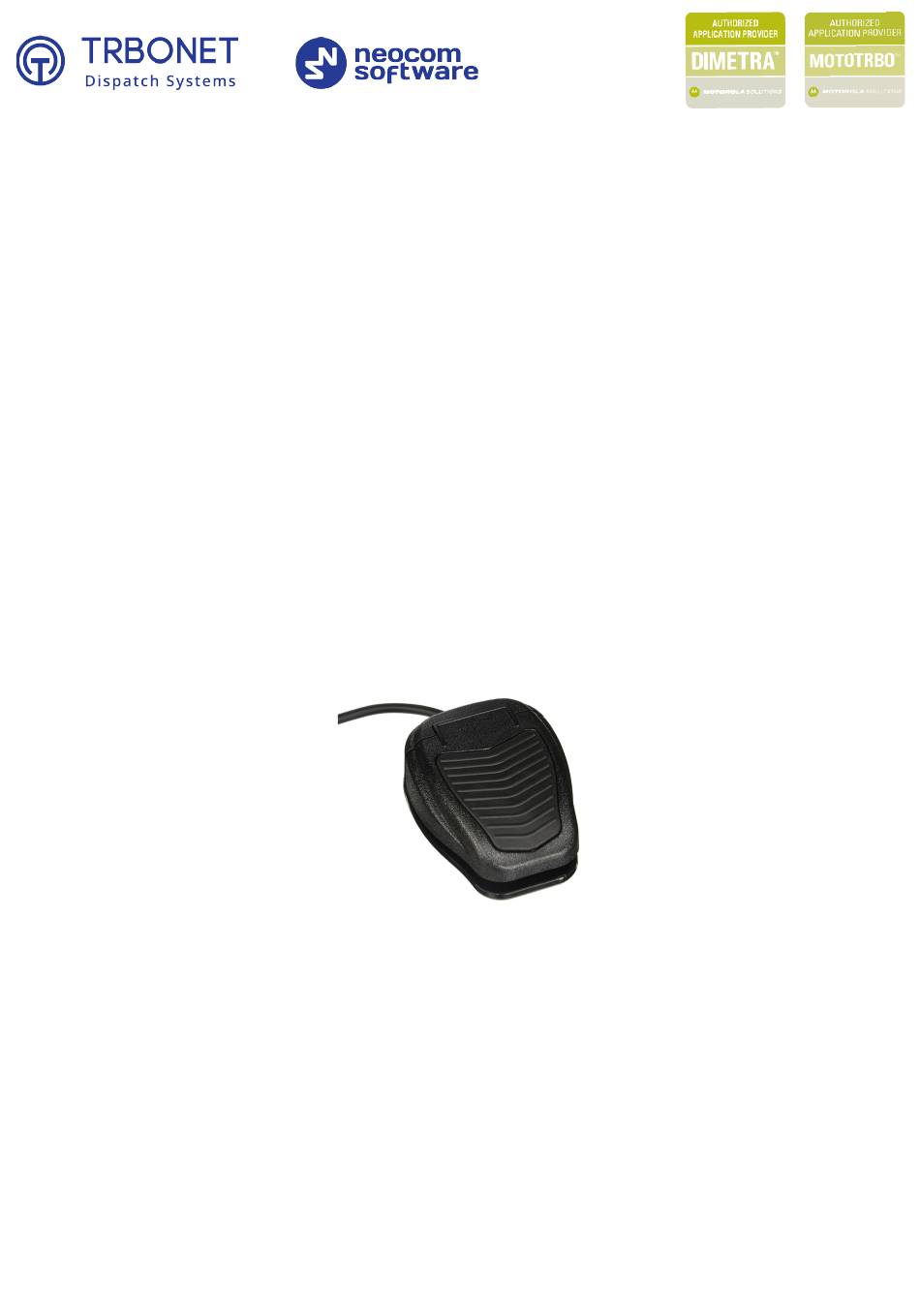

- Page 1 TRBOnet Swift Footswitch P001 User Guide USA Office Sales www.trbonet.com Neocom Software EMEA: +44 203 608 0598 info@trbonet.com 150 South Pine Island Rd., Suite 300 Americas: +1 872 222 8726 APAC: +61 28 607 8325 Plantation, FL 33324, USA...
- Page 2 This document is for informational purposes only. Neocom Software offers no warranties, express or implied, in this document. Neocom and the Neocom logo, TRBOnet and the TRBOnet logo are either registered trademarks or trademarks of Neocom Software, Ltd. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC.
-
Page 3: Table Of Contents
Contents Introduction ........................1 Technical features ....................1 Configuration in TRBOnet Enterprise ................2 Connecting via COM-port ..................2 Connecting via USB-port ..................4 Connecting via USB-port using M002 adapter ............ 5 Associating with PTT boxes ................... 7... -
Page 4: Introduction

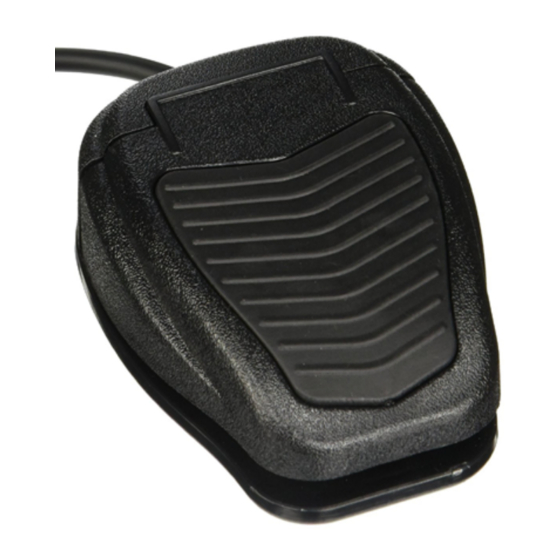

TRBOnet Swift Footswitch P001 — User Guide Introduction The TRBOnet Swift Footswitch P001 (hereinafter "footswitch") allows the dispatcher to push and release the PTT button while their hands are free. There are three design versions of the footswitch: with RS-232, RJ-45, or USB connectors. -
Page 5: Configuration In Trbonet Enterprise
• In the Options dialog box, select the Hardware tab. • In the External Devices section, click the Add link and from the drop- down menu select TRBOnet Footswitch (RS232). The TRBOnet Footswitch dialog box appears on top of the Options dialog box. 2 Configuration in TRBOnet Enterprise... - Page 6 TRBOnet Swift Footswitch P001 — User Guide Name Enter the name of the footswitch device. Device From the drop-down list, select COM3. The Footswitch PTT button appears in the table below. Press the footswitch button and see if the indicator box becomes ...
-
Page 7: Connecting Via Usb-Port
Connecting via USB-port This section describes how to connect the footswitch to the PC via a USB-port and configure required parameters in TRBOnet Dispatch Console. • Connect the footswitch to a USB-port of the PC. • Run TRBOnet Dispatch Console. -
Page 8: Connecting Via Usb-Port Using M002 Adapter
TRBOnet Swift Footswitch P001 — User Guide • In the External Devices section, click the Add link and from the drop- down menu select TRBOnet Footswitch (USB). The TRBOnet Footswitch dialog box appears on top of the Options dialog box. Name ... - Page 9 HID. The HID dialog box appears on top of the Options dialog box. Click the Add link. One more dialog appears on top: • Name Enter the name of the button. 2 Configuration in TRBOnet Enterprise...
-
Page 10: Associating With Ptt Boxes
Associating with PTT boxes • In the Radio Interface pane, right-click on a PTT box for which you want to use the TRBOnet footswitch, and on the context menu, select Specify External PTT > [Device Name]. 2.4 Associating with PTT boxes...
