Assembly Directions for
Garden Classic Table
PACKAGE CONTENTS
1
Top
2
Bases
1
Cross Support
2
Footrests (Bar and Counter Height Only)
1
Hardware Package
1

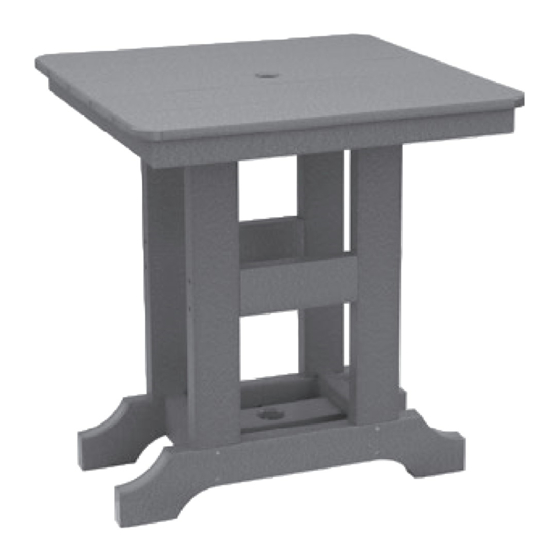

28" Square Table
in Garden Classic Collection
#GCT0028D, #GCT0028C, #GCT0028B
Cordless Drill/Screwdriver
2
3
Use to measure bolts
Top Boards
TOOLS NEEDED:
Hammer
/ " Wrench
7
4
Umbrella
Holder
NOTE: Bar and
Counter Height Only
HARDWARE PACKAGE
8
¼" x 2" Carriage Bolts
8
¼" Flange Nuts
12
3" Screws
2
Umbrella Knobs
CORRECT
5
Firmly tap bolts into pre-drilled
holes before tightening.
INCORRECT
Advertisement
Table of Contents
Related Manuals for DutchCrafters GCT0028D
Summary of Contents for DutchCrafters GCT0028D
- Page 1 Assembly Directions for 28" Square Table in Garden Classic Collection #GCT0028D, #GCT0028C, #GCT0028B Umbrella Holder Garden Classic Table NOTE: Bar and Counter Height Only Top Boards PACKAGE CONTENTS HARDWARE PACKAGE TOOLS NEEDED: Hammer ¼" x 2" Carriage Bolts / " Wrench Bases ¼"...
- Page 2 STEP #1 - Fasten the rst base to the aluminum frame of the top using 4- ¼ " x 2" carriage bolts. ¼ " x 2" Carriage Bolts First fasten the cross support to the base using STEP #2 - 3"...
