This manual provides information intended for use by persons who, in accordance with current
regulatory requirements, are qualified to install this equipment. It is a supplement to the MD23
Installation Manual and Operating Instructions, p/n 9019161.
If further information is required, please contact Mid-Continent Instruments and Avionics.
Mid-Continent Instruments and Avionics
User Guide UG104
Revision 1
User Guide
MD23-104
True Blue Power
Gen5 Lithium-ion Battery Monitor
powered by
Initial release.
For
Detail
Mid-Continent Instrument Co., Inc.
dba Mid-Continent Instruments and Avionics
9400 E. 34th Street N.
Wichita, KS 67226 USA
ph
(800) 821-1212
www
mcico.com
Approved
BAW
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midcontinent MD23-104
Summary of Contents for Midcontinent MD23-104
- Page 1 User Guide MD23-104 True Blue Power Gen5 Lithium-ion Battery Monitor powered by Date Detail Approved 01/04/2022 Initial release. This manual provides information intended for use by persons who, in accordance with current regulatory requirements, are qualified to install this equipment. It is a supplement to the MD23 Installation Manual and Operating Instructions, p/n 9019161.

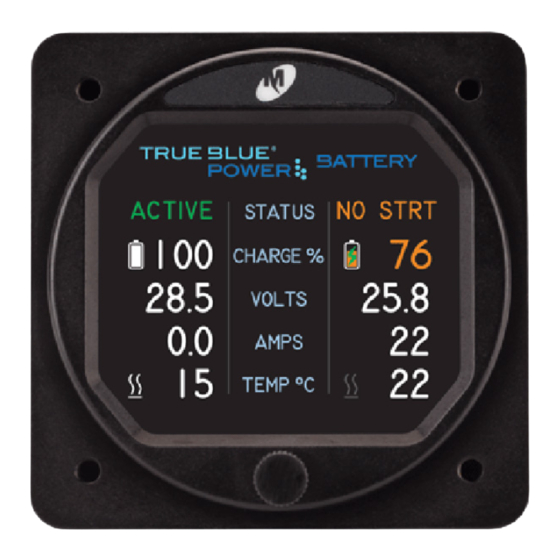

- Page 2 User Guide INTRODUCTION The model MD23-104 battery monitor is specifically designed for the True Blue Power Gen5 Advanced Lithium-ion batteries series. This standard 2-inch (2-¼”) panel-mounted instrument displays key performance and status data from either one or two Gen5 batteries. Based on Mid-...
- Page 3 MD23-104 User Guide CONNECTOR PINOUT For standard pre-installation and installation instructions, including location, cable harness assembly, pneumatic inputs (if applicable), mounting, and others, please refer to the IM. Pinout identification specific to this CID is listed in the table below. A brief description is provided.
- Page 4 MD23-104 User Guide CONFIGURATION AND SETUP Enter Configuration Mode by pressing and holding the Control Knob while applying power to the unit. For configuration and setup of standard unit functions, including dimming control options and dimming curve definition, please refer to the IM.
- Page 5 MD23-104 User Guide (page 1 – one battery) (page 2 – one battery) (page 1 – two batteries) (page 2 – two batteries) Individual elements are defined as follows: Page 1 o Status: Displays battery status: Active, Fault, Service, Invalid, or No Start o Charge %: Displays current state of charge.
- Page 6 MD23-104 User Guide USER OPTIONS Pressing and holding the Control Knob for three (3) seconds will activate the Options Menu. The manual brightness adjustment and info page are described in the IM. The Options Menu or User Options items will close and return to the active display after five (5) seconds if no activity is recorded.
