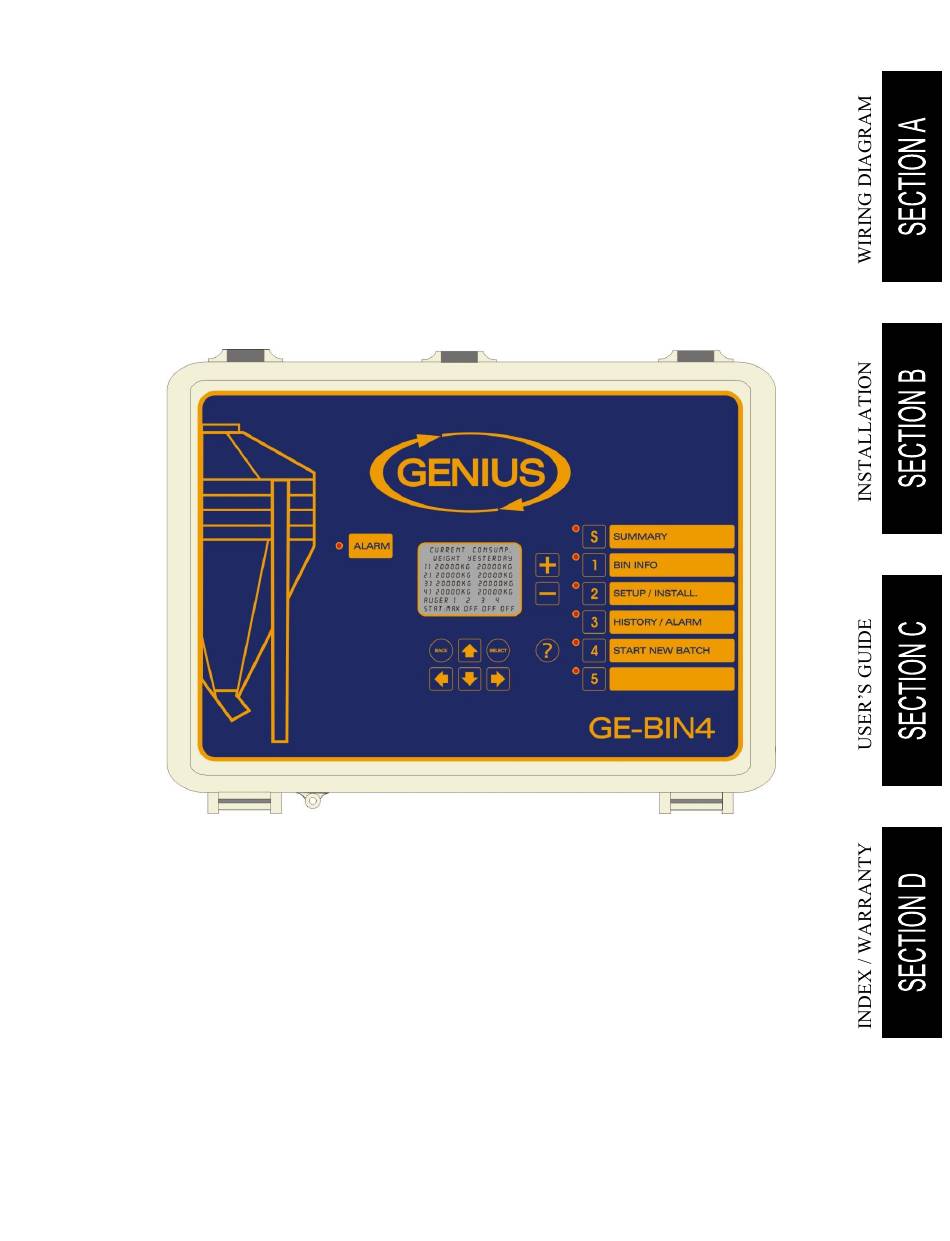

- Page 1 GE-BIN4 MANUAL Installation / User’s Guide ATTENTION ELECTRICIAN SEE WIRING DETAILS ON PAGES A-3 TO A-6 AND ADDITIONAL INFORMATION IN SECTION B www.monitrol.com...
-
Page 2: Warnings And Precautions
GE-BIN4 WIRING DIAGRAM & LAYOUT WARNINGS AND PRECAUTIONS Although the manufacturer has made every effort to ensure the accuracy of the information contained herein, this document is subject to change without notice due to ongoing product development. WARNINGS AND PRECAUTIONS Equipment, probe failure, blown fuses and/or tripped breakers may prove harmful to the contents of the building. - Page 3 GE-BIN4 WIRING DIAGRAM & LAYOUT WIRING DIAGRAM & LAYOUT GE-BIN4 SECTION A GE-BIN 4 Section A-3 www.monitrol.com...
-
Page 4: Wiring Diagram Ge-Bin4
GE-BIN4 WIRING DIAGRAM & LAYOUT WIRING DIAGRAM GE-BIN4 Section A-4 GE-BIN4 www.monitrol.com... -
Page 5: Wiring Diagram Ge-Fbt / Ge-Lim
GE-BIN4 WIRING DIAGRAM & LAYOUT WIRING DIAGRAM GE-FBT / GE-LIM GE-BIN 4 Section A-5 www.monitrol.com... -
Page 6: Electrician's Notes
GE-BIN4 WIRING DIAGRAM & LAYOUT GE-BIN4 ELECTRICIAN’S NOTES (COMMUNICATION WIRING) SHIELDED LOW CAPACITANCE WIRE, (Capacitance between conductors @ 1Khz = 24pF/ft), TWISTED PAIR (8 twist/ft), AWG #22, 820ft (250m) MAX LENGTH (Ex.: BELDEN 8761). HIGH VOLTAGE WIRE INSTALLED ACCORDING TO LOCAL WIRING CODE. -
Page 7: Typical Installation Layout
GE-BIN4 WIRING DIAGRAM & LAYOUT TYPICAL INSTALLATION LAYOUT GE-BIN 4 Section A-7 www.monitrol.com... -
Page 8: Section B
GE-BIN4 INSTALLATION INSTALLATION GE-BIN4 SECTION B Section B-8 GE-BIN4 www.monitrol.com... -
Page 9: Unpacking
Unpack the GE controller and inspect contents for damage. Should the contents appear to be damaged, contact your local distributor to return the equipment. The package should contain the following standard items: 1 GE-BIN4 Control 4 Brackets / 4 Screws 1 Installation / User’s Guide... -
Page 10: General Installation Guidelines
GE-BIN4 INSTALLATION General installation guidelines GE Controller It is recommended to install the unit in a hallway to limit the GE controller exposure to noxious gases. In order to avoid condensation problems inside the controller, it is recommended to install the GE controller on an inside wall. If it is not possible, use spacers to have an air gap between the wall and the GE controller. -
Page 11: Mounting
GE-BIN4 INSTALLATION Mounting The enclosure must be mounted in a location that will allow the cover to be completely opened. Fasten the four brackets to the four mounting holes on the back of the enclosure using the four screws provided with the brackets. -
Page 12: Connection Procedure
GE-BIN4 INSTALLATION Connection procedure Detailed wiring diagrams Typical Auger Signal Wiring Auger signal sensors (ex.: CSD-1 Current Switch Detector) should be mounted inside the controller enclosure with the auger power wire running through the sensor loop. If a single sensor monitors multiple auger circuit, run the wires from all auger groups the same direction through the sensor loop. -
Page 13: Typical Power Backup Wiring
GE-BIN4 INSTALLATION Typical Power Backup Wiring A backup relay (DPDT) connects to the power source 1 in normal operation but will switch to the power source 2 if source 1 is disabled. The backup relay should be selected to ensure it is able to support the required power load. -
Page 14: Typical Alarm Connection Wiring
GE-BIN4 INSTALLATION Typical alarm connection wiring The GE controller provides a normally open and normally closed dry contact to set off an alarm if the auger runs too long or if a bin weight goes below a set limit condition occurs. -
Page 15: Powering Up Procedure
Adjust the Line Voltage Selection Switch This switch is located on the bottom electronic board and adapts the GE-BIN4 to 115 VAC or 230 VAC line voltage. Set the line voltage switch (115VAC/230VAC) inside the GE-BIN4 to the correct value before powering up the GE-BIN4 control. -
Page 16: Specifications
GE-BIN4 INSTALLATION Specifications Master Control Storage temperature -4°F to 131°F (-20°C to 55°C) Operating temperature 32°F to 122°F (0°C to 50°C) Humidity 90% maximum Non-condensing Weight 3.52 lb (1.6 kg) Size 12 1/4” x 11” x 4 3/4” (32 cm x 28.8 cm x 11.5 cm) -
Page 17: Troubleshooting
Screen is blank Voltage selector setting is Make sure the line voltage inaccurate. selector switch is properly GE-BIN4 is not powered. set. The flat cable between the Make sure the control is main and the top boards of the powered. - Page 18 GE-BIN4 USER’S GUIDE USER’S GUIDE GE-BIN4 SECTION C Section C-18 GE-BIN4 www.monitrol.com...
-
Page 19: Control Description
GE-BIN4 USER’S GUIDE BIN4 USER’S GUIDE BIN4 USER’S GUIDE BIN4 USER’S GUIDE Control Description Control Description Control Description GE-BIN4 BIN4 Section C-19 www.monitrol.com... - Page 20 GE-BIN4 USER’S GUIDE 1. Alarm LED On the left-hand side of the faceplate appears an alarm LED. This LED comes ON whenever the control is in alarm. 2. Back Button The round BACK button allows the users to return to the preceding screen.
-
Page 21: Standard Equipment
GE-BIN4 USER’S GUIDE Standard Equipment Quantity Description Main Board Display Board Additional Equipment Quantity Description PC Com. Board PC Interface GE-FBT (Feed Bin Transmitter) GE-LIM (Lightning Isolator Module) RF-IN2 Configuration Versions Minimum Version Processor Date Modification Version C2V15V0 10/20/2010 New. - Page 22 GE-BIN4 USER’S GUIDE C2V15V8 11/23/2017 Modification of the default value of the Gain and the maximum weight load cell C2V15V9 03/18/2020 - Add support for 8 load cell bin scale modules. - Remove maximum weight calibration. Section C-22 GE-BIN4 www.monitrol.com...
-
Page 23: System Overview
GE-BIN4 USER’S GUIDE System overview The GE-BIN4 can be used to monitor up to 4 GE-FBT (Feed Bin Transmitter) bin measuring modules. Each bin will be monitored for consumption, fills, auger run time and weight. The controller will automatically detect when the bin is filled and use the auger to measure consumption, even when the bin is being filled. -
Page 24: Pre-Initialization
GE-BIN4 USER’S GUIDE PRE-INITIALIZATION SCREEN P R E - I N I T I A L I Z A T I O N W e i g h t U n i t : k g D a t e... -
Page 25: Summary
GE-BIN4 USER’S GUIDE SUMMARY SCREEN C u r r e n t C o n s u m p . W e i g h t Y e s t e r d a y 1 ) 2 0 0 0 0 k g... -
Page 26: Bin Info Menu
GE-BIN4 USER’S GUIDE BIN INFO MENU SCREEN ( % F i l l ) B i n 1 - - ( 8 0 % ) B i n 2 - - ( 5 3 % ) B i n 3... -
Page 27: Bin {1-4} Info
GE-BIN4 USER’S GUIDE BIN {1-4} INFO SUB SCREENS B i n 1 D e t a i l s C u r r e n t W t . : 2 0 0 0 0 k g T o d a y ' s... -
Page 28: Bin {1-4} Details
GE-BIN4 USER’S GUIDE BIN {1-4} DETAILS SUB SCREENS 1-4.1 B i n 1 D e t a i l s L C 1 : ( 1 0 % ) L C 2 : ( 3 2 % ) L C 3 : ( 2 1 % ) -
Page 29: Setup/Install
GE-BIN4 USER’S GUIDE SETUP/INSTALL. SCREEN S e t u p / I n s t a l l . V e r s i o n : C 2 V 1 5 V 9 P r o c e s s o r : 6... - Page 30 GE-BIN4 USER’S GUIDE 10. This parameter is used to identify a WiFarm network. A WiFarm network is formed when the RF NETWORK [9] is set to the same value as the RF ADDRESS [10] of its RF communication card of the controller designated as the network master (ex.
-
Page 31: Bin Setup
GE-BIN4 USER’S GUIDE BIN SETUP SUB SCREEN B i n S e t u p N u m b e r o f B i n s : B i n 1 S e t u p B i n 2 S e t u p... -
Page 32: Bin {1-4} Setup
GE-BIN4 USER’S GUIDE BIN {1-4} SETUP SUB SCREENS .1.1-4 B i n 1 S e t u p T a r e B i n P L E A S E W A I T . . . L a s t T a r e : 1 2 / 1 2 / 2 0 1 0... - Page 33 GE-BIN4 USER’S GUIDE 5. This parameter is used to set the maximum weight the bin can hold. This value will be used to calculate the fill percentage of the bin. If this value is set to “---”, %FILL BIN {1-4} [2] will not be calculated and will also display “---”.
-
Page 34: Auger Setup
GE-BIN4 USER’S GUIDE AUGER SETUP SUB SCREEN A u g e r S e t u p A u g e r 1 S e t u p A u g e r 2 S e t u p A u g e r 3 S e t u p A u g e r 4 S e t u p Some parameters may not appear if their corresponding option is not activated. -
Page 35: Auger {1-4} Setup
GE-BIN4 USER’S GUIDE AUGER {1-4} SETUP SUB SCREENS .2.1-4 A u g e r 1 S e t u p l b p e r m i n u t e : M a x R u n T i m e A l m : Y e s... -
Page 36: Date/Time/Code
GE-BIN4 USER’S GUIDE DATE/TIME/CODE SUB SCREEN T i m e F o r m a t : A M / P M A d j u s t C l o c k : 1 2 : 0 8 P... -
Page 37: Change Weight Unit
GE-BIN4 USER’S GUIDE CHANGE WEIGHT UNIT SUB SCREEN A c t U n i t : k g C h a n g e t o : l b C h a n g e U n i t 1. This parameter displays the weight unit actually used by the controller. -
Page 38: Confirm Change Weight Unit
GE-BIN4 USER’S GUIDE CONFIRM CHANGE WEIGHT UNIT SUB SCREEN .4.1 ! ! ! W a r n i n g ! ! ! Y o u r w e i g h t s e t t i n g s... -
Page 39: History / Alarms
GE-BIN4 USER’S GUIDE HISTORY / ALARMS SCREEN H i s t o r y / A l a r m s A l a r m L o g B i n 1 H i s t . B i n 2 H i s t . -
Page 40: Alarm Log
GE-BIN4 USER’S GUIDE ALARM LOG SUB SCREEN A l a r m L o g C L R N o v 1 1 - > 2 2 : 0 8 C o m m . E r r . B i n 1 N o v 1 1 - >... -
Page 41: Bin {1-4} Hist
GE-BIN4 USER’S GUIDE BIN {1-4} HIST. SUB SCREENS .2-5 B i n 1 H i s t . B i n W e i g h t C o n s u m p t i o n F i l l i n g I n f o A u g e r S t a t e Some parameters may not appear if their corresponding option is not activated. -
Page 42: Bin {1-4} Weight
GE-BIN4 USER’S GUIDE BIN {1-4} WEIGHT SUB SCREENS .2-5.1 B i n 1 W e i g h t C L R < 0 > 1 0 2 0 3 0 4 0 5 0 D a t e N o v 1 1... -
Page 43: Bin {1-4} Consumption
GE-BIN4 USER’S GUIDE BIN {1-4} CONSUMPTION SUB SCREENS .2-5.2 B i n 1 C o n s u m p . C L R < 0 > 1 0 2 0 3 0 4 0 5 0 D a t e... -
Page 44: Bin {1-4} Filling Info
GE-BIN4 USER’S GUIDE BIN {1-4} FILLING INFO SUB SCREENS .2-5.3 B i n 1 F i l l I n f o C L R < 0 > 1 0 2 0 3 0 4 0 5 0 D a t e... -
Page 45: Bin {1-4} Auger State
GE-BIN4 USER’S GUIDE BIN {1-4} AUGER STATE SUB SCREENS .2-5.4 B i n 1 A u g e r C L R < 0 > 1 0 2 0 3 0 4 0 5 0 D a t e T i m e O n... -
Page 46: Start New Batch
GE-BIN4 USER’S GUIDE START NEW BATCH SCREEN S t a r t N e w B a t c h B i n 1 S t a r t B i n 2 S t a r t B i n 3 S t a r t B i n 4 S t a r t Some parameters may not appear if their corresponding option is not activated. -
Page 47: Bin {1-4} Start
GE-BIN4 USER’S GUIDE BIN {1-4} START SUB SCREENS .1-4 * * * W A R N I N G * * * T h i s w i l l e r a s e t h e h i s t o r y f o r t h e b i n . -
Page 48: Mchip Detected
GE-BIN4 USER’S GUIDE MCHIP DETECTED SCREEN - - U p l o a d / D o w n l o a d - - * * M C H I P D e t e c t e d * * * D N L D C o n f i g . -
Page 49: Change Language
GE-BIN4 USER’S GUIDE CHANGE LANGUAGE SCREEN C h a n g e L a n g u a g e t o : F r a n ç a i s C a n c e l C h a n g e 1. -
Page 50: Alarm Message Table
GE-BIN4 USER’S GUIDE Alarm message table Messages Probable Causes “ Comm. Err. - The mentioned bin module is activated and has not communicated with the GE- Bin {1-4} BIN4 controller for a 5-minute period. ” Check GE-FBT “ - The mentioned bin’s GE-FBT module cannot provide a stable weight value. -
Page 51: Section D
GE-BIN4 INDEX / WARRANTY INDEX / WARRANTY GE-BIN4 SECTION D GE-BIN4 Section D-51 www.monitrol.com... -
Page 52: Table Of Contents
GE-BIN4 INDEX / WARRANTY TABLE OF CONTENTS Section A WARNINGS AND PRECAUTIONS .................. 2 Wiring diagram GE-BIN4 ....................4 Wiring diagram GE-FBT / GE-LIM ..................5 Electrician’s notes ........................ 6 Typical Installation Layout ....................7 TABLE OF CONTENTS Section B Unpacking .......................... - Page 53 GE-BIN4 INDEX / WARRANTY TABLE OF FIGURES Section B FIGURE NO. 1 Mounting Position and Devices ............. 11 FIGURE NO. 2 Typical Auger Signal Wiring..............12 FIGURE NO. 3 Typical Power Backup Wiring .............. 13 FIGURE NO. 4 Typical Alarm Connection Wiring ............14 FIGURE NO.
-
Page 54: Limited Warranty
GE-BIN4 INDEX / WARRANTY Limited Warranty The manufactured equipment and supplied components have gone through rigorous inspection to assure optimal quality of product and reliability. Individual controls are factory tested under load, however the possibility of equipment failure and/or malfunction may still exist. - Page 55 www.monitrol.com...
- Page 56 GE-BIN4 VER:1.9 March 18, 2020 www.monitrol.com...
