To setup Tango M2 with the Viasys Vmax Encore, simply follow the directions below.
* Note: You must use a Tango M2 monitor with an internal ECG board.

1. Verify Correct RS-232 and ECG Trigger Cables

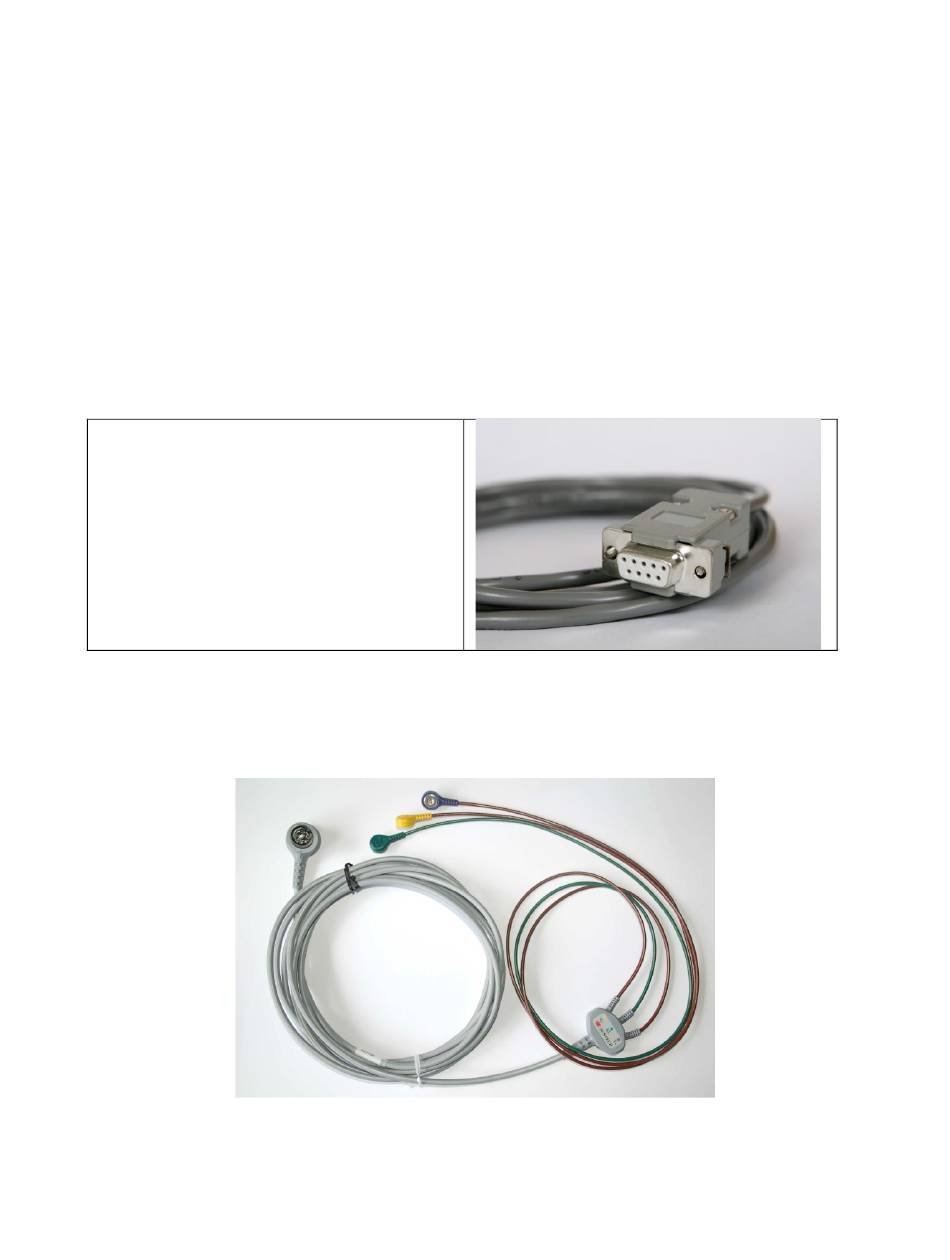

• RS-232 Cable – used to communicate with the Encore. This cable enables the Vmax Encore to
prompt Tango M2 when it needs a BP measurement, and allows the Tango M2 BP reading to be
transferred to the Vmax Encore display and reports.
o Sensormedics Part Number = 464695
o Connection Ends:
Vmax Encore Connection
• ECG Trigger Cable – provides the ECG signal from the Vmax Encore to the Tango M2.
o SunTech Part Number = 91-0004-00 ( lead ECG cable – pictured below)
o OR Sensormedics Part Number = 772539 (Picture not available)
Viasys Vmax Encore – Tango M2 Interface Notes
Viasys Vmax Encore
Tango M2 Interface Notes
NO PICTURE
Tango M2 Connection
9 pin female
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vmax Encore and is the answer not in the manual?

Questions and answers

Related Manuals for VIASYS Vmax Encore

Summary of Contents for VIASYS Vmax Encore

  • Page 1 1. Verify Correct RS-232 and ECG Trigger Cables • RS-232 Cable – used to communicate with the Encore. This cable enables the Vmax Encore to prompt Tango M2 when it needs a BP measurement, and allows the Tango M2 BP reading to be transferred to the Vmax Encore display and reports.
  • Page 2 COM 2 port (if occupied, COM 1) on the back of the stress system 3. Connect the ECG Trigger Cable *To connect the Tango M2 to the ECG trigger of the Vmax Encore, you must use a Tango M2 monitor with an internal ECG board.
  • Page 3 1. When the operating screen is displayed, press the SELECT button once. This will bring up the Main Menu screen. 2. Using the UP or DOWN arrows, highlight Monitor Setup and press the SELECT button. Viasys Vmax Encore – Tango M2 Interface Notes Page 3 of 4...
  • Page 4 4. Tubing, Tee pieces, and miscellaneous connectors or you can order the T-Tube Kit (SunTech Part # 98-0030-00). Service Centers: SunTech Medical, Inc. 507 Airport Boulevard Suite 117 Morrisville, NC 27560-8200 Phone: +1.919.654.2300 +1.800.421.8626 (toll free within US) Fax: +1.919.654.2301 Email: CustomerService@SunTechMed.com Viasys Vmax Encore – Tango M2 Interface Notes Page 4 of 4...
