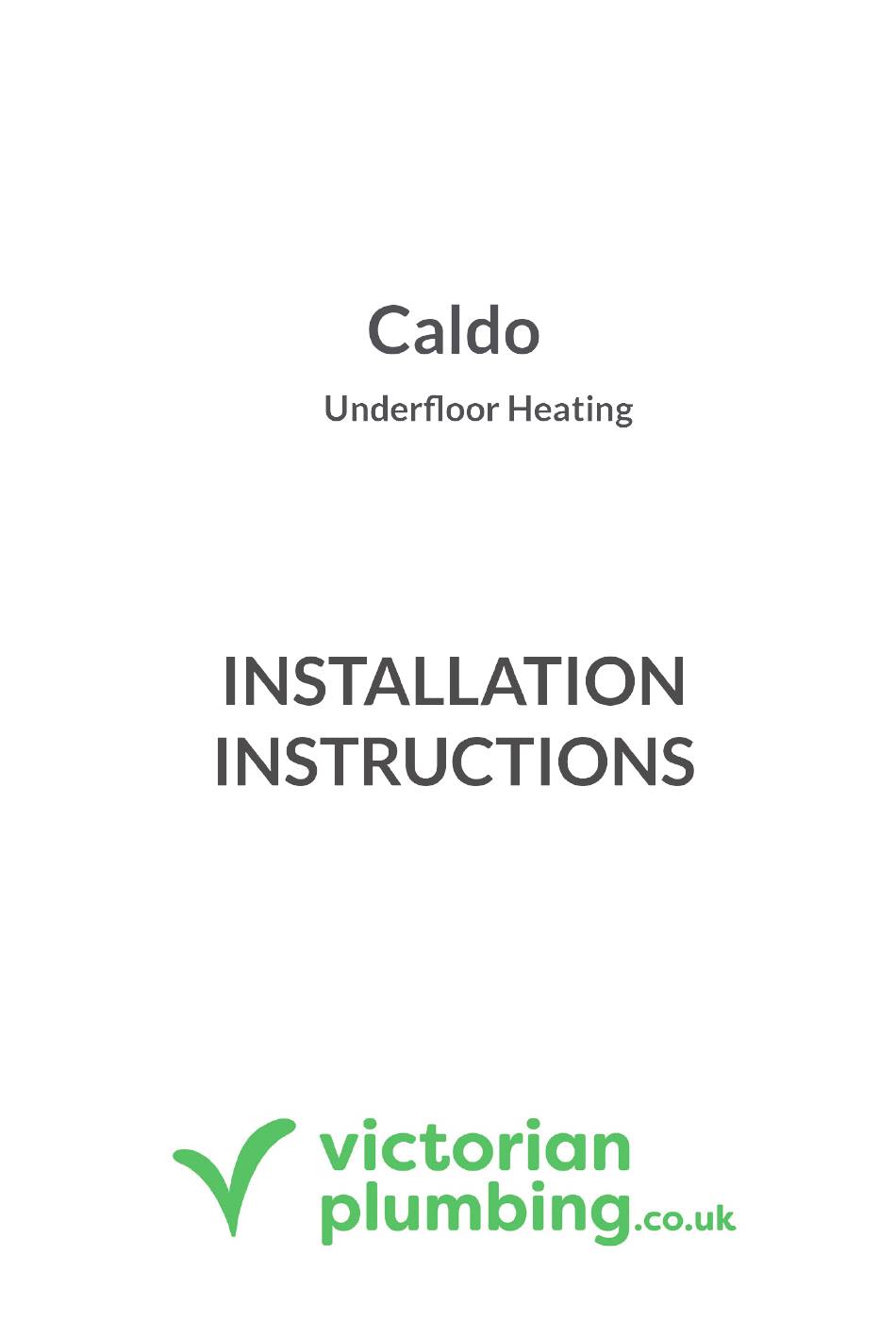

Summary of Contents for Victorian Plumbing Caldo
-
Page 7: Display Symbols
ET-81 PROGRAMMABLE TIMERSTAT INSTRUCTIONS Technical Specification The ET-81 is a smart Timerstat used to control your electric underfloor heating system to Supply voltage: 85-265V 50/60Hz minimise energy use. Maximum switching current: 15A/3.3KW Standby power: < 1W IP21 Display Symbols Day: Clock: ON/OFF: Period:... -
Page 8: Holiday Mode
Set the Time In ‘on’ mode, press ◯ and time will be displayed. Press △ or ▽ to set day. Press ◯ to confirm and enter hour set. Press ◯ again to enter day set. △ ▽ ◯ Press to set hour. press again to revert to normal screen. - Page 9 Troubleshooting - Fault Codes E1 = Built-in sensor short-circuit or disconnected. Note: The floor sensor resistance should be in the E2 = Floor sensor damaged/disconnected/clamped on range of 10K Ohms - please check. to insulation or incorrect floor sensor installed. Dimensions Advanced Settings Note: These are normally set by the installer.
-
Page 10: Wiring Instructions
Wiring Instructions Notes On Advanced Settings Temp calibration: Calibrate the temp detected by room sensor or floor sensor. Anti-frozen function: This option allows you to prevent your room freezing in really cold weather. Sensor select: Room sensor: Run by room sensor. Floor sensor: Run by floor sensor. Both sensors: Run by room sensor with floor temp limit.
